Boom:

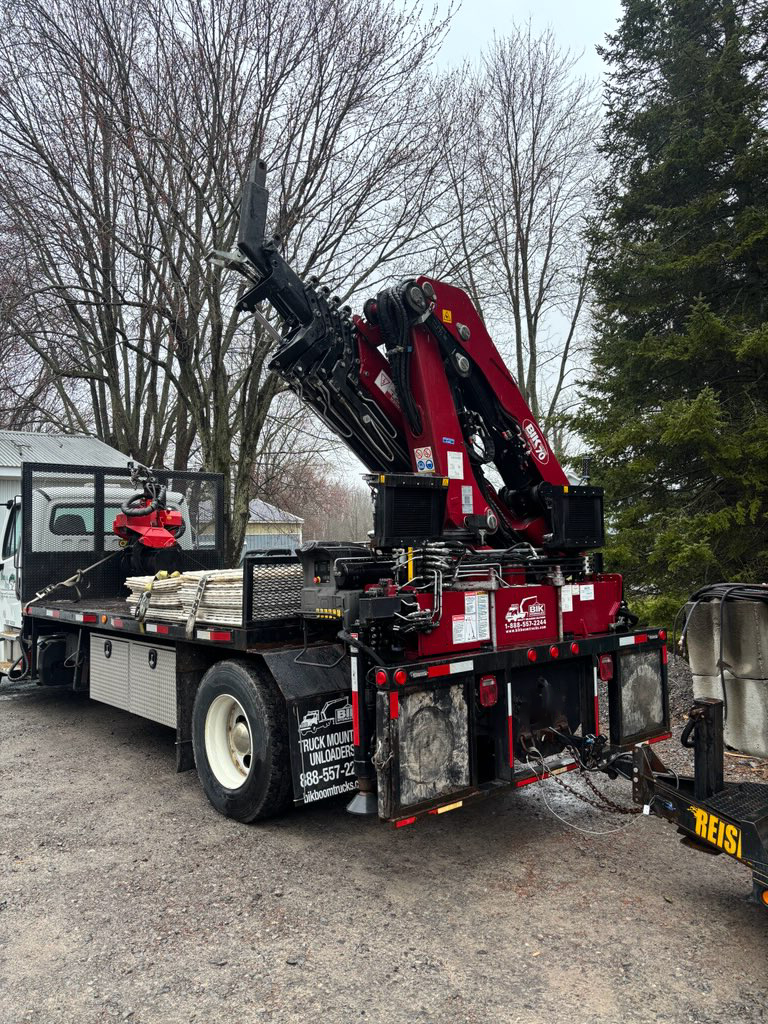

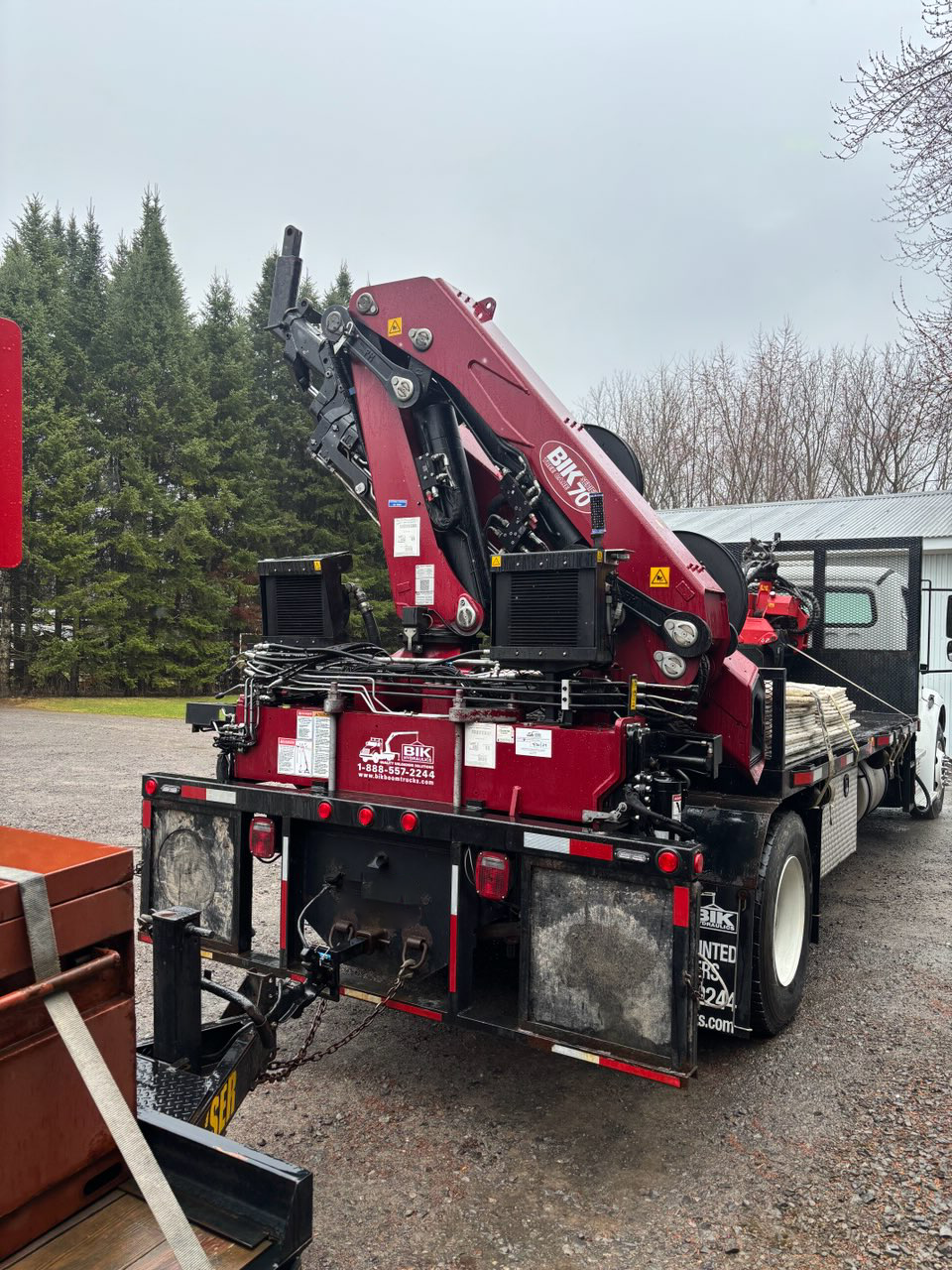

Pre-owned – BIK Tree-Care Series TC-78 (23.5 ton/ml Knuckle Boom by PM: 7-hydraulic extensions to 78’ vertical) w/extra grapple extn
- Vertical Reach of 70’
- Handles 3,800 lbs @ 70’ Vertical
- HORIZONTAL Capacities:
- 9,800 lb @ 14’
- 5,900 lb @ 20’
- 4,330 lb @ 26’
- 2,560 lb @ 40’
- 1,750 lb @ 55’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls – single sided operator control station, Load Holding Valves on all cylinders
- PM Power–Tronics electronic monitoring & load control with Stabilizer deployments sensors & didgital read-out on the remote
- SCANRECO Radio Remote Control
- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21’ 6” span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
- 15 degree negative angle on folding arm – Hydraulic Overload Protection – simplified sysTem that prevents boom from overload
- Two functions plumbed to end of 6th extn, – Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear
- Installed at rear on integral sub base / torque box, Engineer certified stability inspection & certificate
Deck:

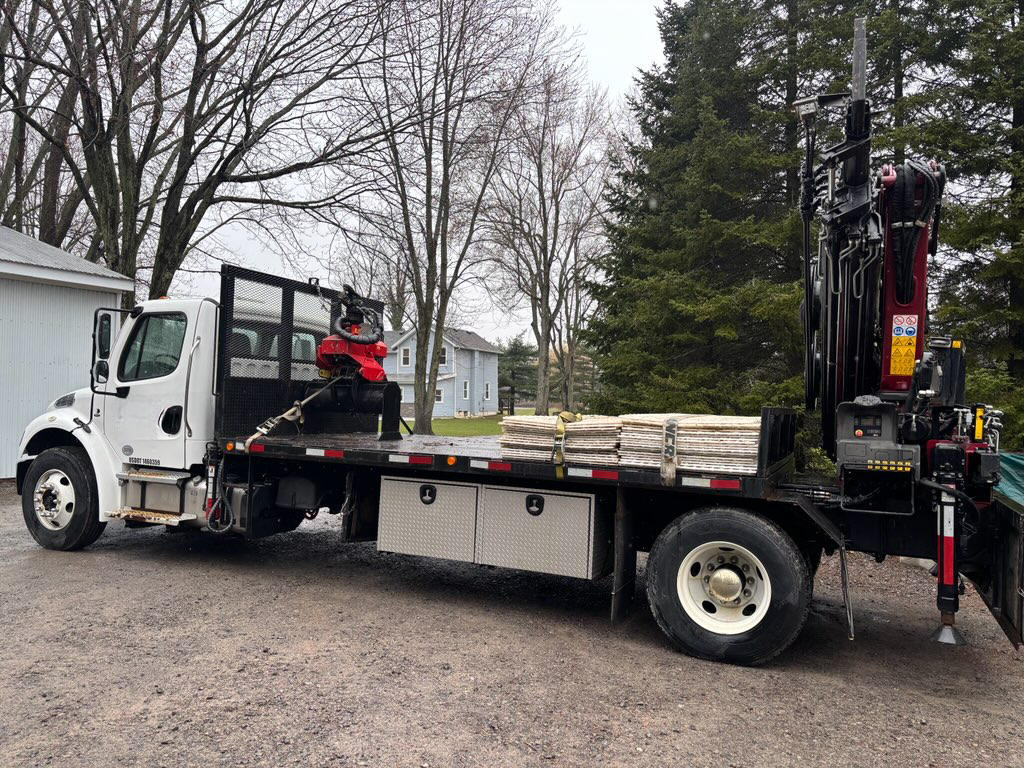

14′ 6″ x 102″ Steel Deck Body
- 60″ steel headboard
- Steel checker plate deck surface
- Main sil X-braces & support
- 2-Deck access Ladders at Headboard
- 2-Ladders at rear, reflectors and Mud-flaps
- 6 – Sliding Winches and track under deck
- Painted black
Truck:

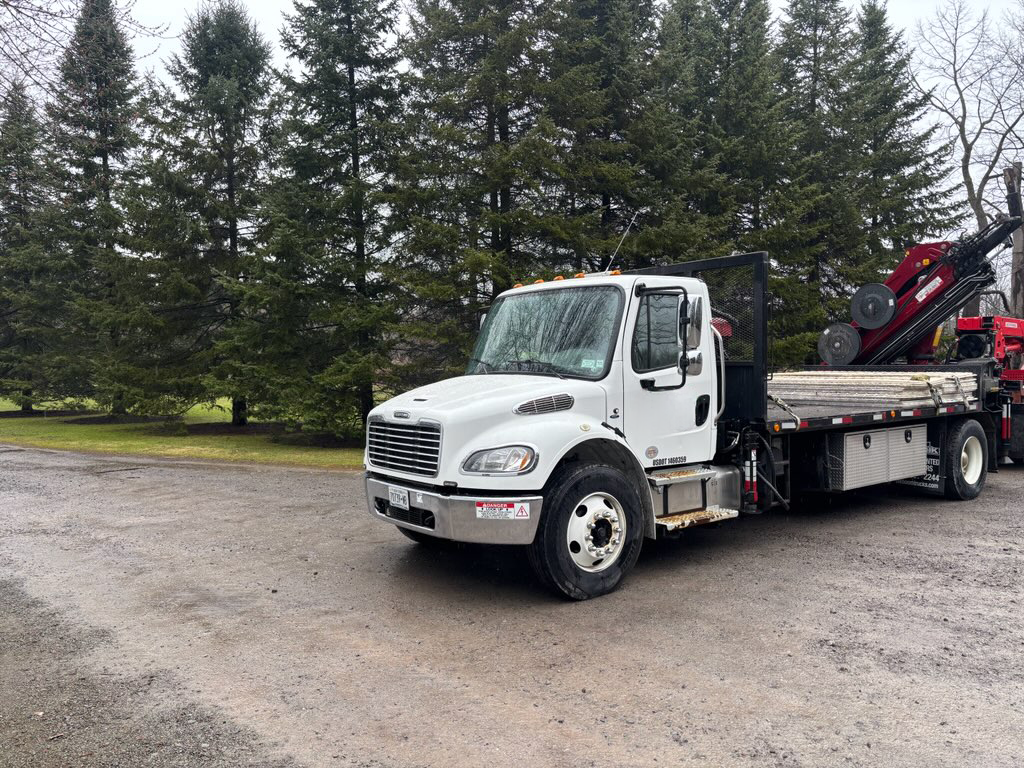

2020 Freightliner M2-106 2- axle Truck – 33,000 lb GVWR

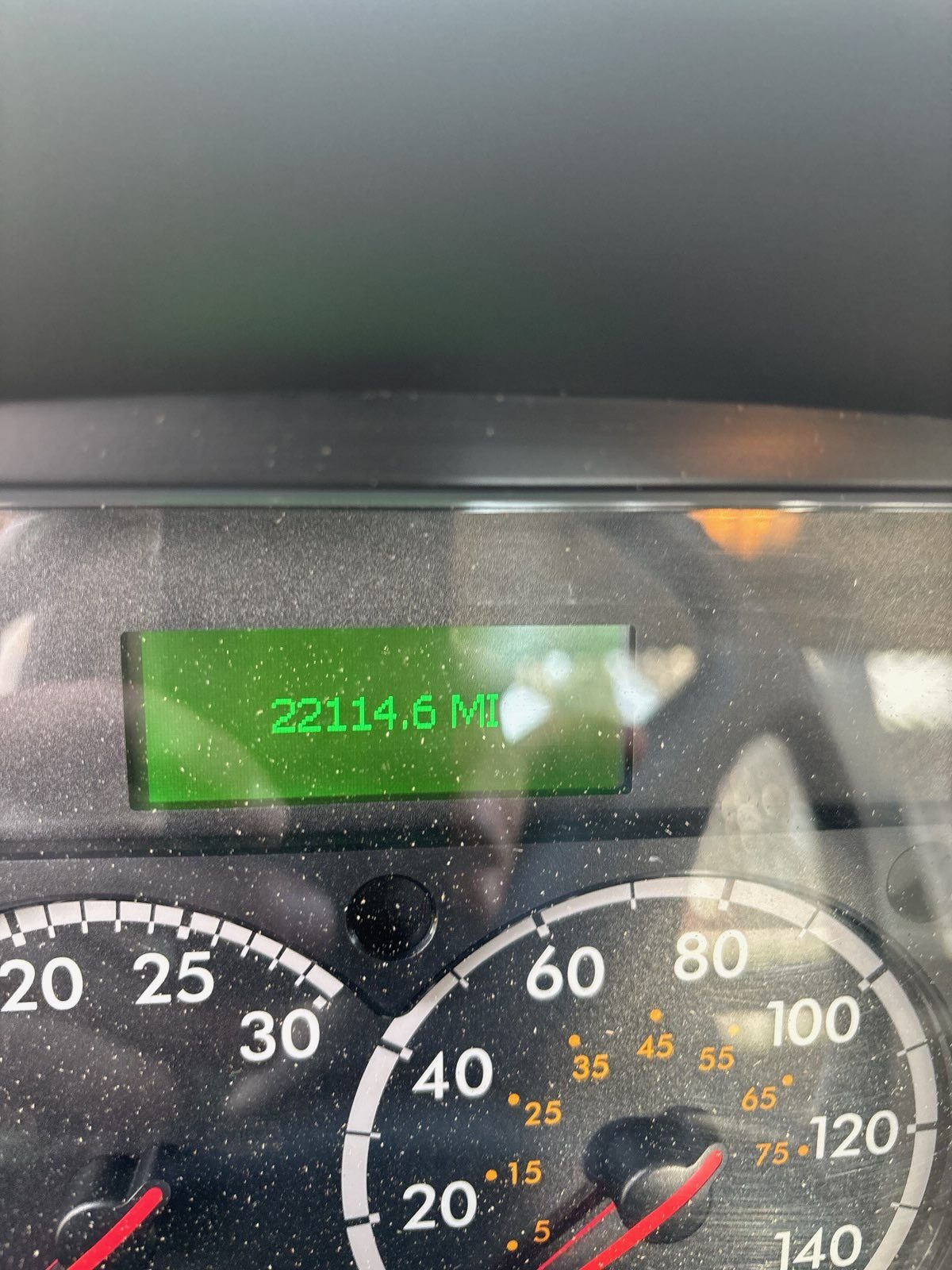

- 26,900 MILES | 1850 ENG. HOURS
- Hydraulic Brakes
- 280 hp
- Allison Auto Trans
- 12,000 lb fronts w/11 R22.5 tires
- 21,000 lb rears
- aluminum rims, Air Cond, 2-man pass seat, cruise, power windows/locks, tilt/tele steering, stereo, drawplate at rear of truck frame with electric brake actuator, white color cab, etc
Also Included:
- (4) pcs – 2″ PVC stabilizer pads -with holders
- (3) Aluminum storage boxes mounted under deck
- Pre-owned MECANIL SG-160-RC grapple saw with 45 degree slide-out jib & quick disconnect attachements
- draw plate with Reese style hitch receiver with electric brake actuator
