Boom:

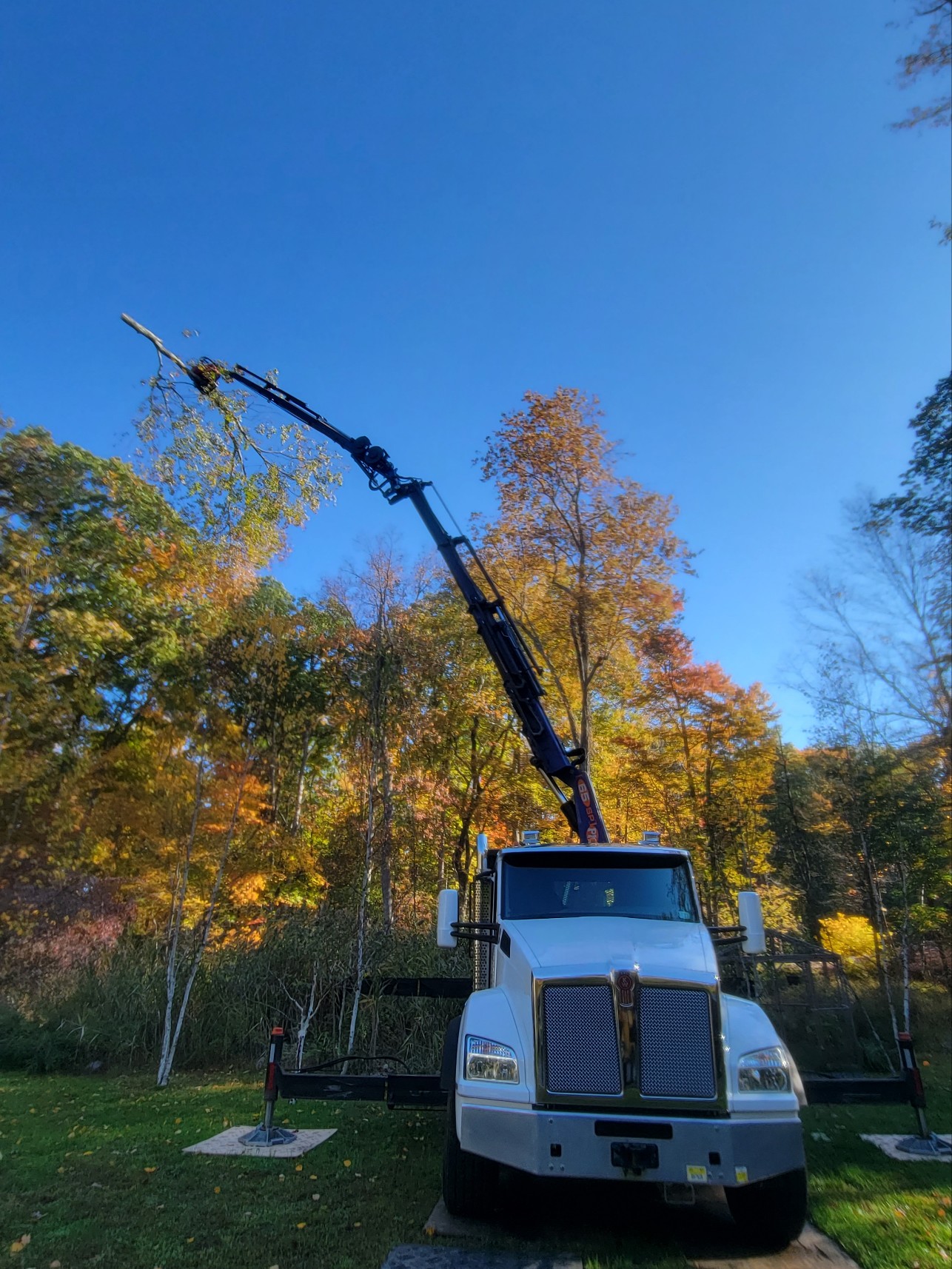

Pre-owned – BIK Tree-Care Series TC-78 (23.5 ton/ml Knuckle Boom by PM: 7-hydraulic extensions to 78’ vertical) w/extra grapple extn

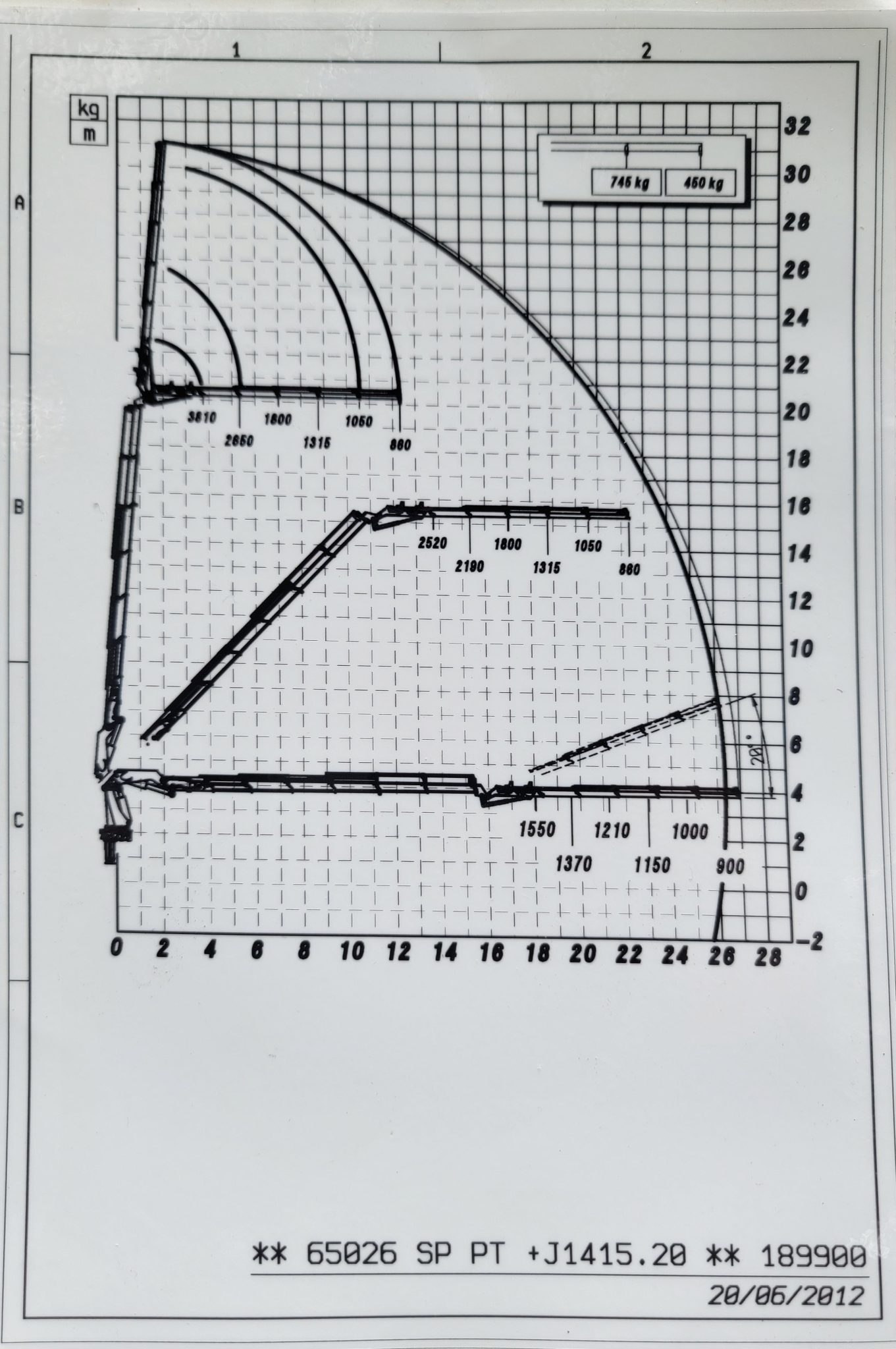

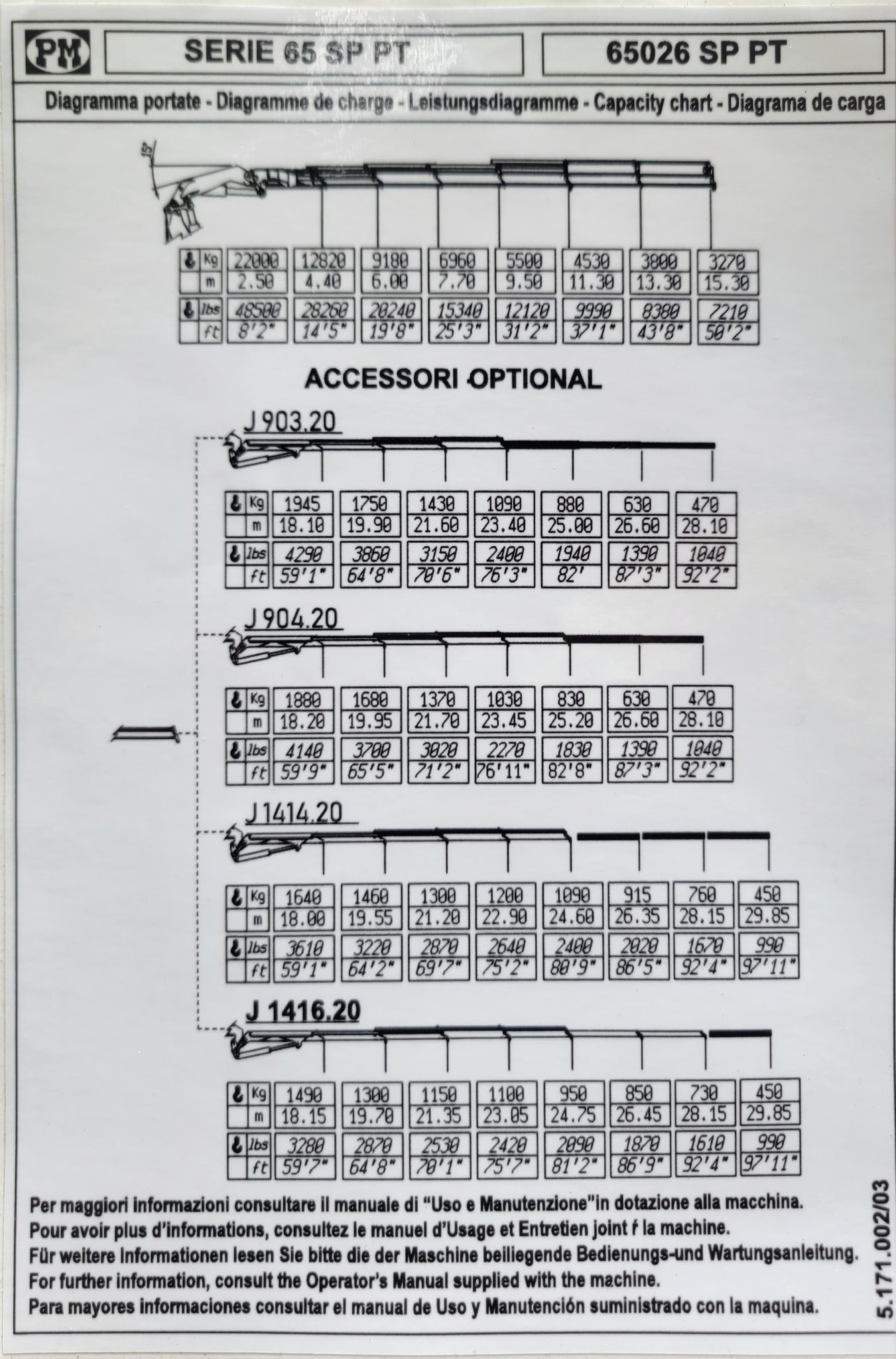

- Vertical Capacity: 2,900 lb at 78’ vertical reach
- HORIZONTAL Capacities:
- 8,500 lb @ 14’
- 5,600 lb @ 20’
- 4,020 lb @ 26’
- 2,230 lb @ 40’
- 1,500 lb @ 55’
- 1,250 lb @ 66’
- 408 Degrees Rotation on Main Hydraulic Slewing
- Double pilot operated on slewing and pilot operated check valves on all cylinders
- Hydraulic Oil Cooler
- High pressure return filter and min. 40-gallon oil tank for boom
- DANFOSS Proportional Valve Controls
- Single sided operator control station
- Load Holding Valves on all cylinders
- PM Power-Tronics electronic monitoring & load control with Stabilizer deployments sensors & digital read-out on the remote
- SCANRECO Radio Remote Control
- electronically actuated controller, proportional precision and ultimate operator feel and control Radio Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50′ back-up cord

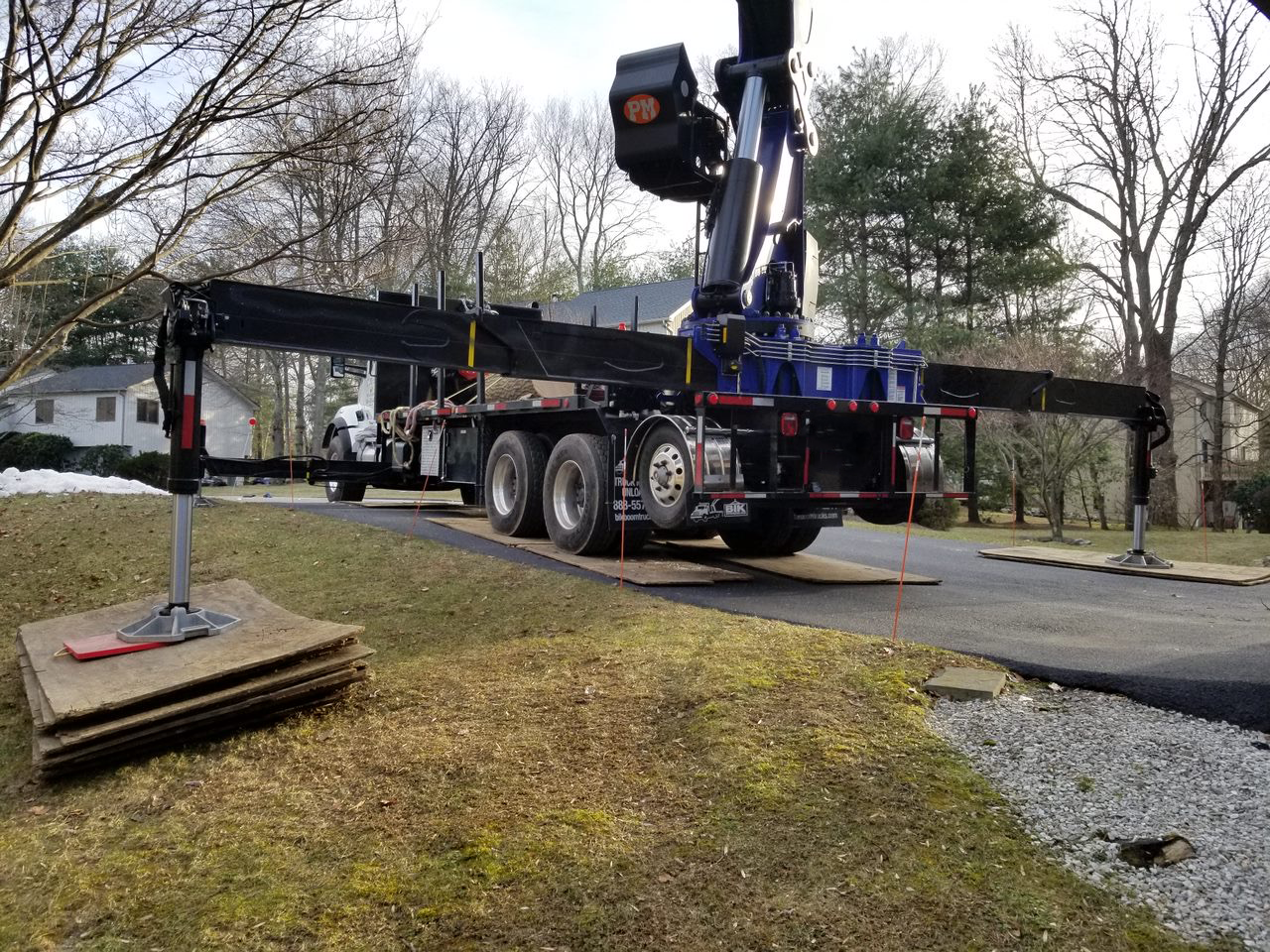

- Hydraulic OUT and Hydraulic DOWN Extra Wide – 21′ 6″ span , 2-sided stabilizers w/ round foot pads welded to bottom of cylinder
- Front Auxilary Stabilizers – hyd out and down type – 16′ spread – mounted on top of truck frame back of cab
- 15 degree negative angle on folding arm
- Hydraulic Overload Protection – simplified system that prevents boom from overload Two functions plumbed to end of 6th extn
- Heavy Duty Pedestal Turning Cylinders for greater turning torque & reduced wear Load Tested & Installed behind cab
- with integral sub-frame to meet or exceed all CMVSS Standards Installed at rear sub base

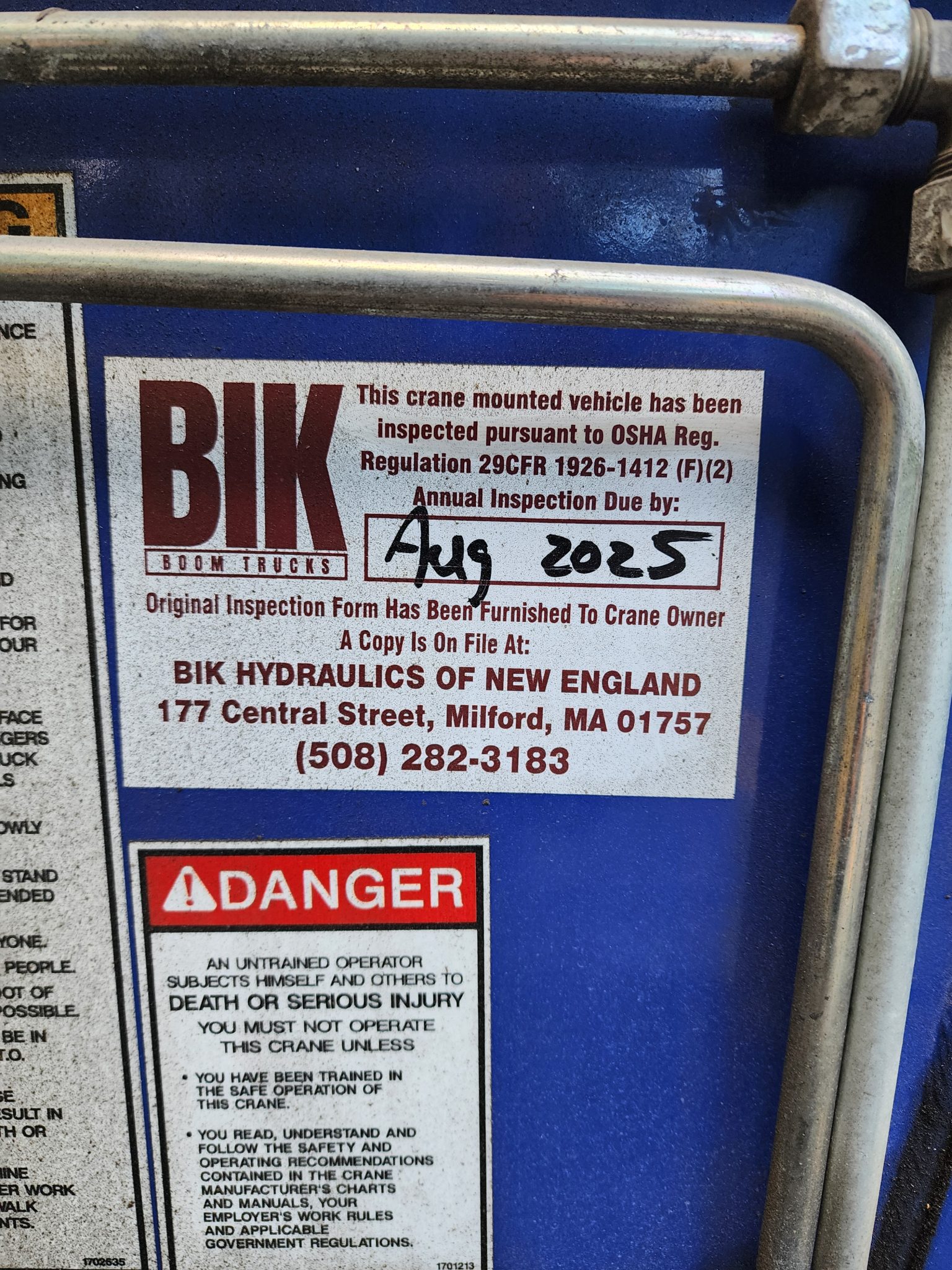

- Engineer certified stability inspection & certificate
Deck:
14′ 6″ x 102″ Steel Deck Body
- 60″ steel headboard
- Steel checker plate deck surface
- Main sil X-braces & support
- 2-Deck access Ladders at Headboard
- 2-Ladders at rear, reflectors and Mud-flaps
- 6 – Sliding Winches and track under deck
- Painted black
Truck:
2020 Freightliner M2-106 2- axle Truck – 33,000 lb GVWR Rated to 25,999 – NON-CDL
- Hydraulic Brakes
- 240 hp Detroit Diesel
- Allison Auto Trans
- 12,000 lb fronts w/11 R22.5 tires
- 21,000 lb rears

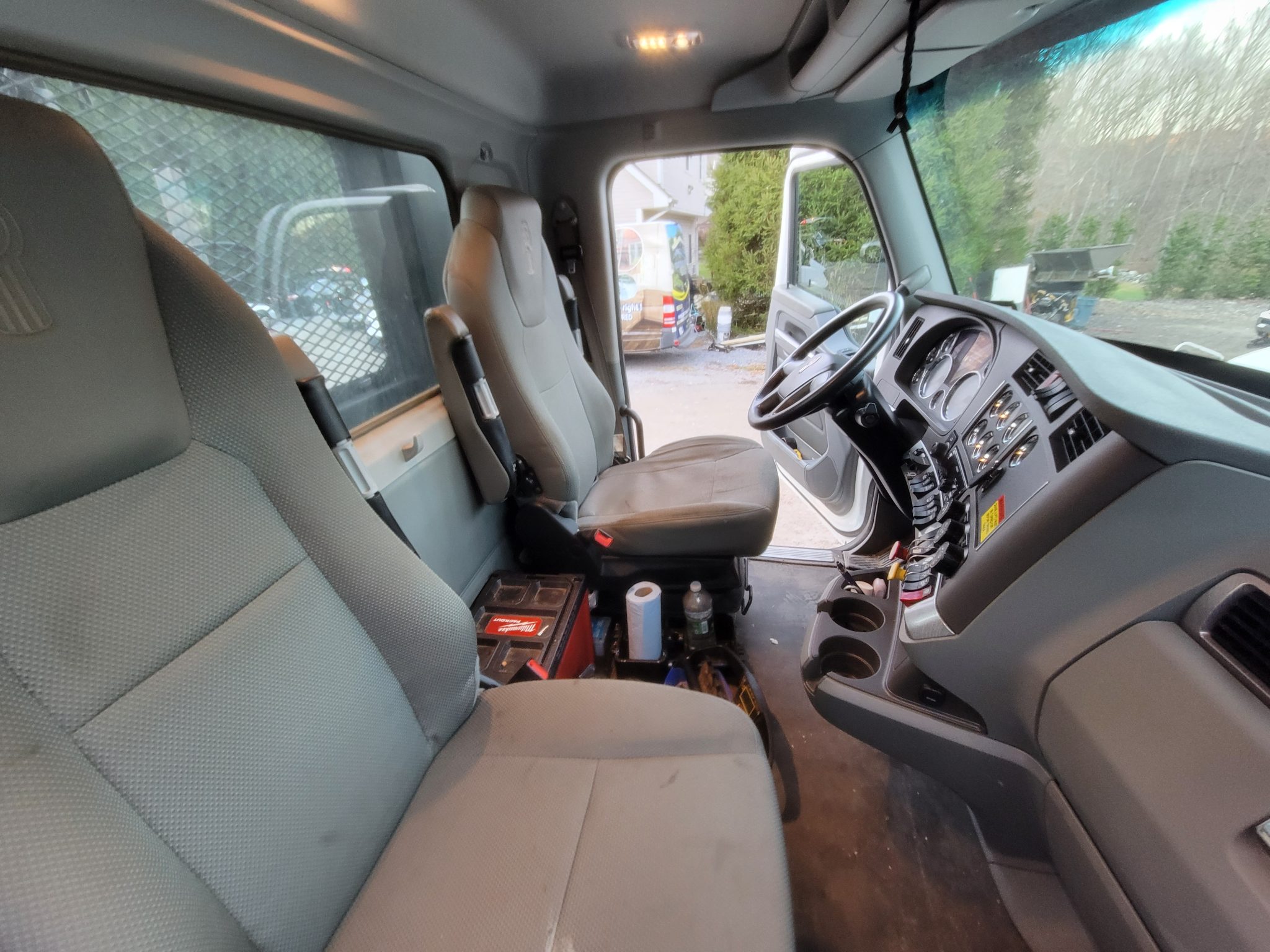

- Steel white rims, Air Cond, 2-man pass seat, cruise, power windows/locks, tilt/tele steering, stereo, drawplate at rear of truck frame with electric brake actuator, white color cab, etc
Also Included:
- (4) pcs – 2″ PVC stabilizer pads -with holders
- (1) x 36″ and (1)- 48″Alum storage box installed
- Pre-owned MECANIL SG-160-RC grapple saw with 45 degree slide-out jib & quick disconnect attachements
