Boom Details
NEW – PM 11023 KNUCKLE BOOM: Manual Out & Down Stabilizers, 3 Hyd Extensions to 30’ Horizontal Reach (42’ Vertical)
- Horizontal Capacities:
- 11,680 lb @ 6’ 5”
- 5,490 lb @ 13’ 7”
- 3,541 lb @ 19’
- 2,480 lb @ 25’
- 2,050 lb @ 30’
- Installed Behind the Cab on Custom, Sub-Frame by BIK, Prepped, Primed and Painted
- New Air Operated PTO, Hydraulic Pump
- Supply and Return Lines, Hydraulic Tank Mounted on Pedestal w/Shut-off Valve
- Load Testing and Operator Orientation
- Standard Features Include:
- Manual Out and Hydraulic Down Outriggers w/Round Foot Pads Welded to Bottom of Stabilizers
- Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load
- Sequential Boom Extensions
- Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear and Improved Precision – 390-Degrees Rotation
- Dual Sided Ground Controls
- Installed Back of Cab with Integral Sub-Frame to Meet or Exceed all CMVSS Standards
- Load Tested, Stability Certification by Engineer
Deck Details

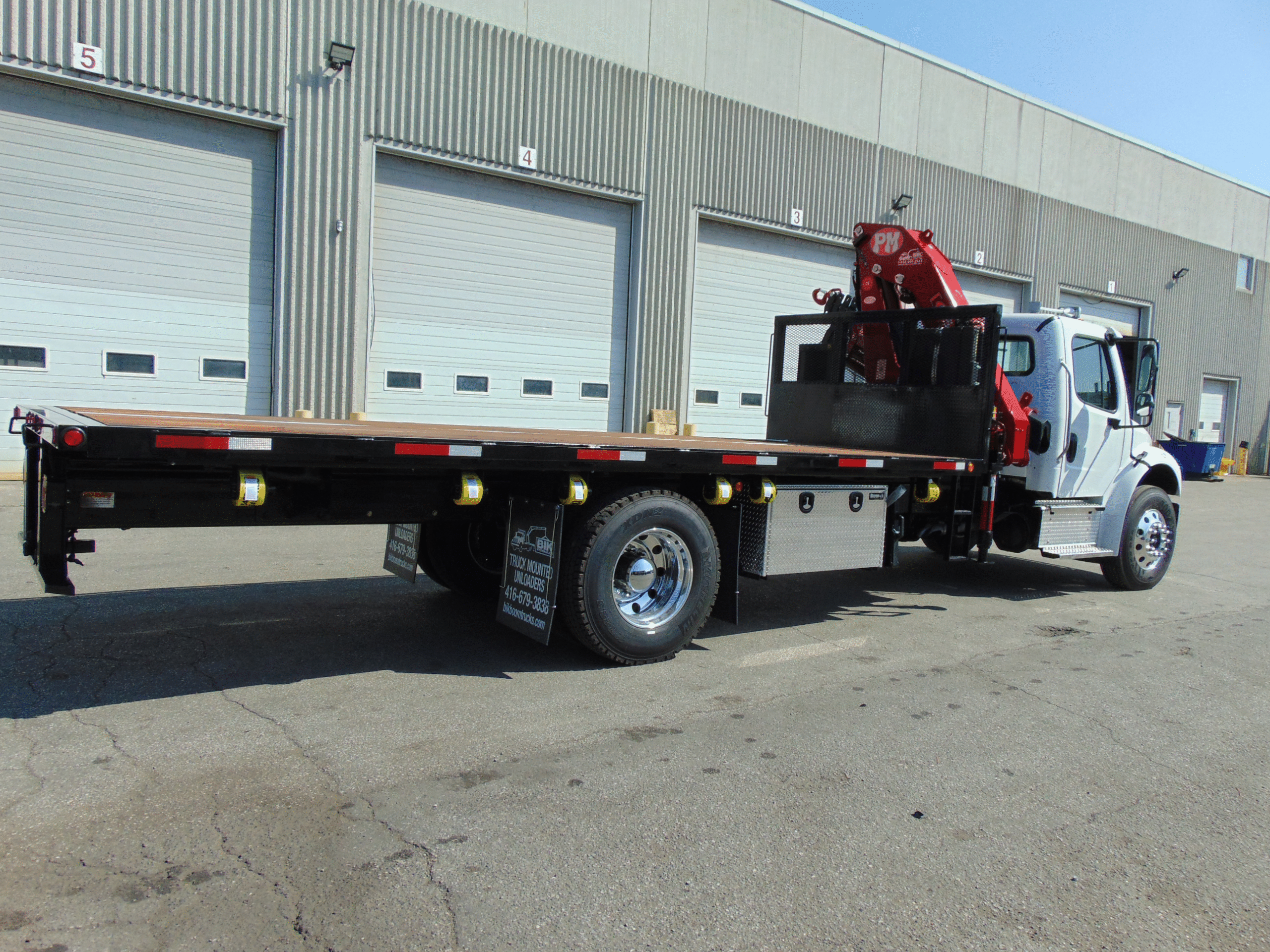

NEW – 20’ X 102” STEEL FLAT DECK
- Installed on Truck
- 48” Headboard
- Steel Checker Plate Deck Surface
- Conspicuity Tape and Reflectors
- 6 Sliding Winch Straps, Winch Bar & Holder
- Dual Front Access Ladders
- Headboard and all other Steel Painted Gloss Black
Truck Details

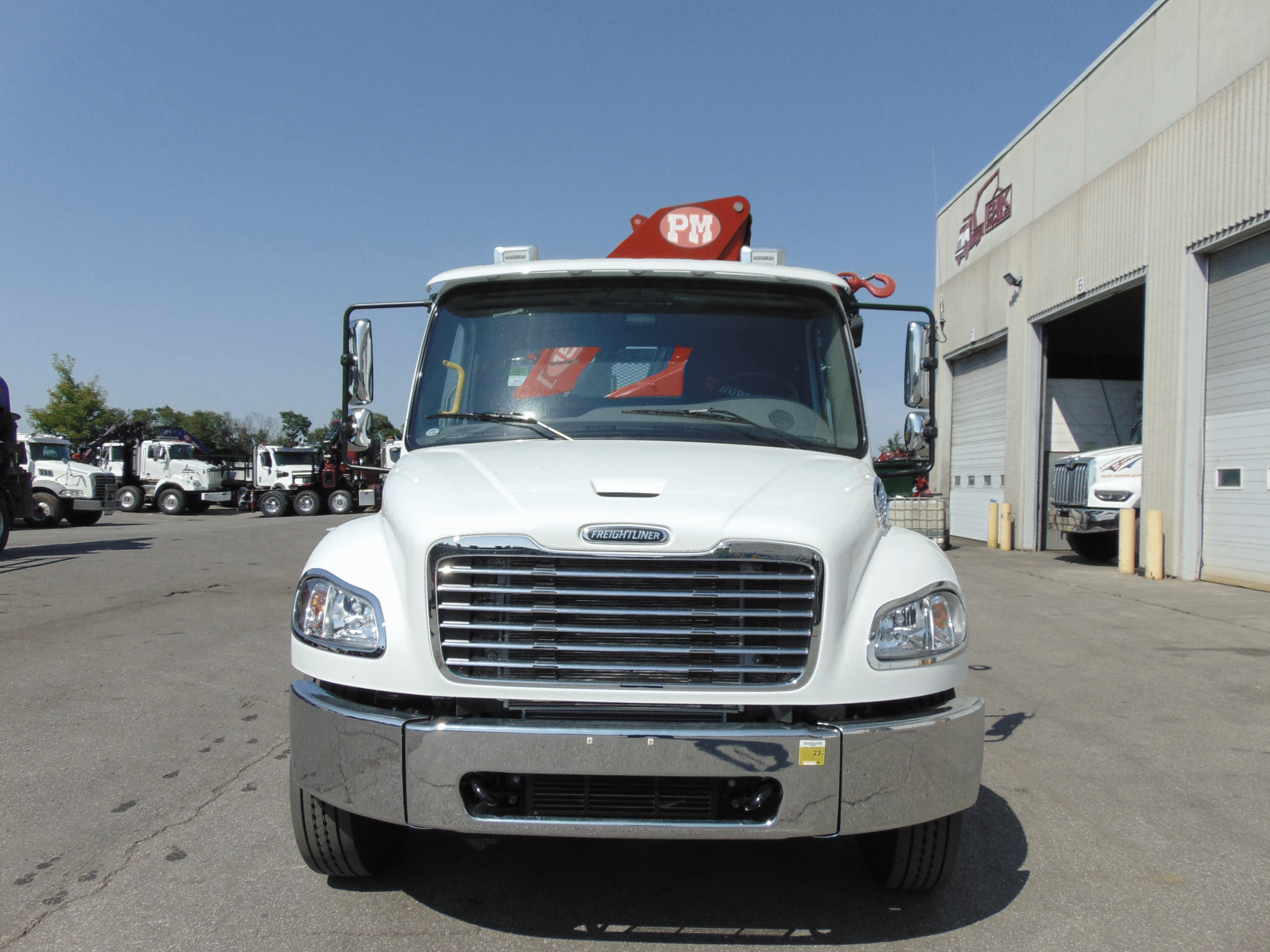

NEW – FREIGHTLINER M2-106 SINGLE AXLE DIESEL TRUCK: Hydraulic Brakes – Non-CDL – 33,000 lb GVWR
- Cummins Diesel – 260 hp – Allison Auto Trans
- 254” Wheel Base, Truck Cab White
- 12,000 lb Fronts, 21,000 lb Rears on Spring Suspension (33,000 lb GVWR) with 11R22.5 Tires on Steel White Rims
- Hydraulic Brakes, 50-Gallon Fuel Tank, A/C, Cruise & Stereo
- Painted Steel Bumper, Steel White Rim
Additional Options:
- Under Body Aluminum Storage Boxes with Fold Down or Barn Doors
- Self-Leveling Pallet Forks
- PM 11523 with Radio Remote Control and Hydraulic Out & Down Outriggers
- PVC Stabilizer Pad with Holders
