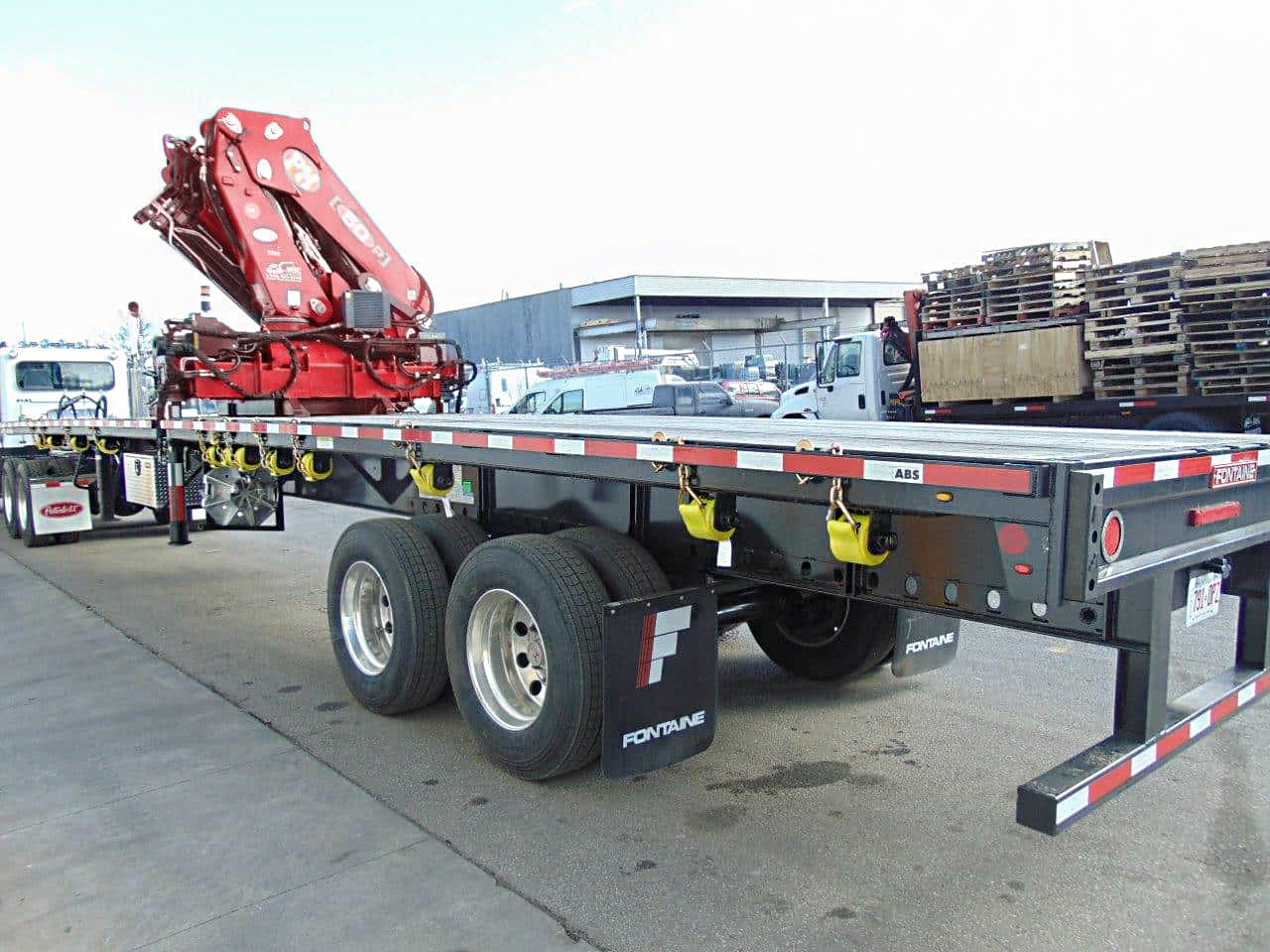

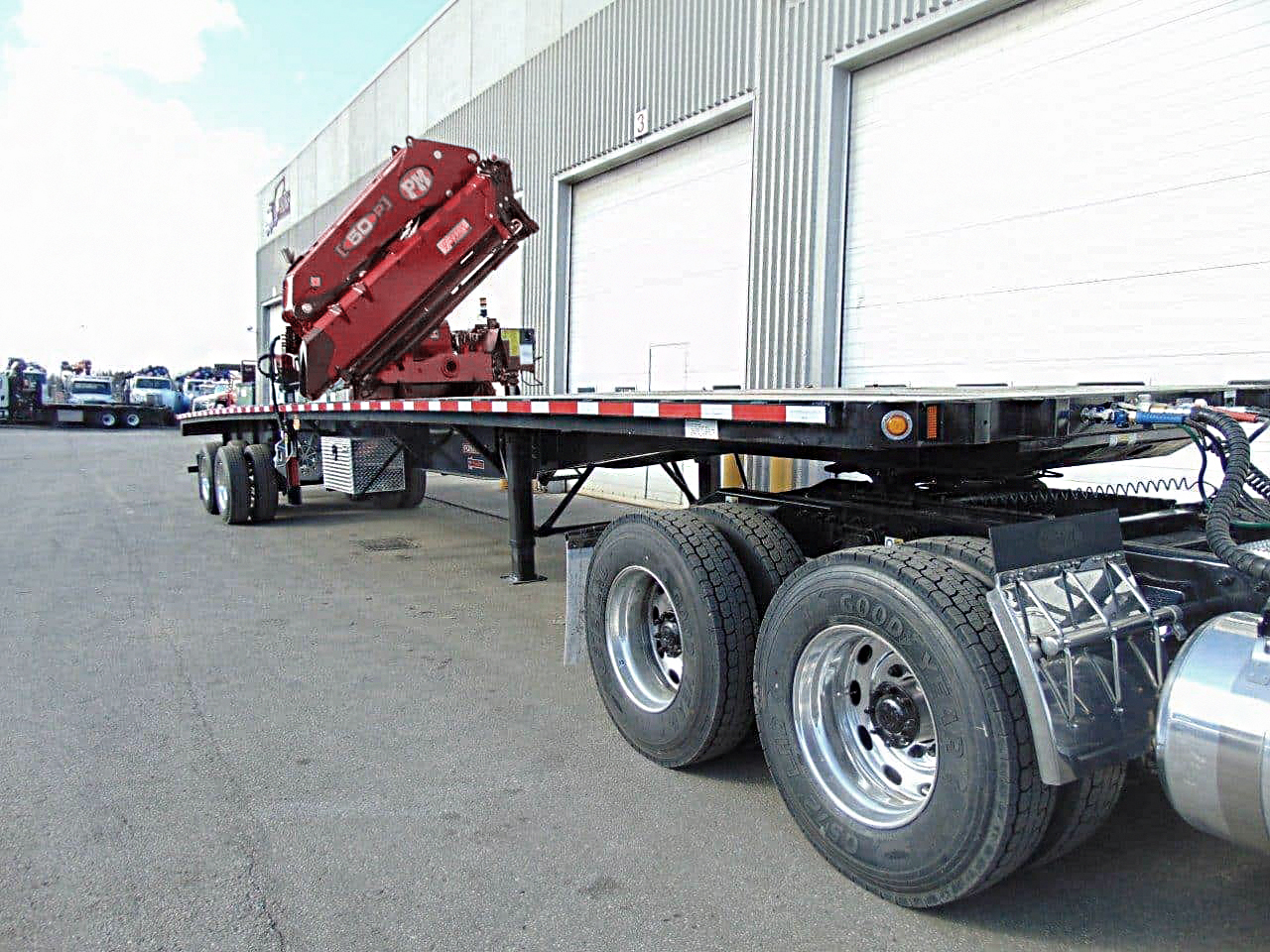

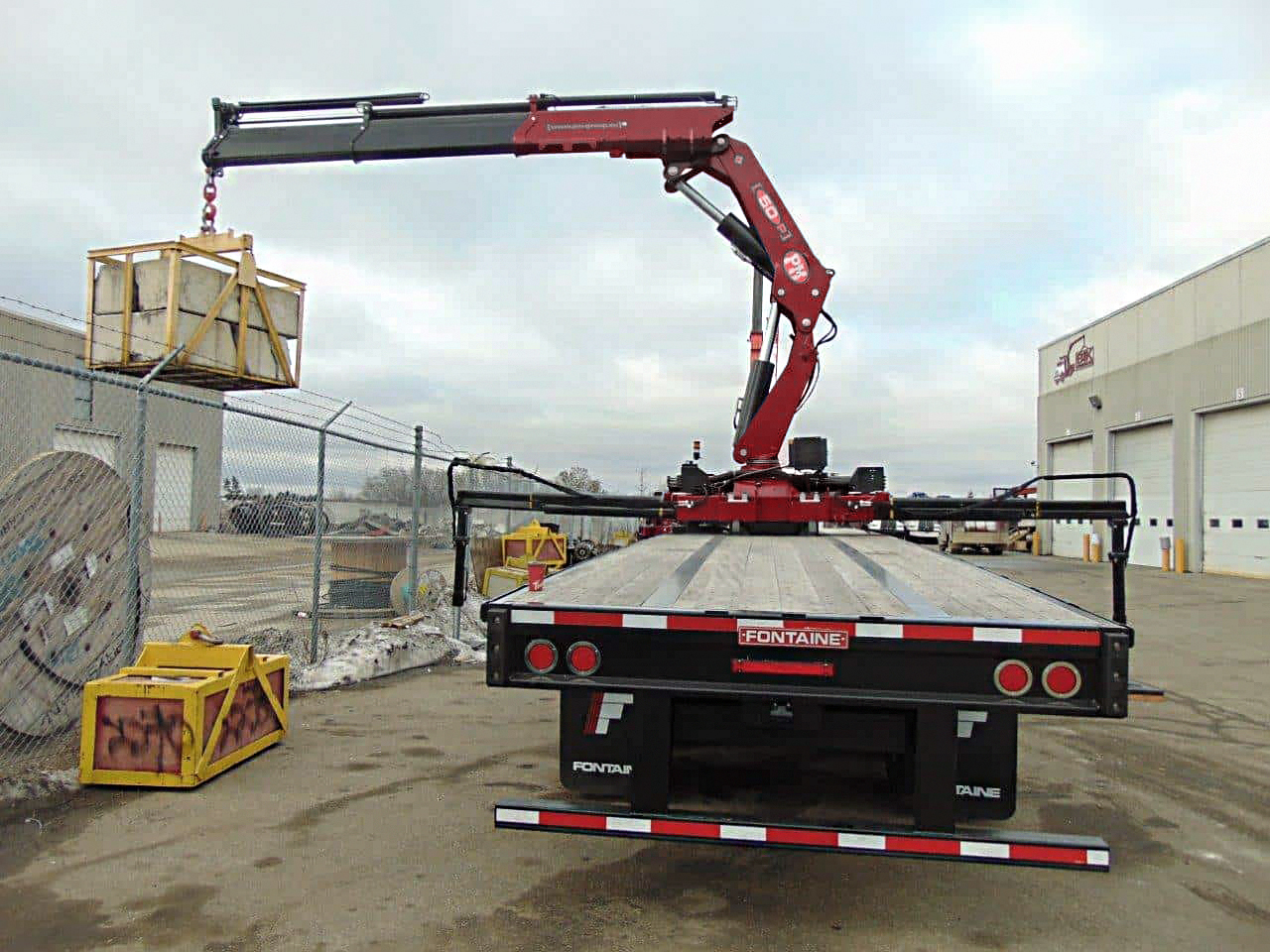

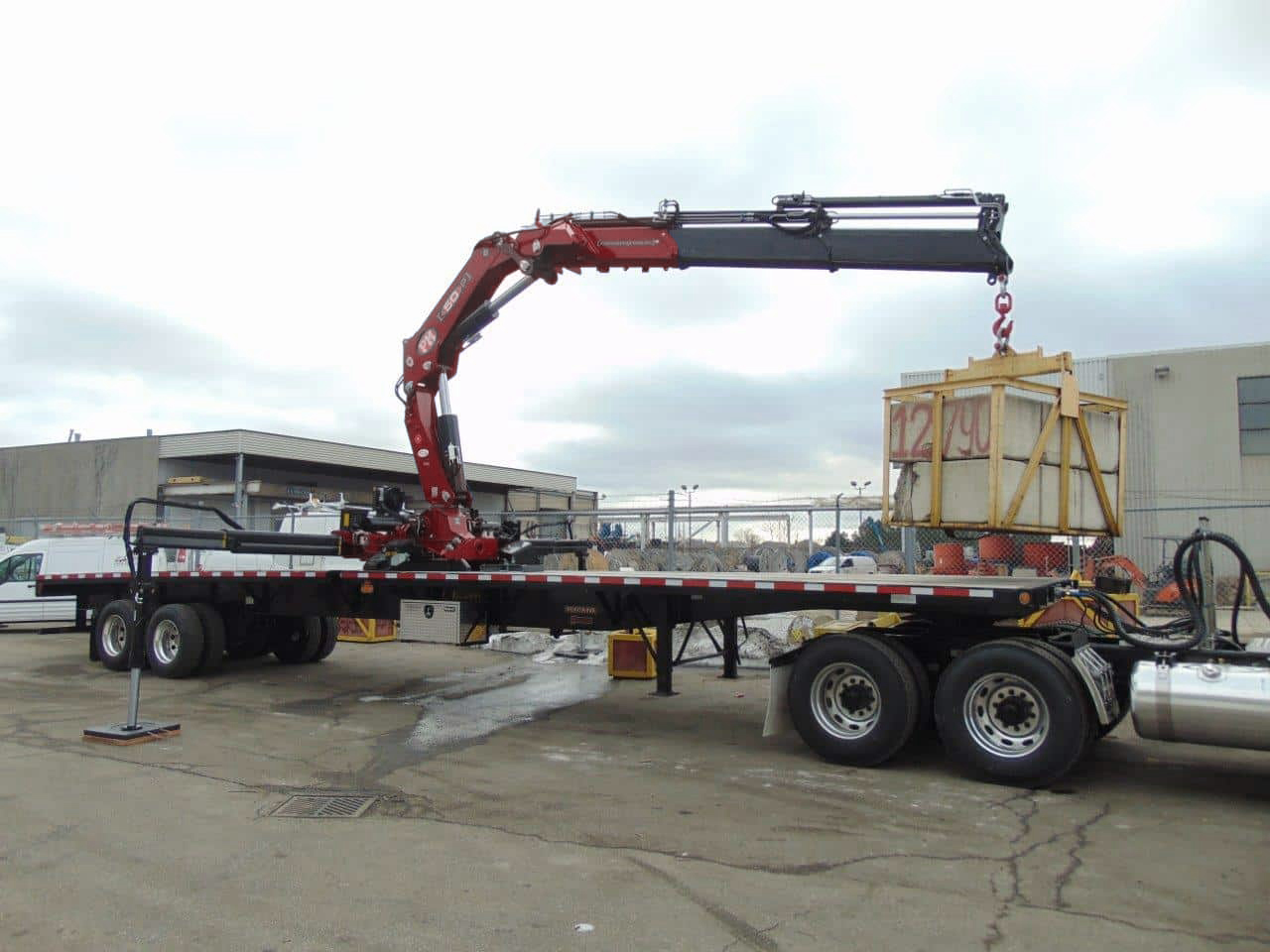

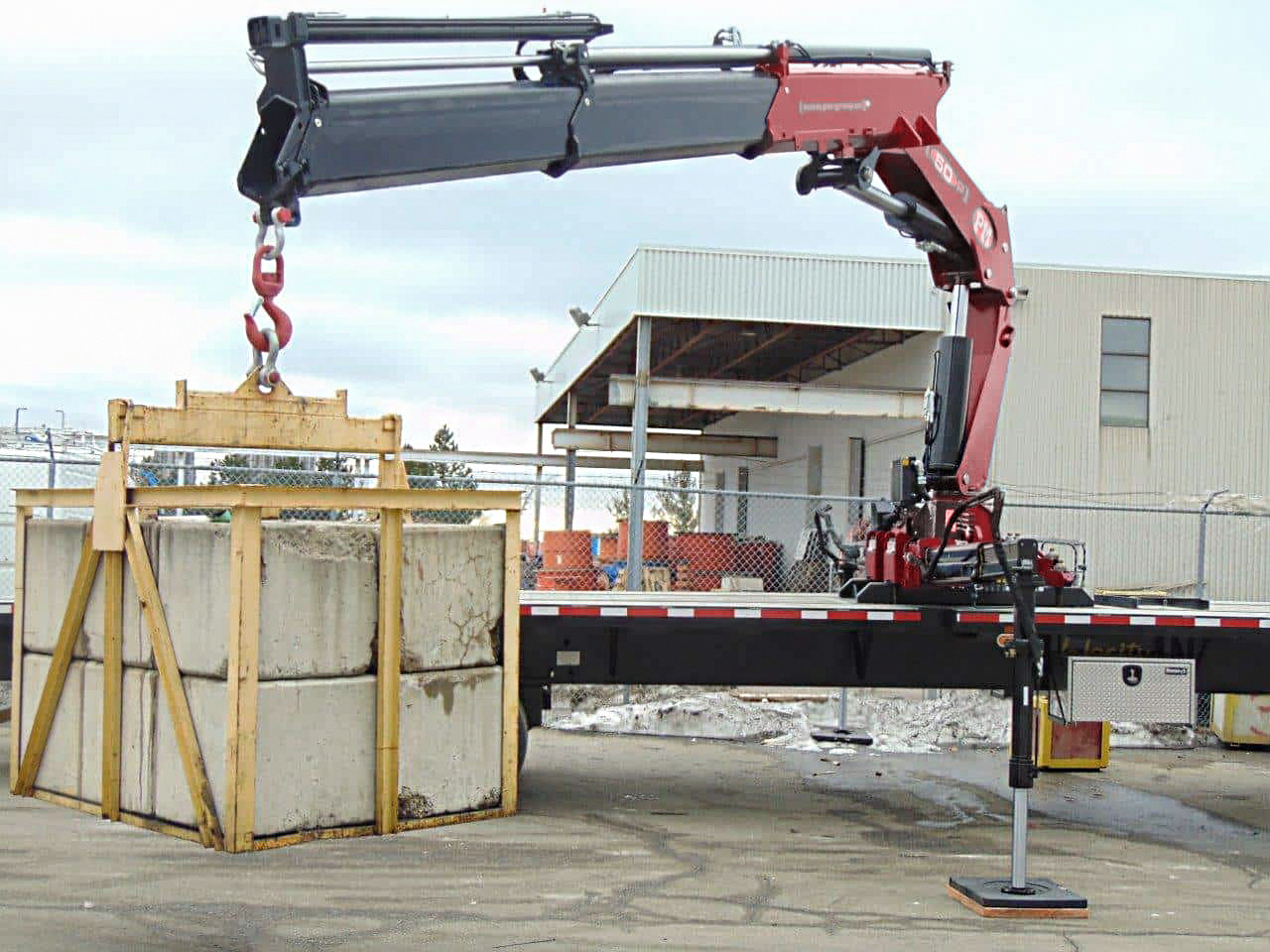

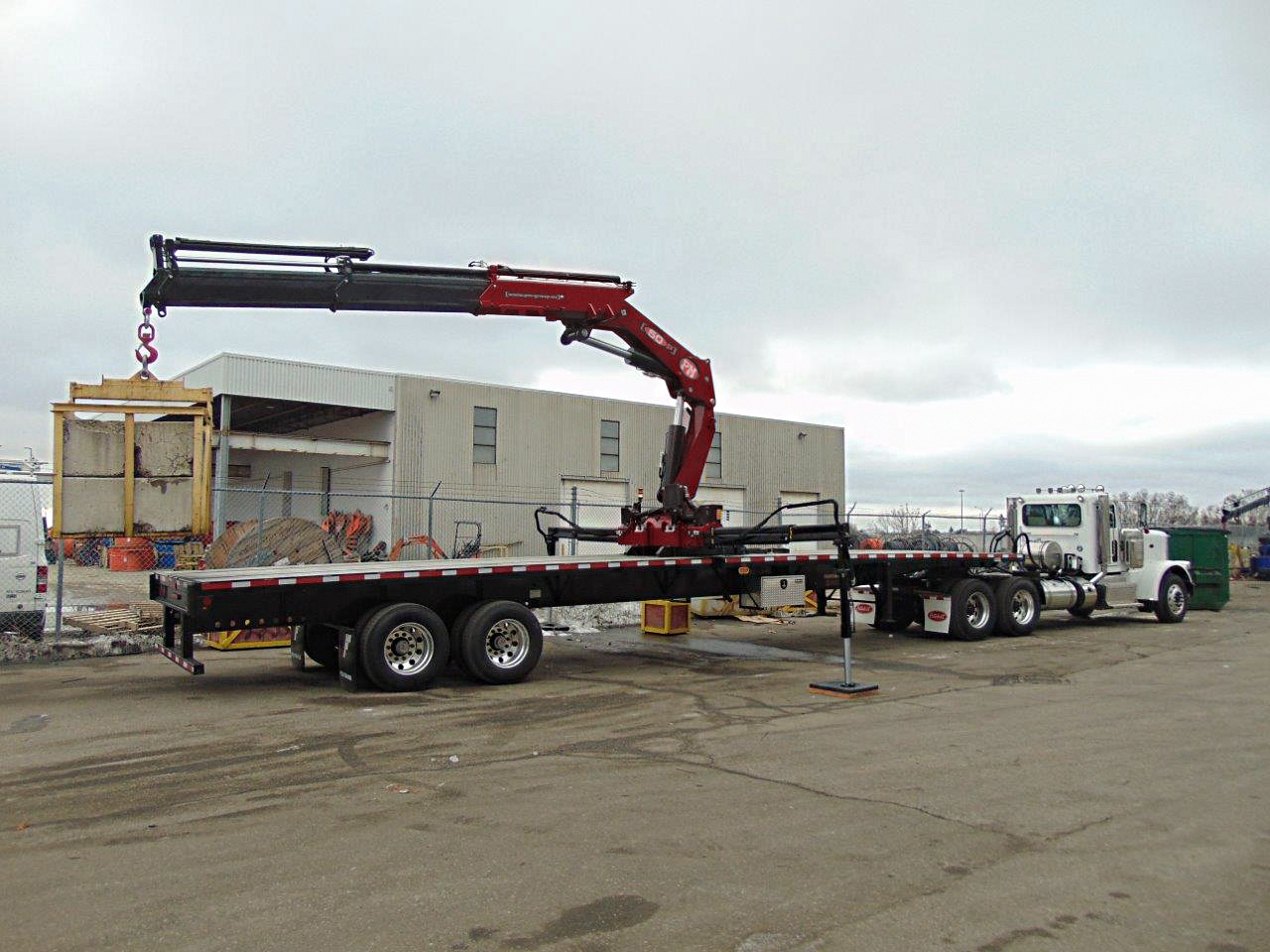

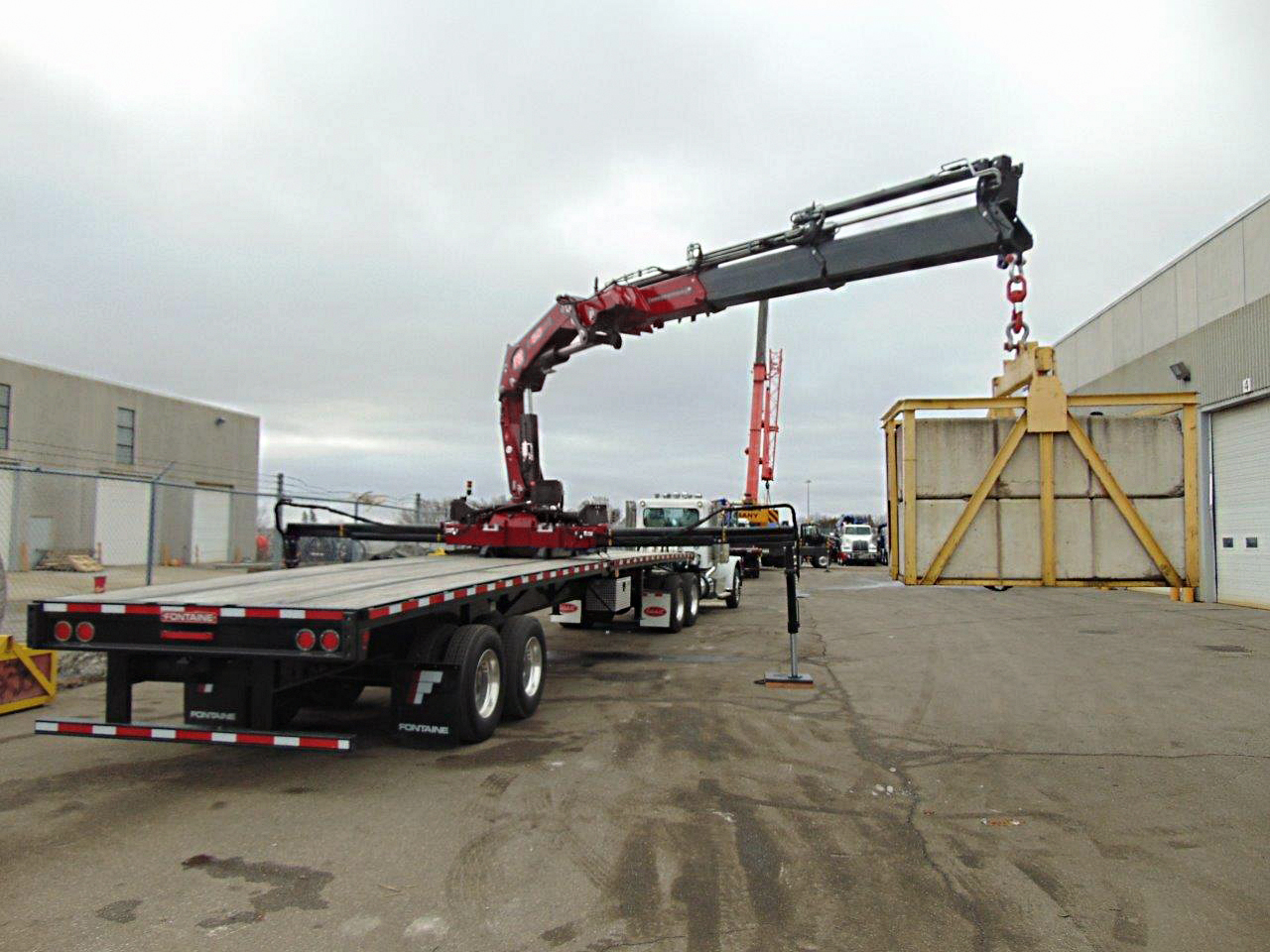

NEW PM 50024 KNUCKLE BOOM MID-MOUNTED – NEW 48′ T/A TRAILER
Boom Details
- NEW – PM 50023 KNUCKLE BOOM
- Folding Hydraulic Knuckle Boom w/ 32’ 6” Horizontal Capacities as Follows:
- 46,740 lbs @ 6’ 9”
- 23,810 lbs @ 13’ 7”
- 16,640 lbs @ 19’ 8”
- 12,720 lbs @ 25’ 9”
- 10,100 lbs @ 32’ 6”
- 3 Independent Extensions to 32’ 6” Total Horizontal – Sequentially Extended
- PM Connecting Rods at First Boom and Knuckle, 400 Degrees Pedestal Rotation
- Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders
- Hydraulic Extra-Wide Main Outriggers at Pedestal – 25’ 7” Span
- Hydraulic Oil Cooler, High Pressure Return Filter and Min. 52-Gallon Oil Tank for Boom
- DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
- Radio Remote Control Includes: 2 Batteries, In-Cab Charger, and Back-up Cord
- Crane Painted PM Blue – Certified Painting Quality System – Load Chart on Boom in FT. & LBS.
- Mounted Mid-Mount on Trailer, with Hydraulic and Electric Connections for Tractor Wet-Line Operation
- Warranty: 1-Yr. Part & Labor on Entire Boom, 3-Yr. on Structural Components
Trailer Details
- NEW – FONTAINE – 42’ x 102” TRAILER WITH 50” SPLIT IN PLATFORM FOR MID MOUNT
- Sliding Hendrickson Air Ride Tandem Axle, 60” Adjustable
- 1-1/8” Wood Flooring on 12” Centers
- 49” Axle Spread with 295/75R22.5 Tires and Steel Rims
- Available Options:
- Aluminum Stabilizer Pads (2x) with Holders Installed
- (1) 36” Aluminum Tool Box Under Deck
