Boom Details

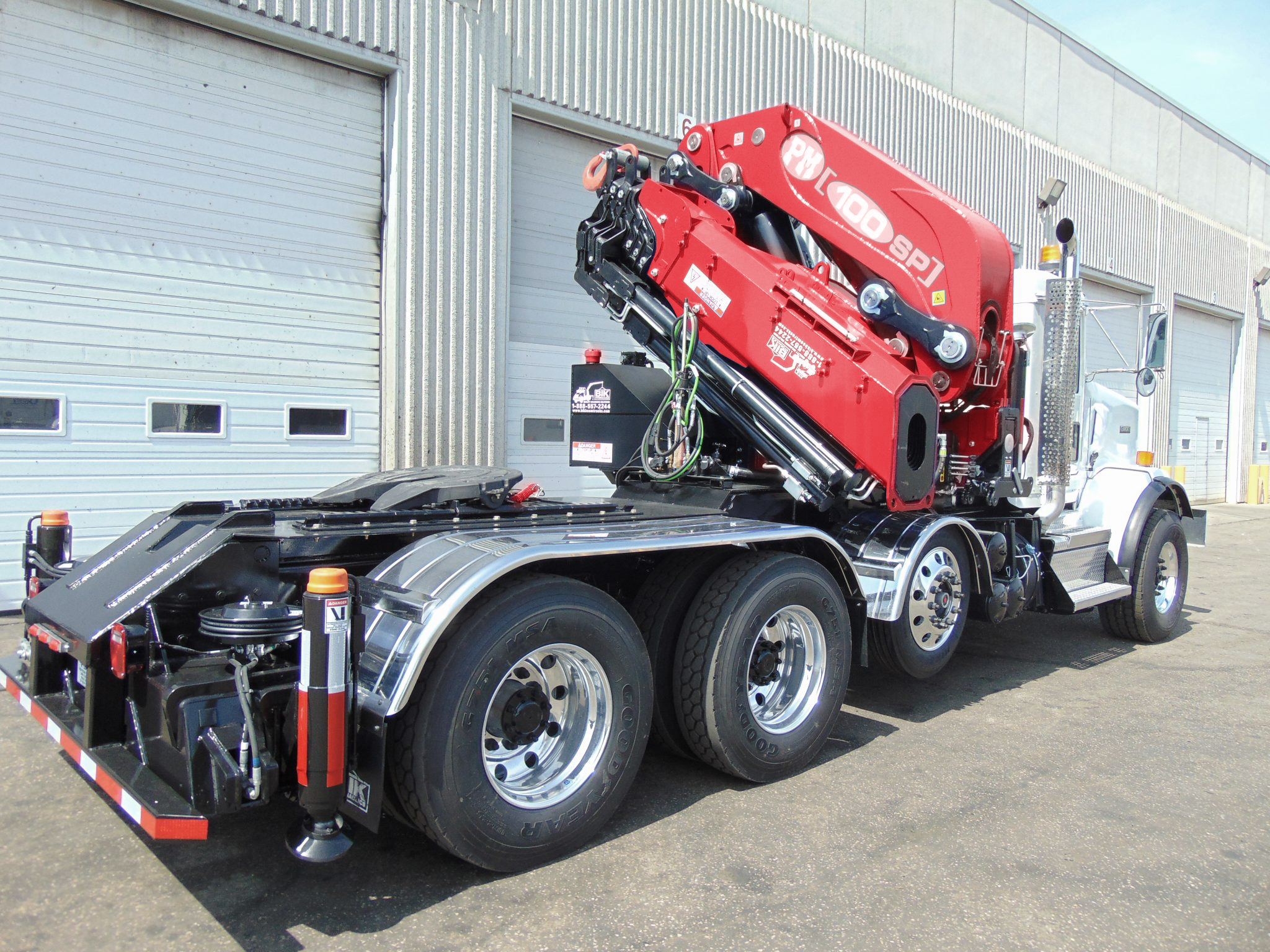

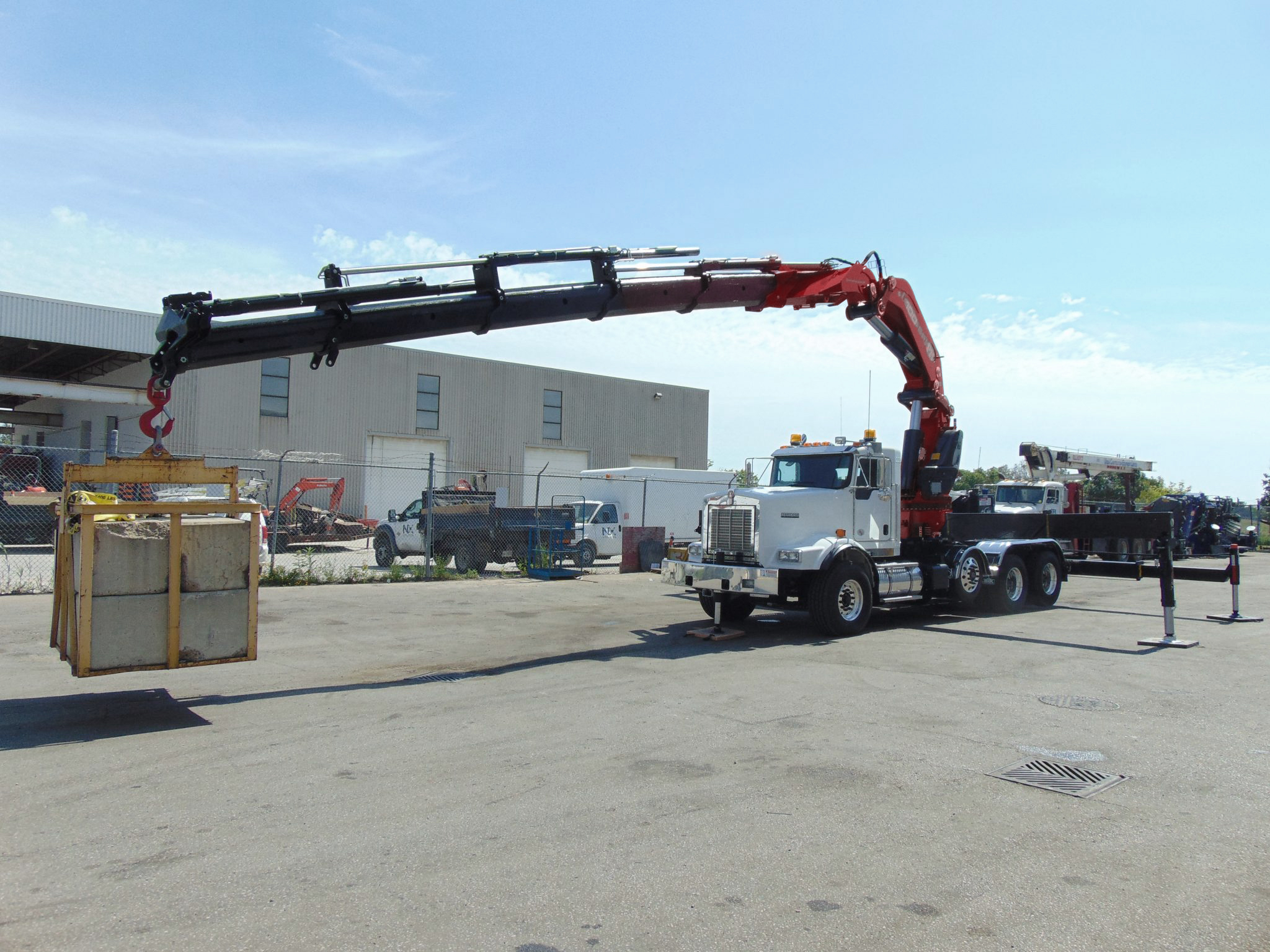

New – PM 100024S Knuckle Boom
- 4 Hydraulic extentions to 37’ 5” horizontal reach (49’ vertical)
- Main Boom Horizontal Capacity:
- 42,400 lb @ 14’
- 32,100 lb @ 19’
- 24,010 lb @ 25’ 3”
- 20,600 lb @ 30’ 6”
- 16,250 lb @ 37’ 5”
- PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
- Double pilot operated on slewing and pilot operated check valves on all cylinders
- 180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – 360 degree full load chart stability
- Front Auxilary Stabilizers Extra wide type – 25’ span – installed under trailer near front
- Hydraulic Oil Cooler, high pressure return filter
- DANFOSS Proportional Control Valve on Boom Column & SCANRECO Proportional Radio Remote Control with back up cord
- Radio Remote includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
- PM Power Tronics Electronic monitoring allowing maximized uptime and ease of maintenance
- 4-ton single line winch with ability to three-art line to handle 24,000 lb with winch
- Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified
- 24/7 Crane-Tech Support by BIK – 1-Yr. part & labor warranty on entire boom, 3-Yr. on Structural Components
- Mounted end of frame mount on trailer, with hydraulic and electric connections for tractor wet-line operation
Deck Details
New 5-axle Michigan Trailer
- Tri-Dem (3) axles air ride or spring at rear
- (2) – 20k air lift axles 9’ spread between 1st axle of tri’s & lift
- Wood flooring on 12” centers
- We will need customer owned tractor with its own at end of install to set up pressures on boom
Available Options:
- Lifting winch up to 4-part line cable to handle 24,000 lb lifts
- Aluminum Stabilizer Pads (2x) with holders installed
- (1) 36” Aluminum Tool Box under deck
