Boom Details

NEW Elliott G85 R HiReach:  4-section Hydraulic reach to 85’ vertical reach with 85’ working height, 74’ horizontal reach

• Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
• New Air Operated PTO (Chelsea)
• Hour meter, Hydraulic Pump
• Supply and Return Lines
• Hydraulic tank mounted on truck frame w/ shut-off valve
• Load Tested

Standard Features include:

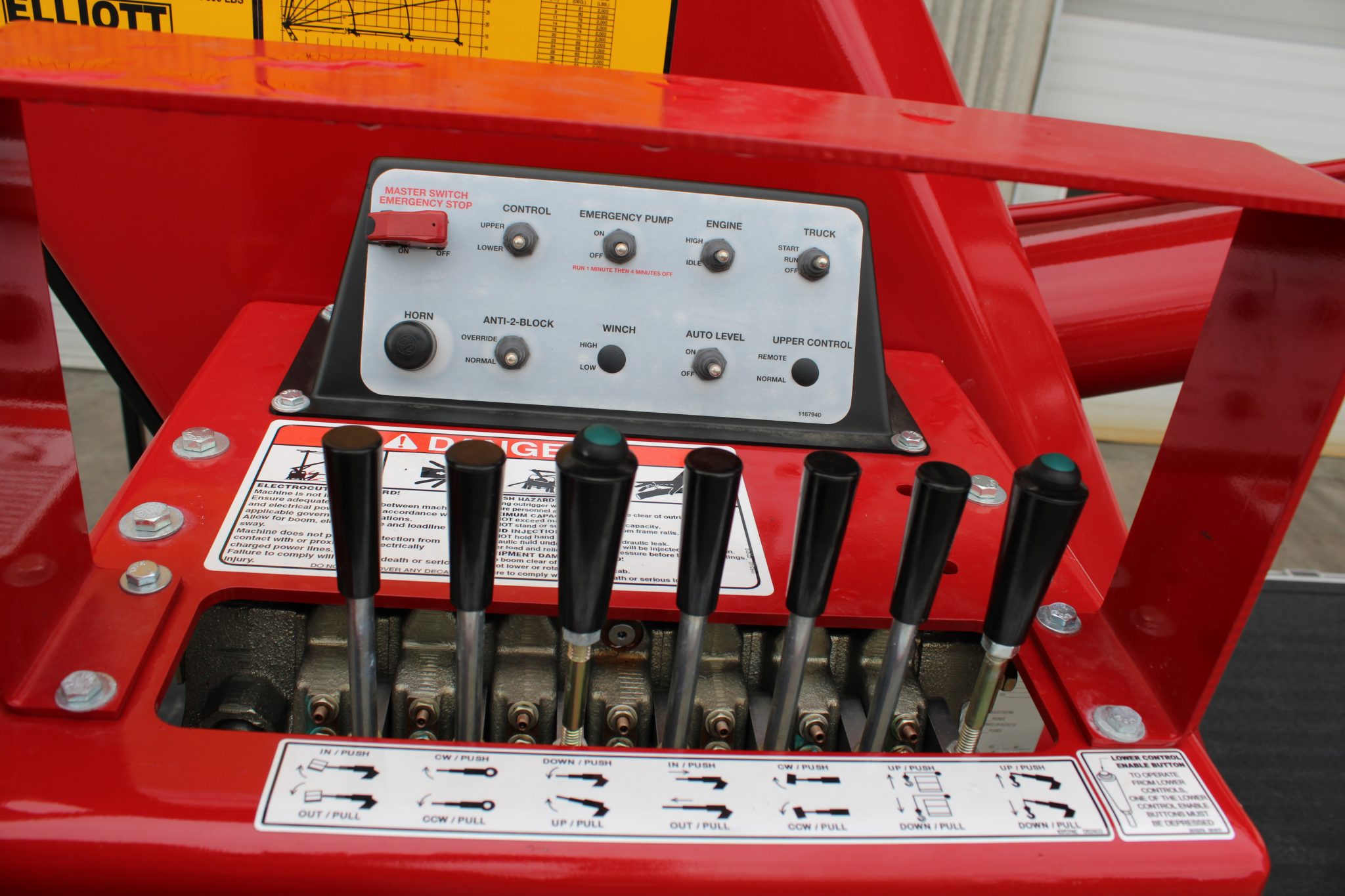

• Electronic Proportional three stick controls on platform.  Manual ground controls located on side of turret.
• Remote star/stop from upper and lower controls.  Two exposed cable carriers to boom tip.

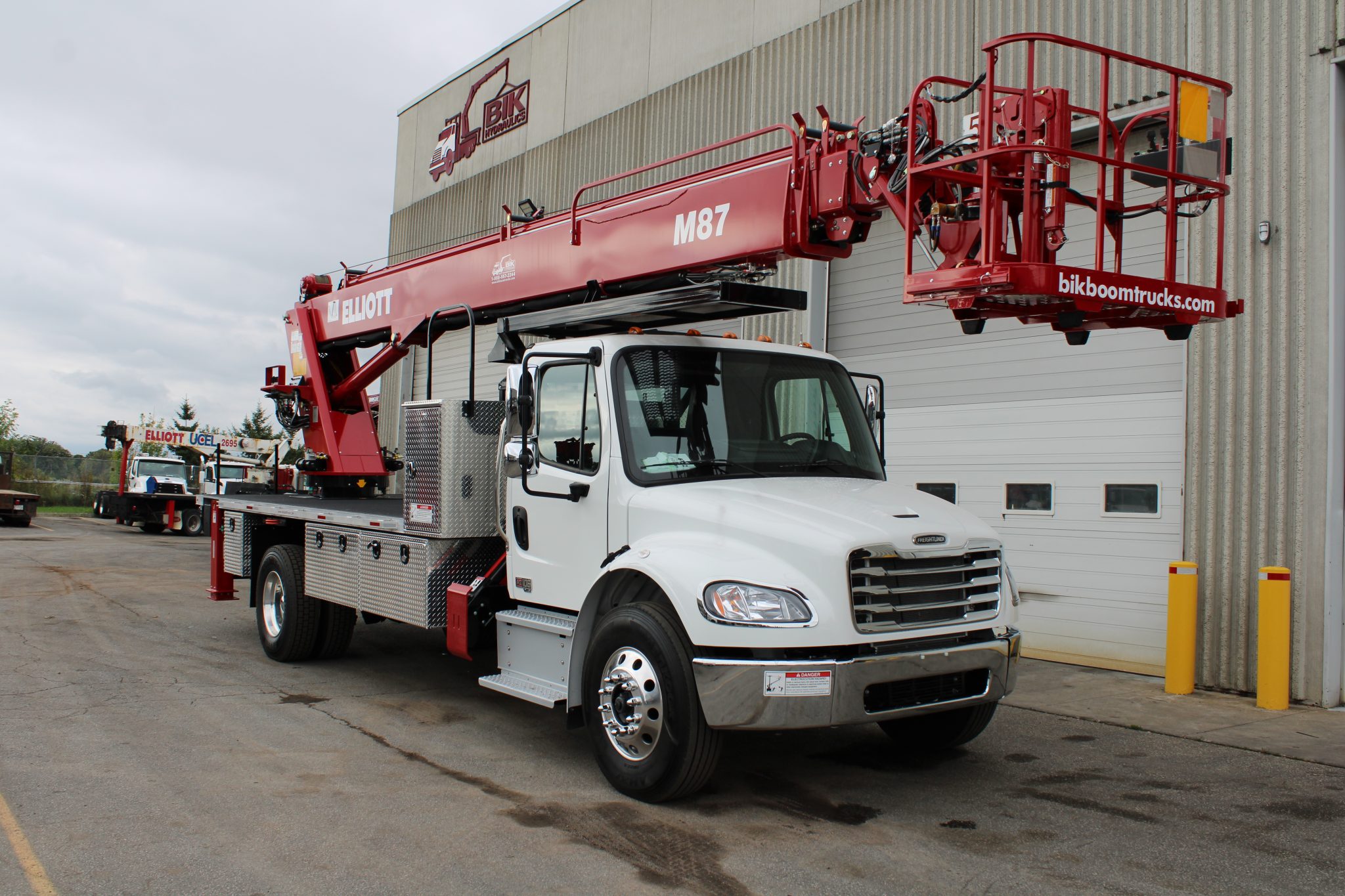

• Hydraulic self levelling and rotating 40” x 60” EZR work platform with remote levelling from platform, platform capacity 500 lbs
• One double acting  7” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
• Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.

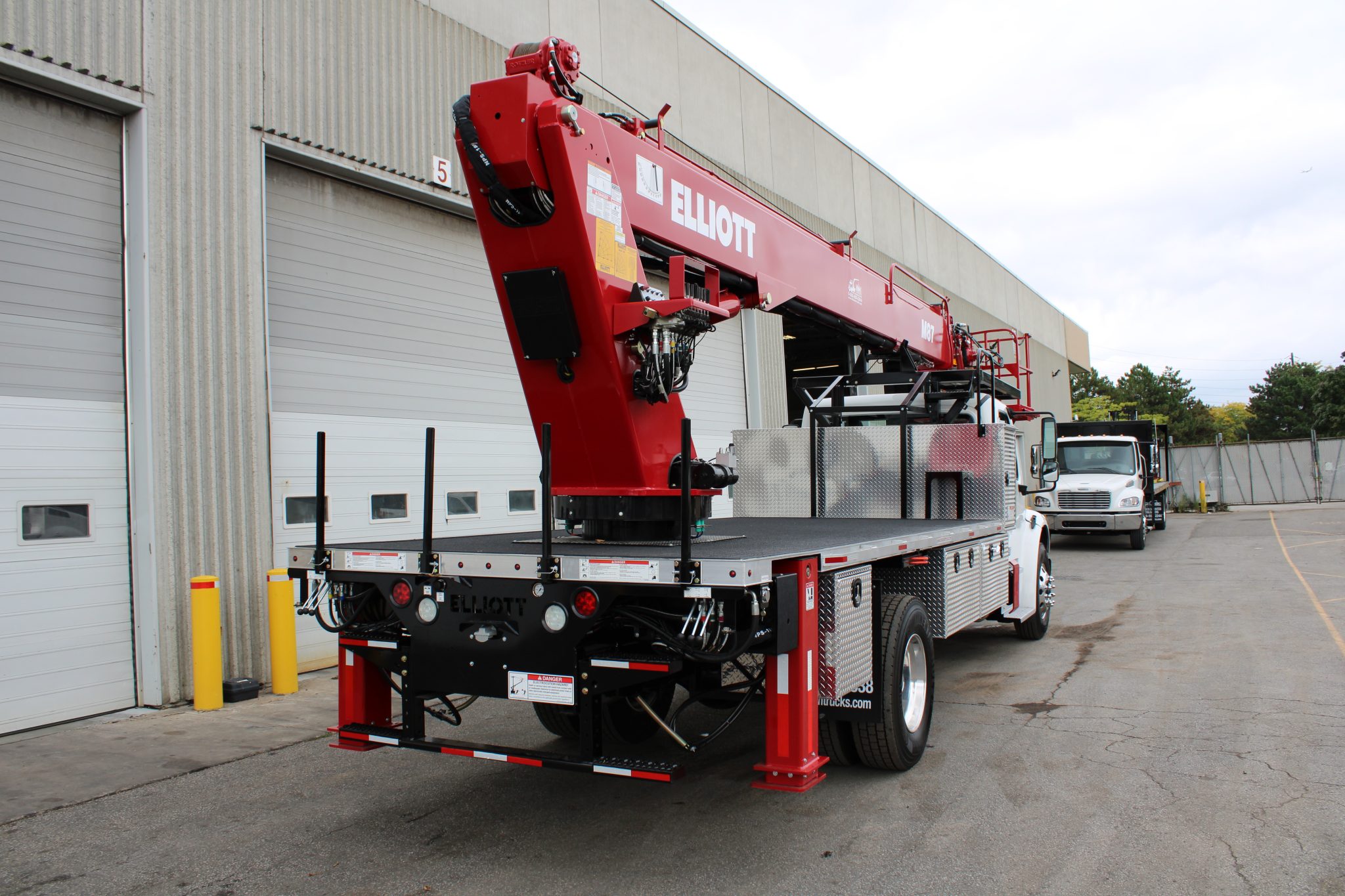

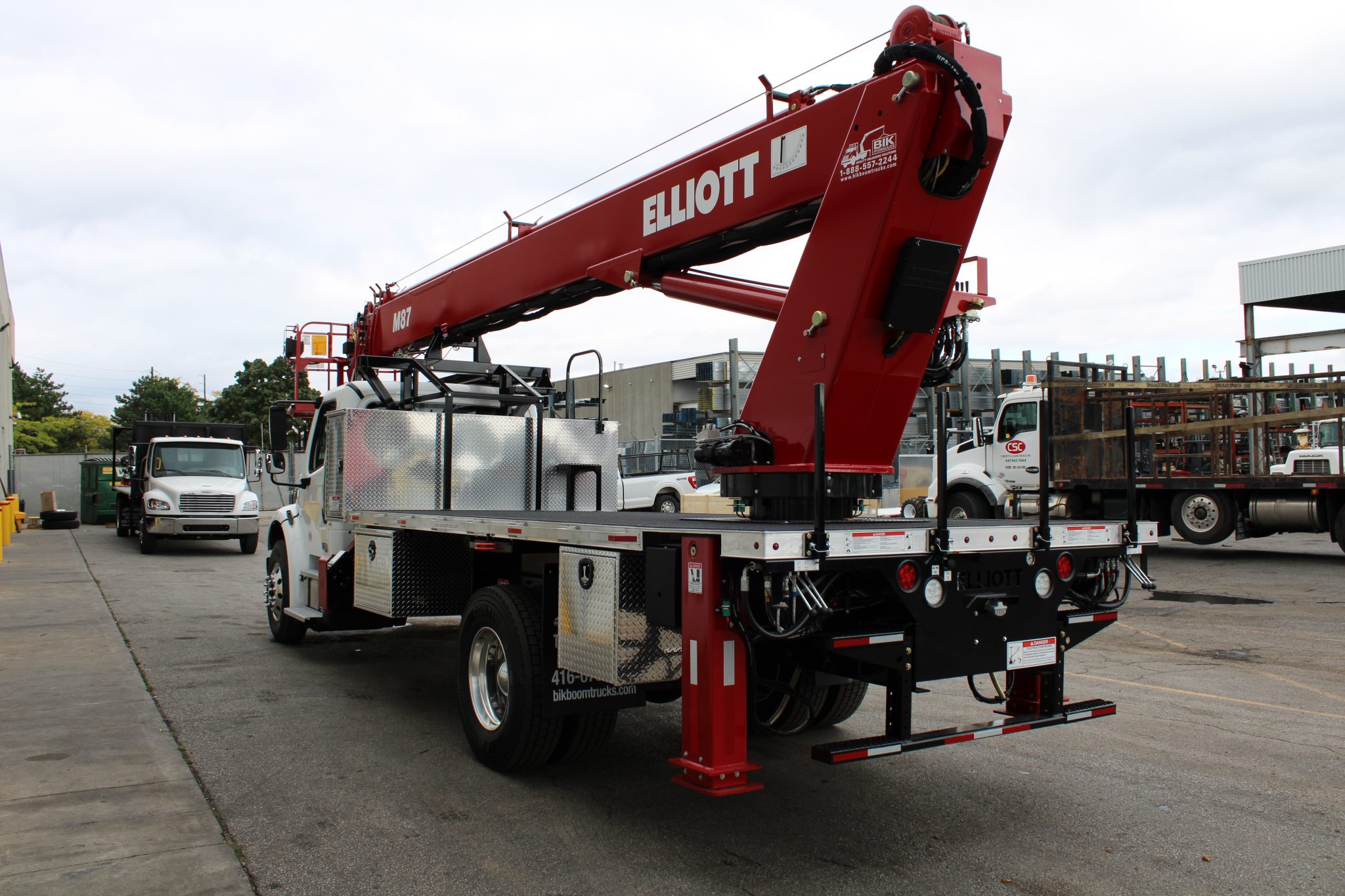

• Hydraulic OUT and DOWN  “MH” stabilizers at base with a 18’ spread, “A” frame secondary stabilizers at front.

Included Options Are:

• 5,900lb planetary winch w/anti-two block switch, horn, two part hook and 130’ of 3/8” cable
• Platform mounted jib with hydraulic winch drum mounted on horizontal arm
• 110 V power supply to work platform, Sign forks on platform  (2 pcs)
• 16’ x 96” Aluminum bed,    Truck cab windshield guard,  steel carrier cover
• 8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
