Boom Details

Elliott M-87 R HiReach: 4-section Hydraulic reach to 85’ vertical reach with 85’ working height, 74’ horizontal reach

• Installed END OF FRAME by Elliott factory technicians, prepped, primed and painted
• New Air Operated PTO (Chelsea), Hour meter, Hydraulic Pump, Supply and Return Lines, Hydraulic tank mounted on truck frame w/ shut-off valve.
• Load Tested.
• Standard Features include:

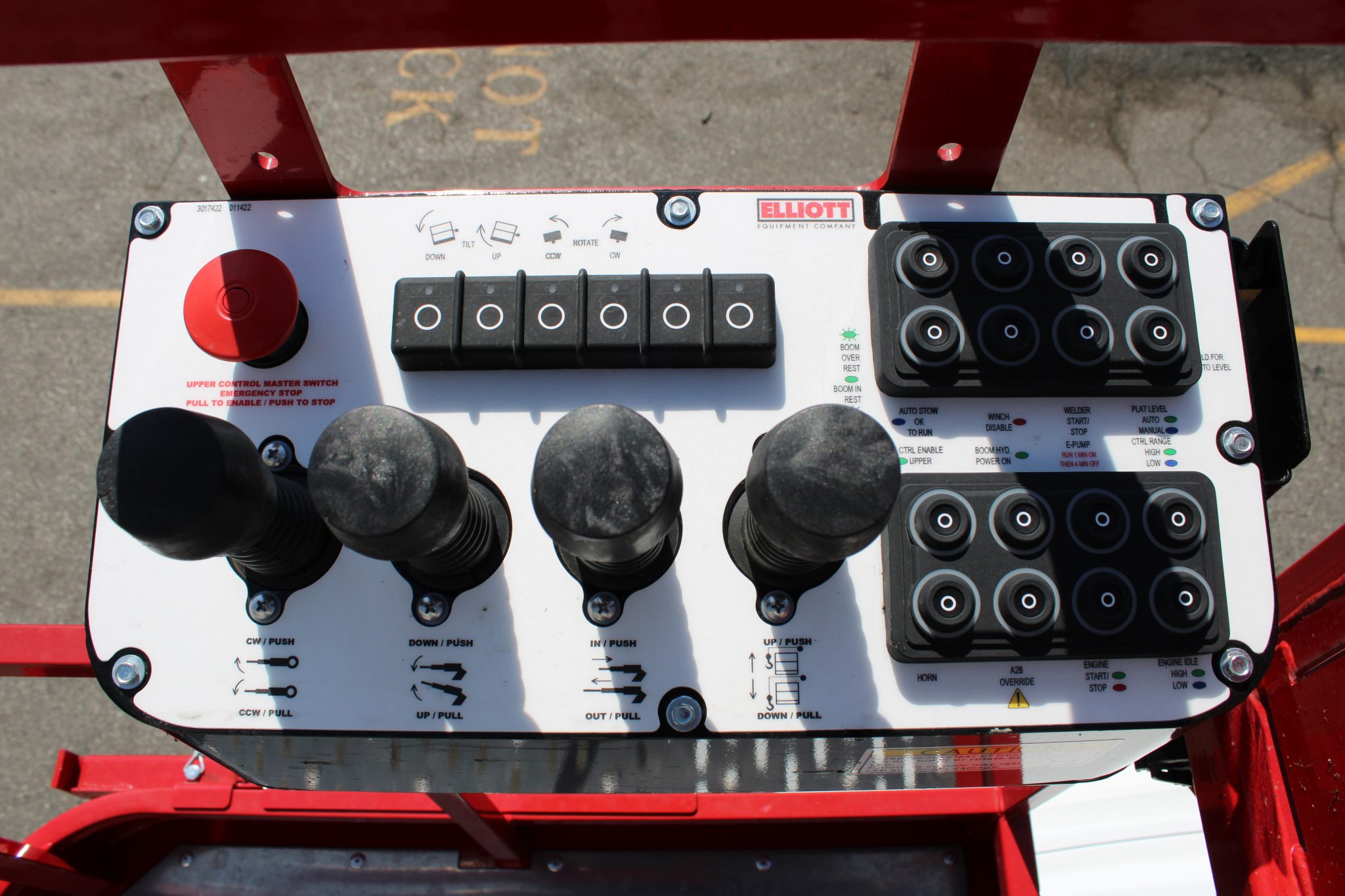

  • Electronic Proportional three stick controls on platform.

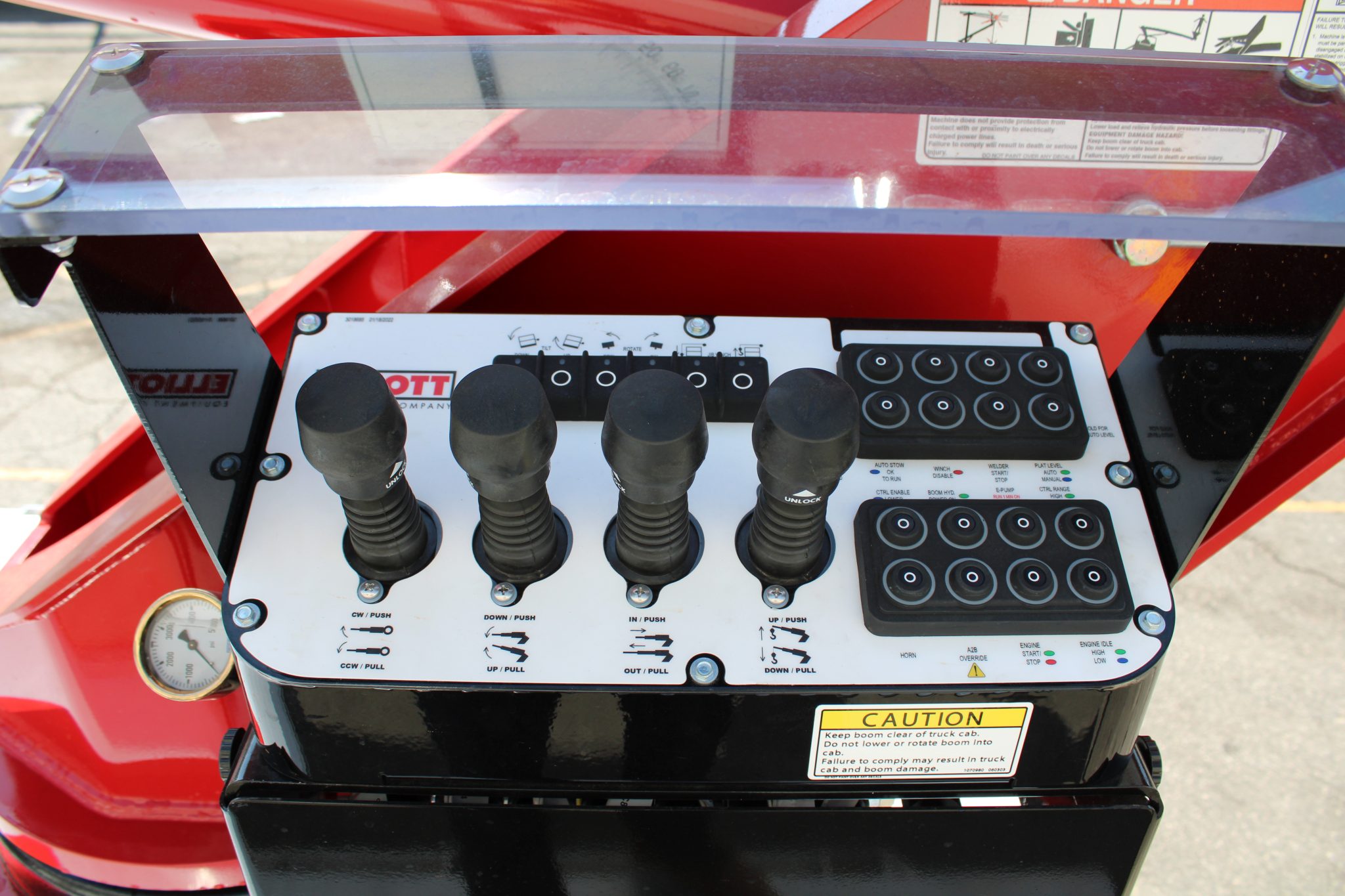

  • Manual ground controls located on side of turret. Remote star/stop from upper and lower controls.

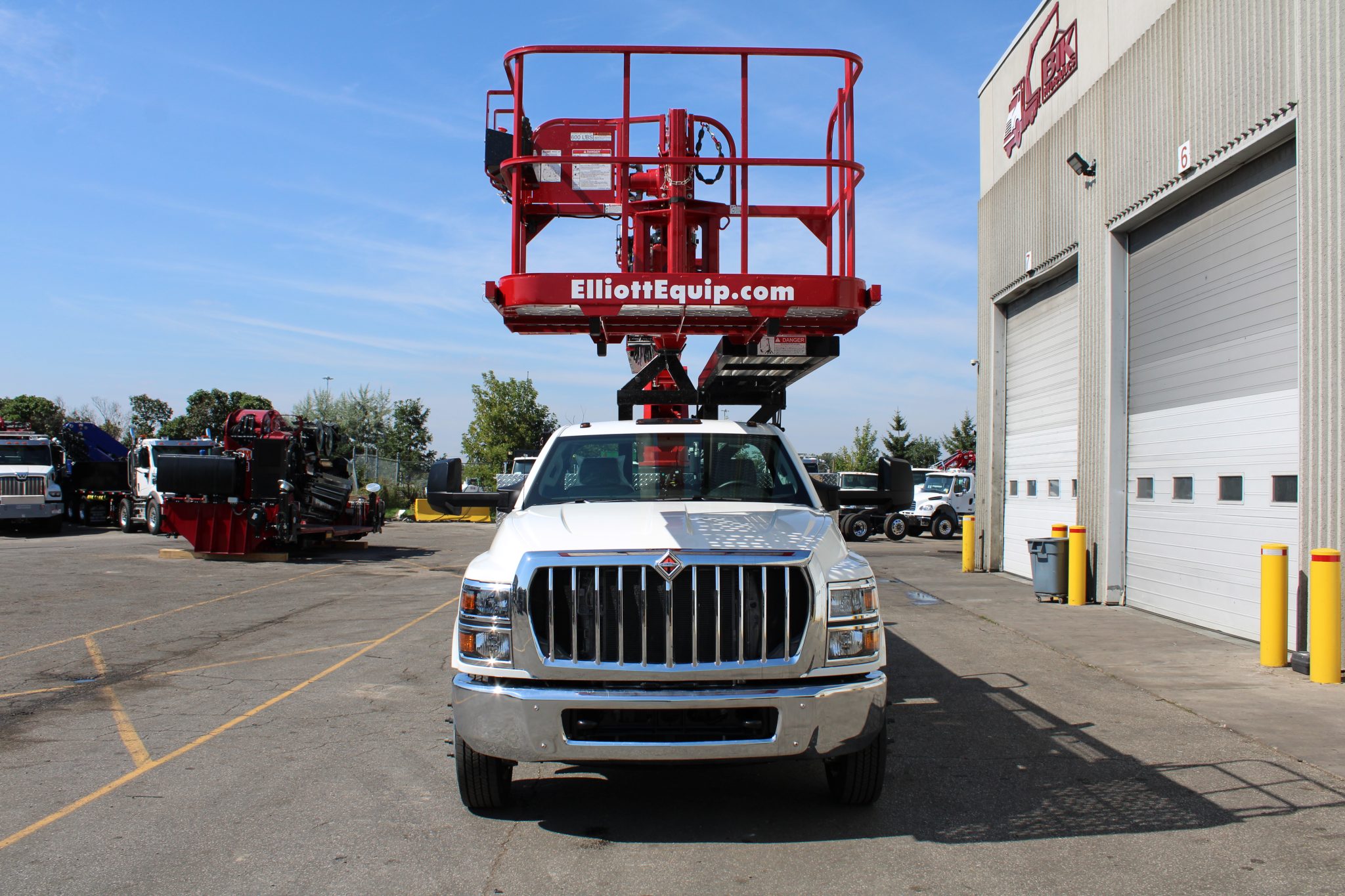

  • Two exposed cable carriers to boom tip. Hydraulic self levelling and rotating 40” x 60” EZR work platform with remote levelling from platform, platform capacity 500 lbs
  • One double acting 7” full displacement long stroke boom elevation cylinders provides smooth, stable elevation.
  • Continuous off set turret rotation with no stops with ball bearing slewing bearing and self locking gear box.
  • Hydraulic OUT and DOWN “MH” stabilizers at base with a 18’ spread, “A” frame secondary stabilizers at front Load Holding Valves on each cylinder for Safety and Security of Operator and Load

Included Options Are:

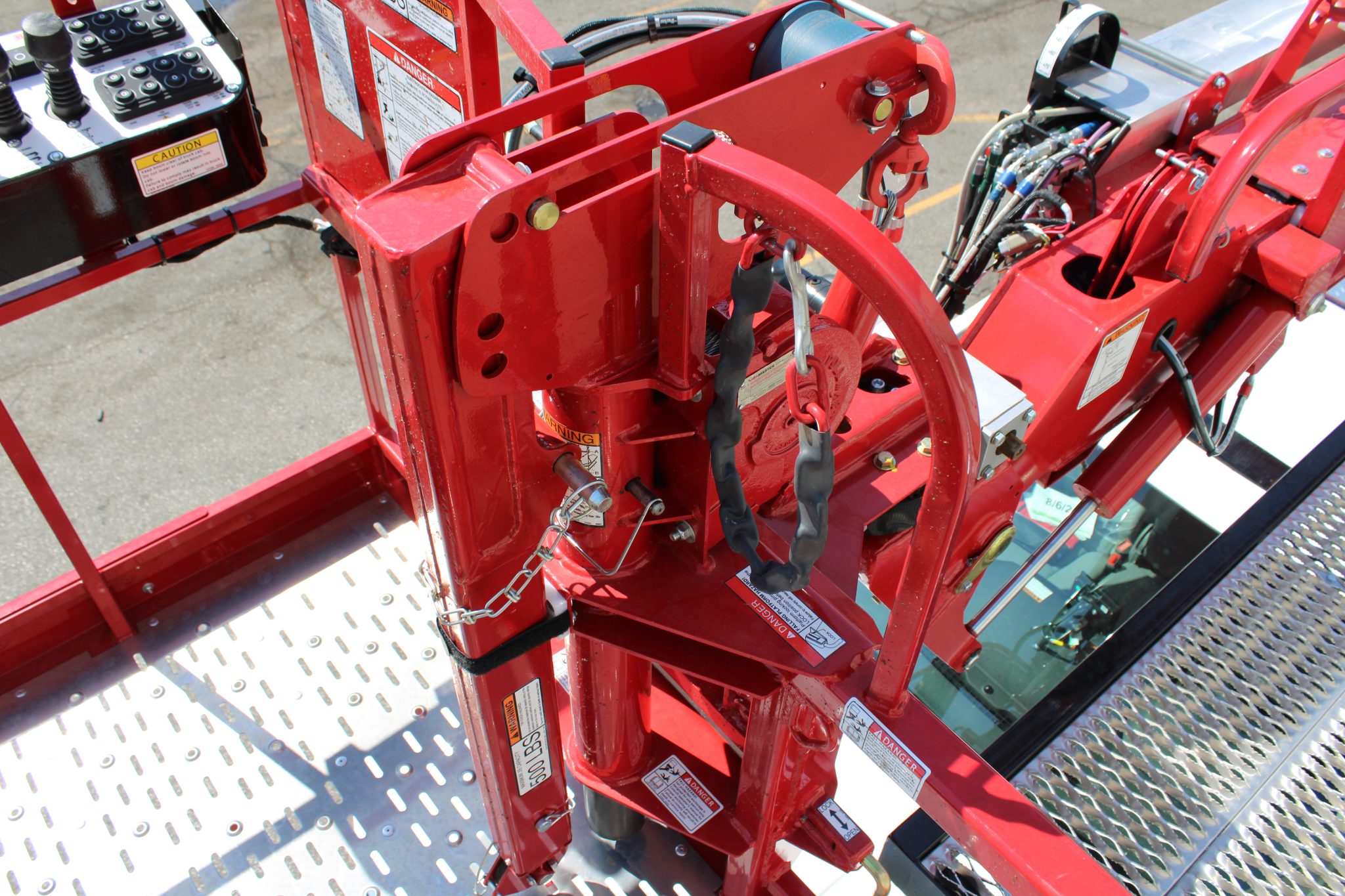

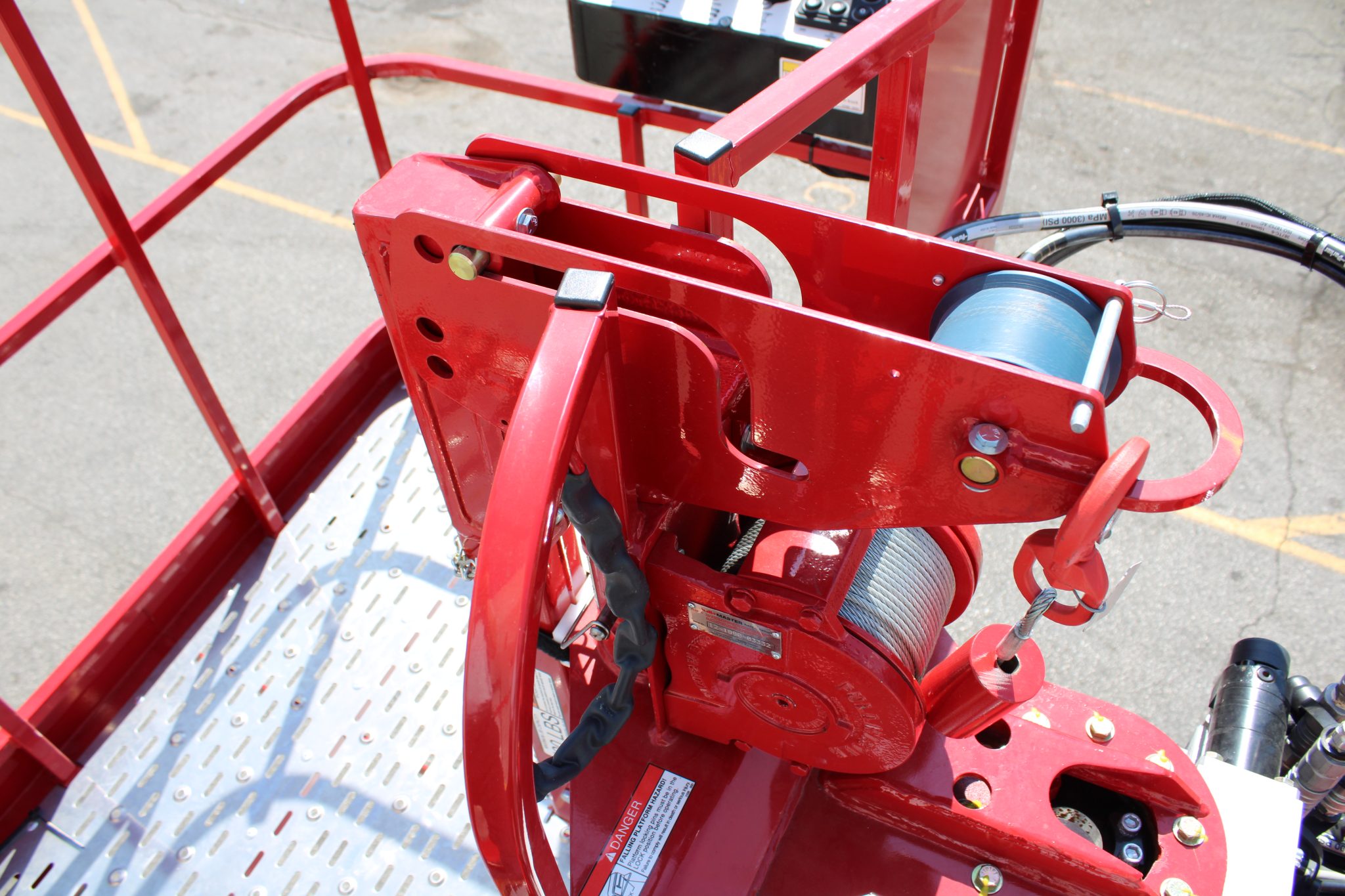

• Platform mounted jib with hydraulic winch
• 2,000 lb rated Main Boom Winch (crane winch)
• 110 V power supply to work platform
• Sign forks on platform (2 pcs)
• 16’ x 96” Aluminum bed, Truck cab windshield guard, steel carrier cover
• 8’ Aluminum cross box, 24” x 36” tall with doors on each side mounted at front of deck
