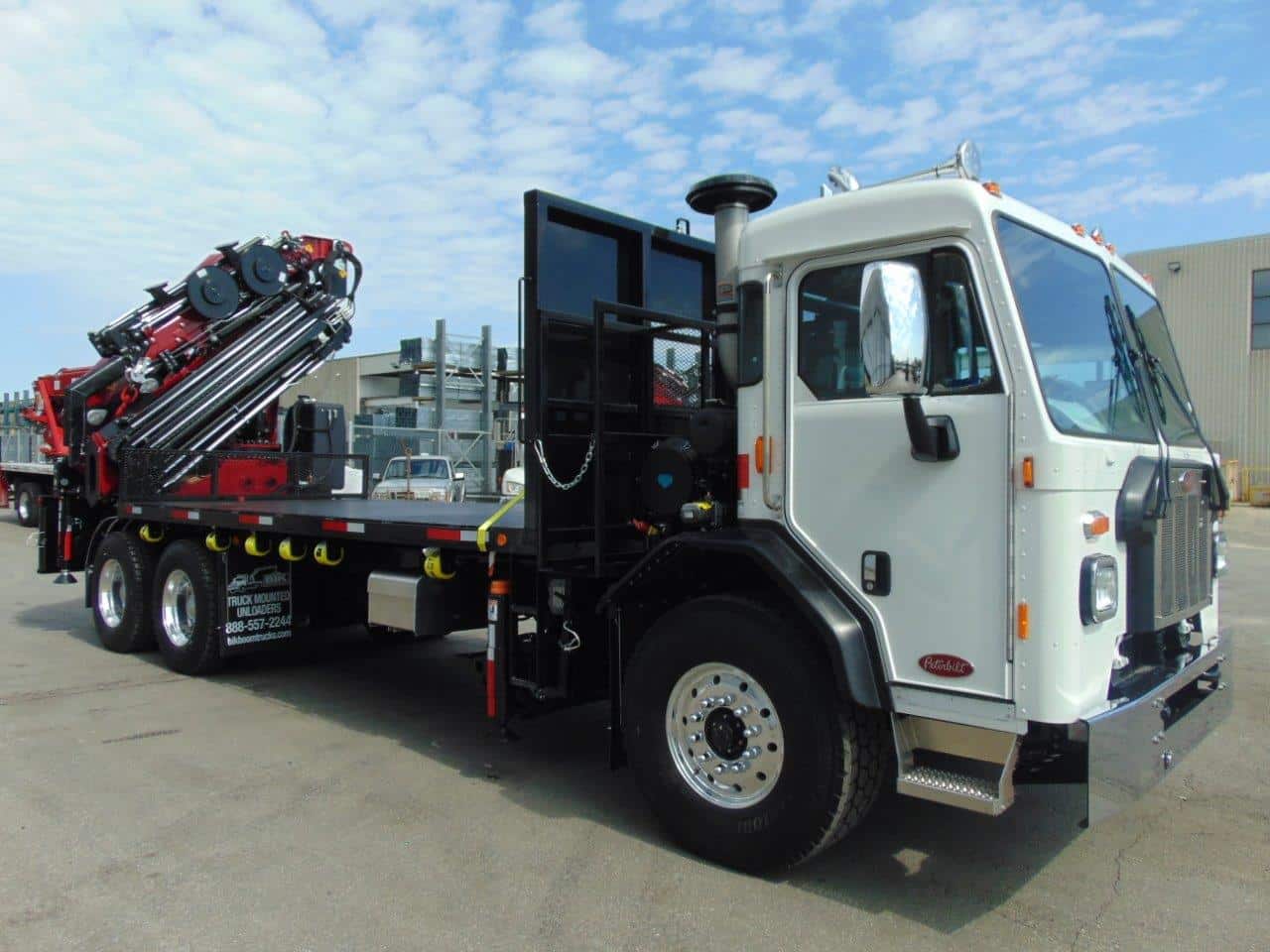

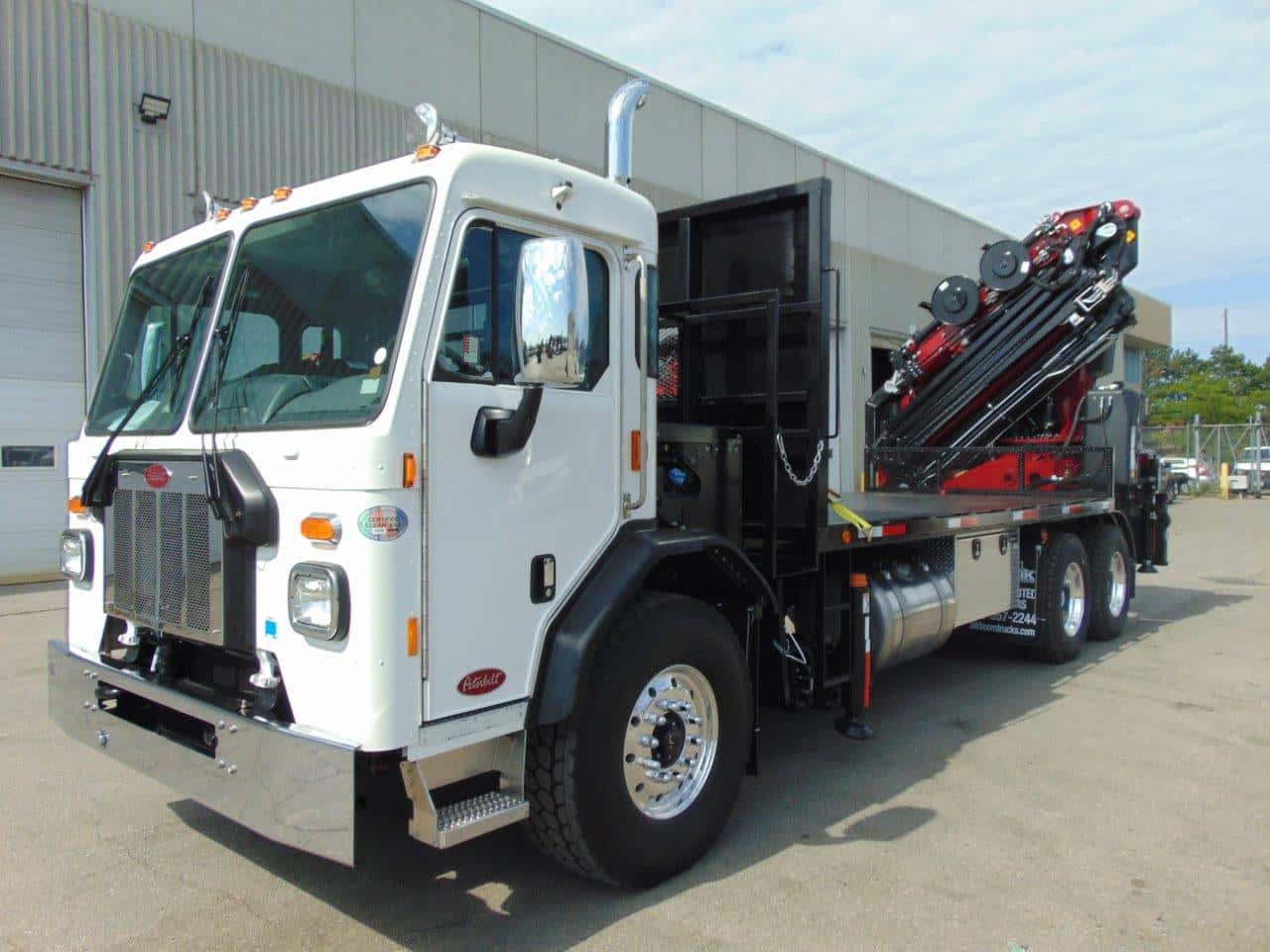

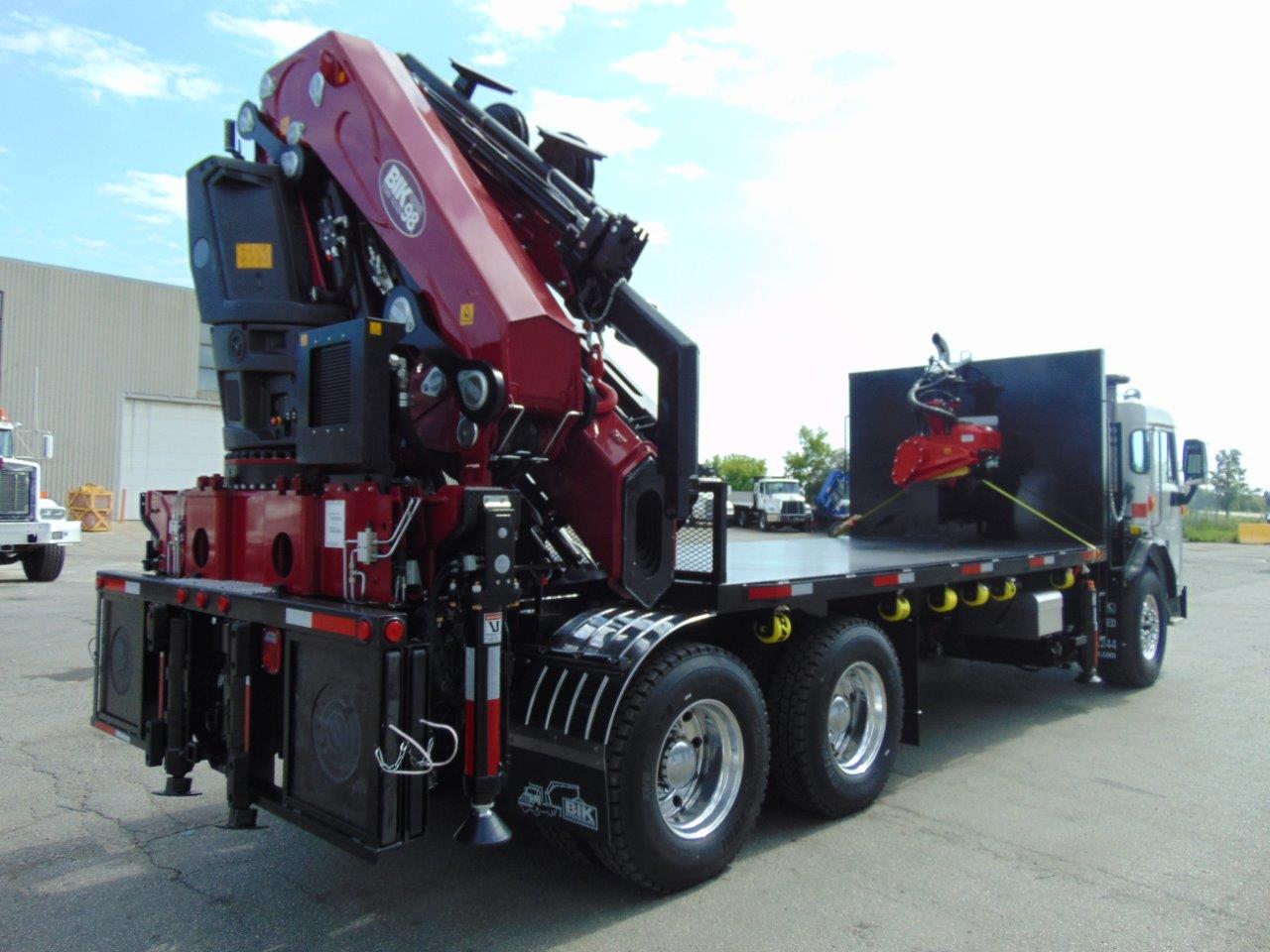

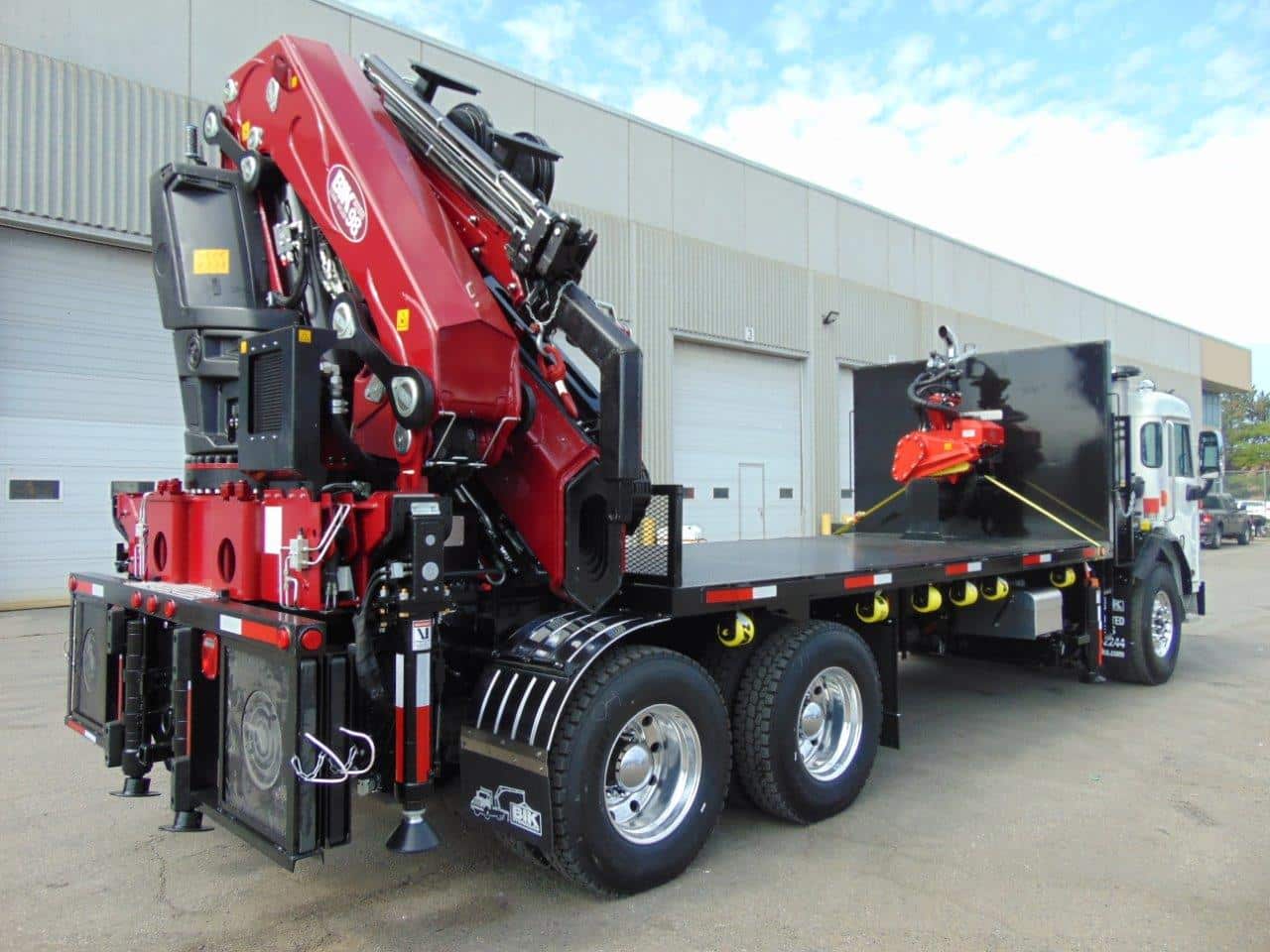

NEW BIK TREE-CARE SERIES TC-98/104 ON NEW PETERBILT 520

Hydraulic out & down stabilizers, 3-hydraulic extensions to 46′ Horizontal reach (58′ vertical)
Horizontal Capacity:
- - 6,000 lb @ 15’7″
  - 4,150 lb @ 21’6″
  - 3,100 lb @ 27’9″
  - 2,290 lb @ 34′
  - 1,810 lb @ 40′
  - 1,480 lb @ 46’3″
408 Degrees Rotation on Main Hydraulic Slewing , Crane Painted PM Blue, Double pilot operated on slewing and pilot operated check valves on all cylinders, Hydraulic Extra Wide Main outriggers at pedestal – 21′ 9″ span
Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS Proportional Valve Controls – single sided operator control station
SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control Radio
Remote includes: 5-micro speed reducing settings at handheld, emergency stop, 2-batteries with in-cab charger, 50′ back-up cord
Hydraulic OUT and Hydraulic DOWN 2-sided stabilizers w/round foot pads welded to bottom of cylinder.
Hydraulic Overload Protection – simplified system that prevents boom from overload
15 degree negative angle at main/2nd arm, – Load Holding Valves on each cylinder for Safety and Security of Operator and Load
Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision
Load Tested & Engineer Certified – Installed either back of cab or rear, with Integral sub-frame to meet or exceed all CMVSS Standards.

8′ wide plus pockets with rub rails
Checker plate steel deck surface
48″ Headboard with grab handles and ladders both sides, gloss black along with the rest of the deck
8-winches and straps (30′)
DOT tape and Reflectors, Winch bar & holder
Mud flap anti sail bracket to be integral/enforced. Platform to be painted

Airbrakes, 300 HP Cummins Diesel, Allison Auto Trans
12,000 lb fronts w/11R22.5 tires
21,000 lb rears, aluminum rims

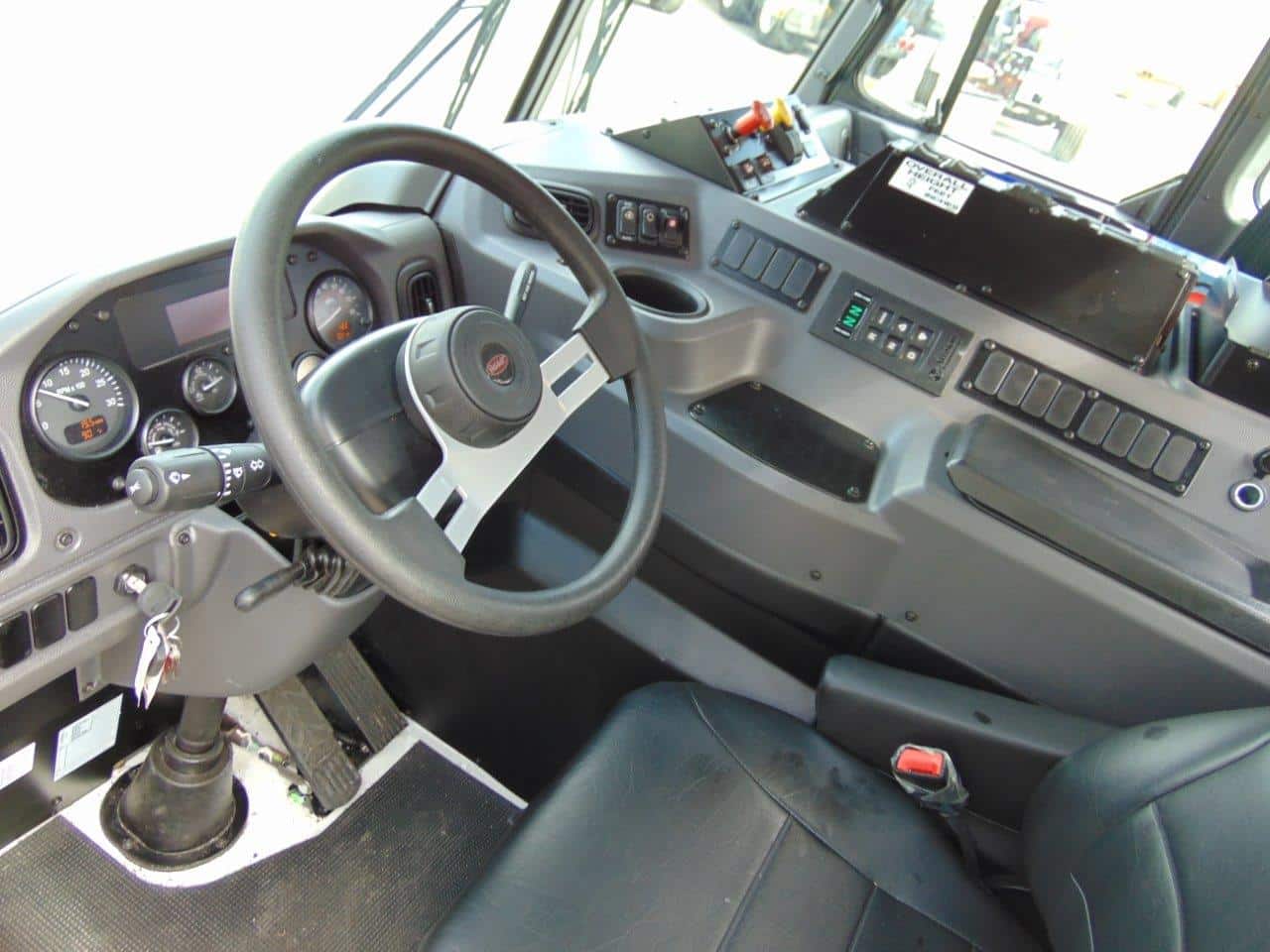

Air Cond, 2-man pass seat, cruise, power windows/locks
tilt/tele steering, stereo, 2-man pass seat, Alum fuel tank, exterior sun visor, chrome bumper and grille, white color cab, etc.

Extra Options :

Pair of PVC stabilizer pads with holders
Drawplate installed at rear of truck with pintle hitch & Electric brake actuator.
