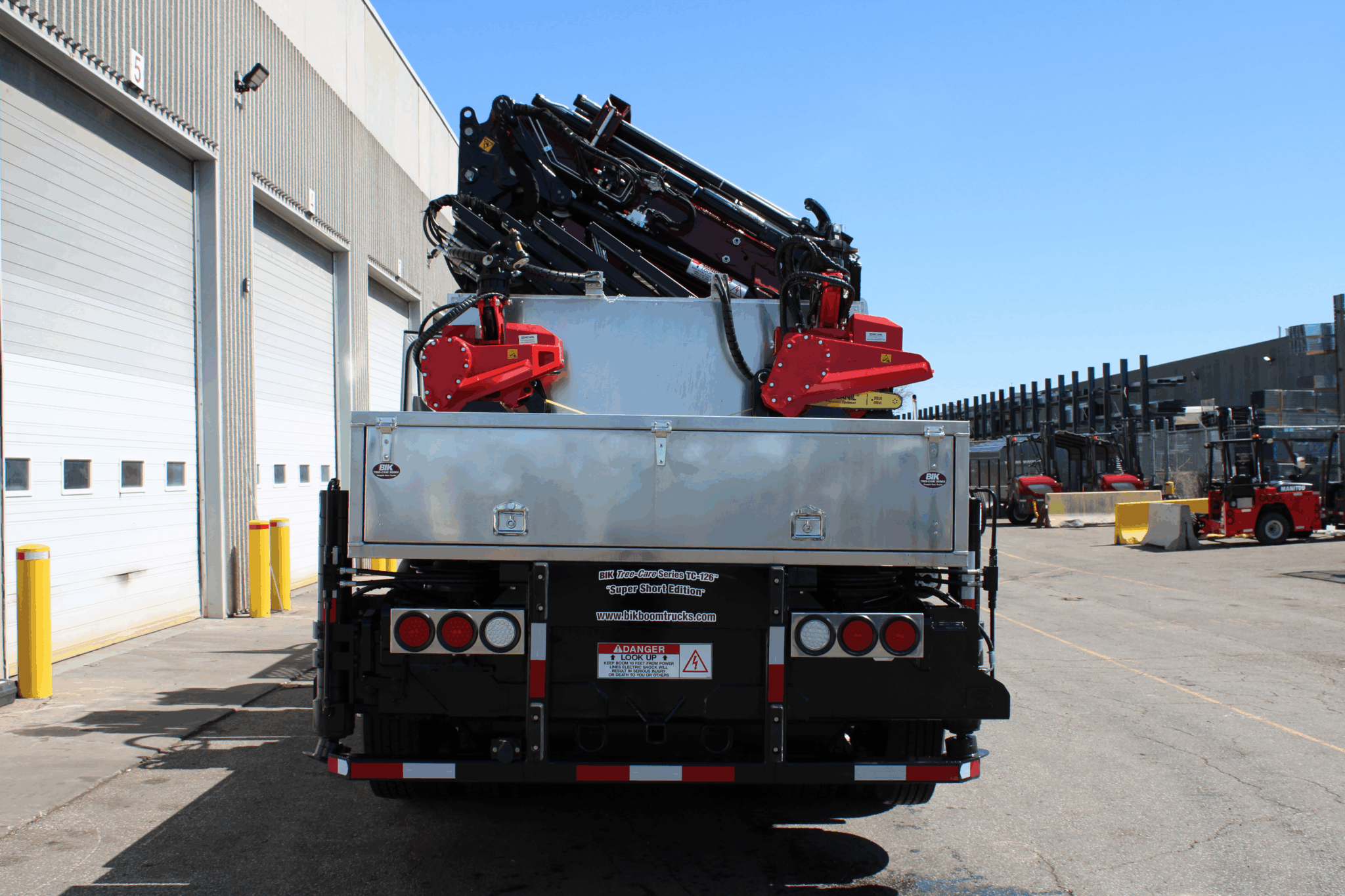

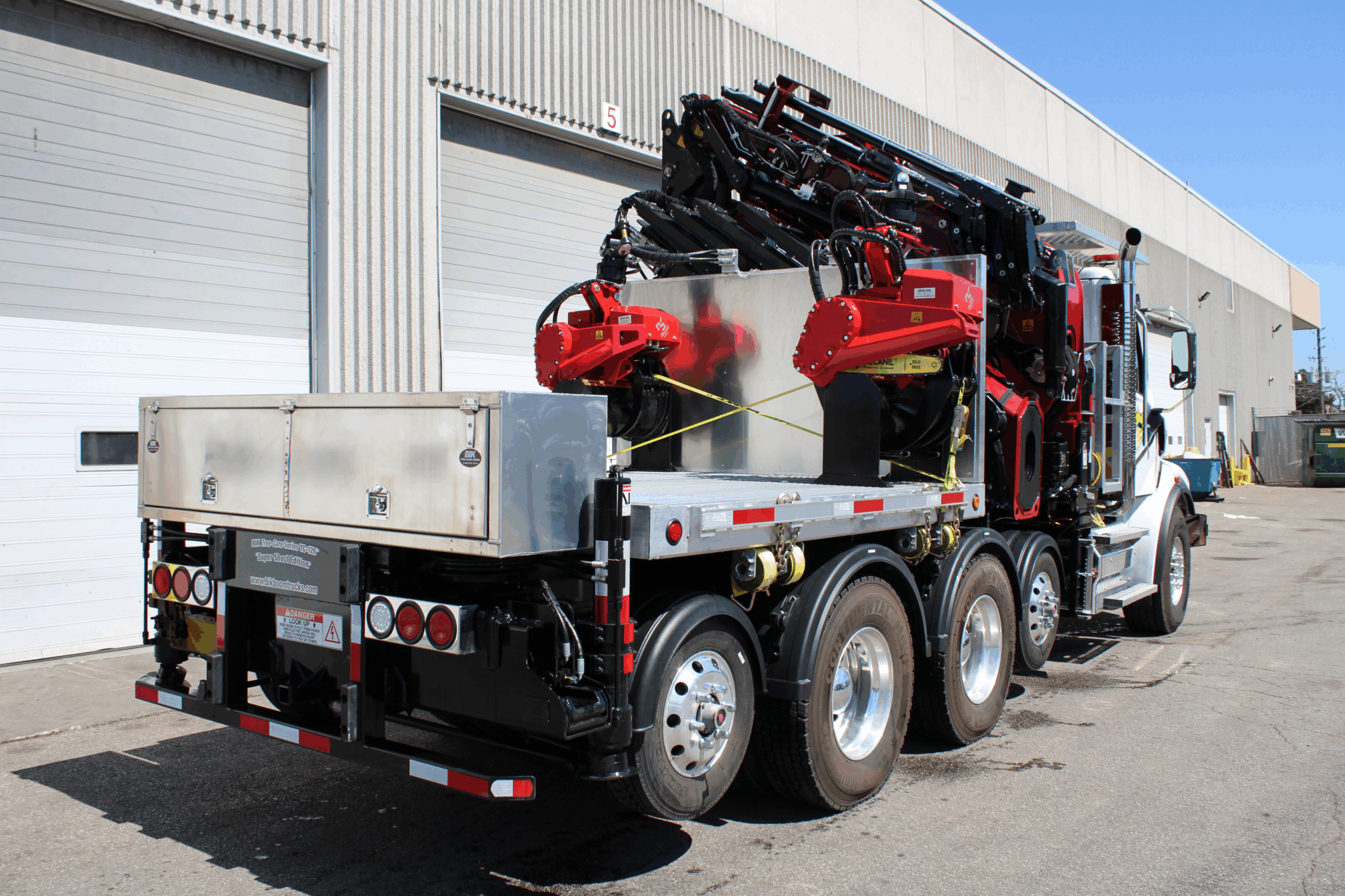

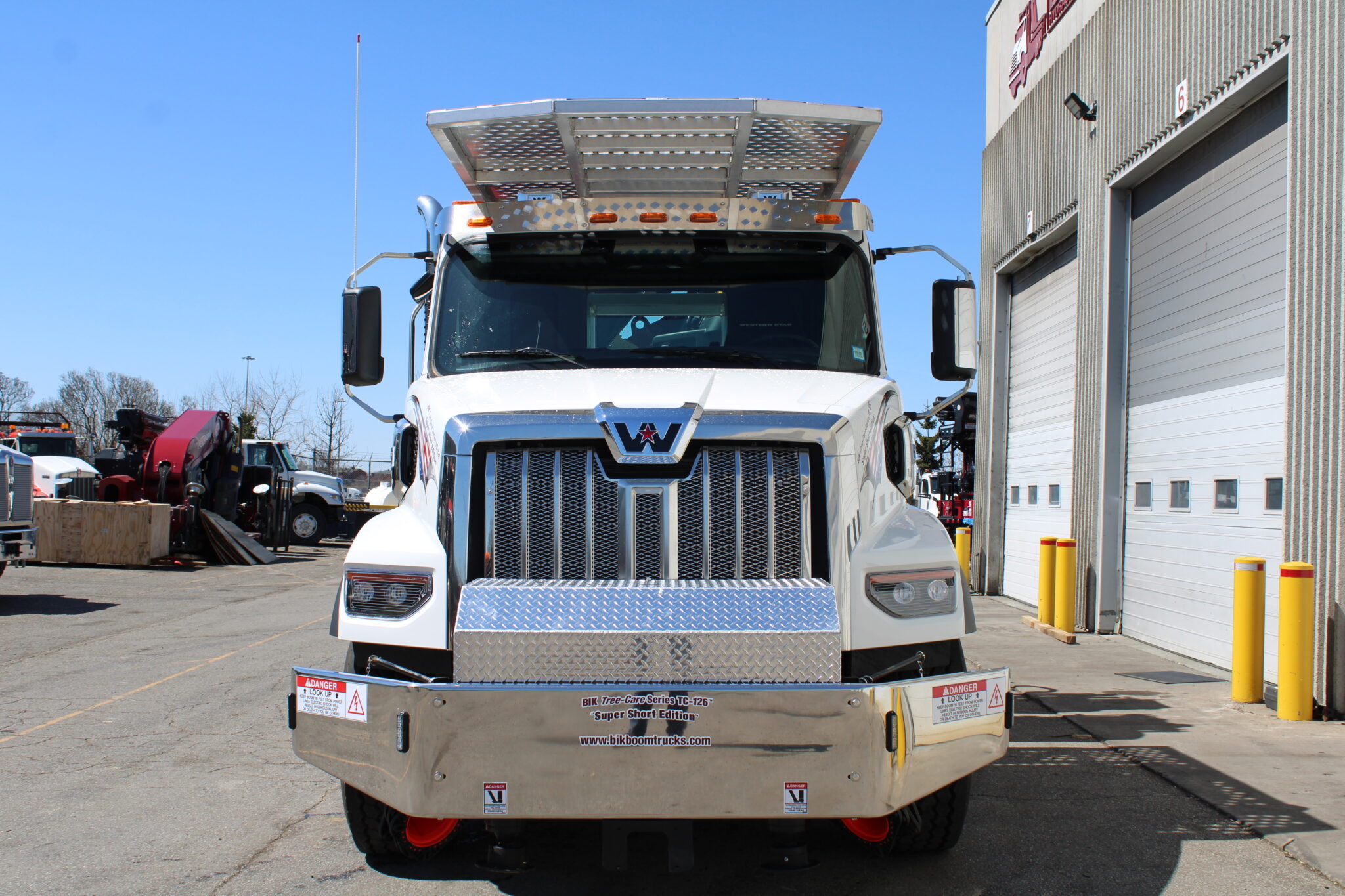

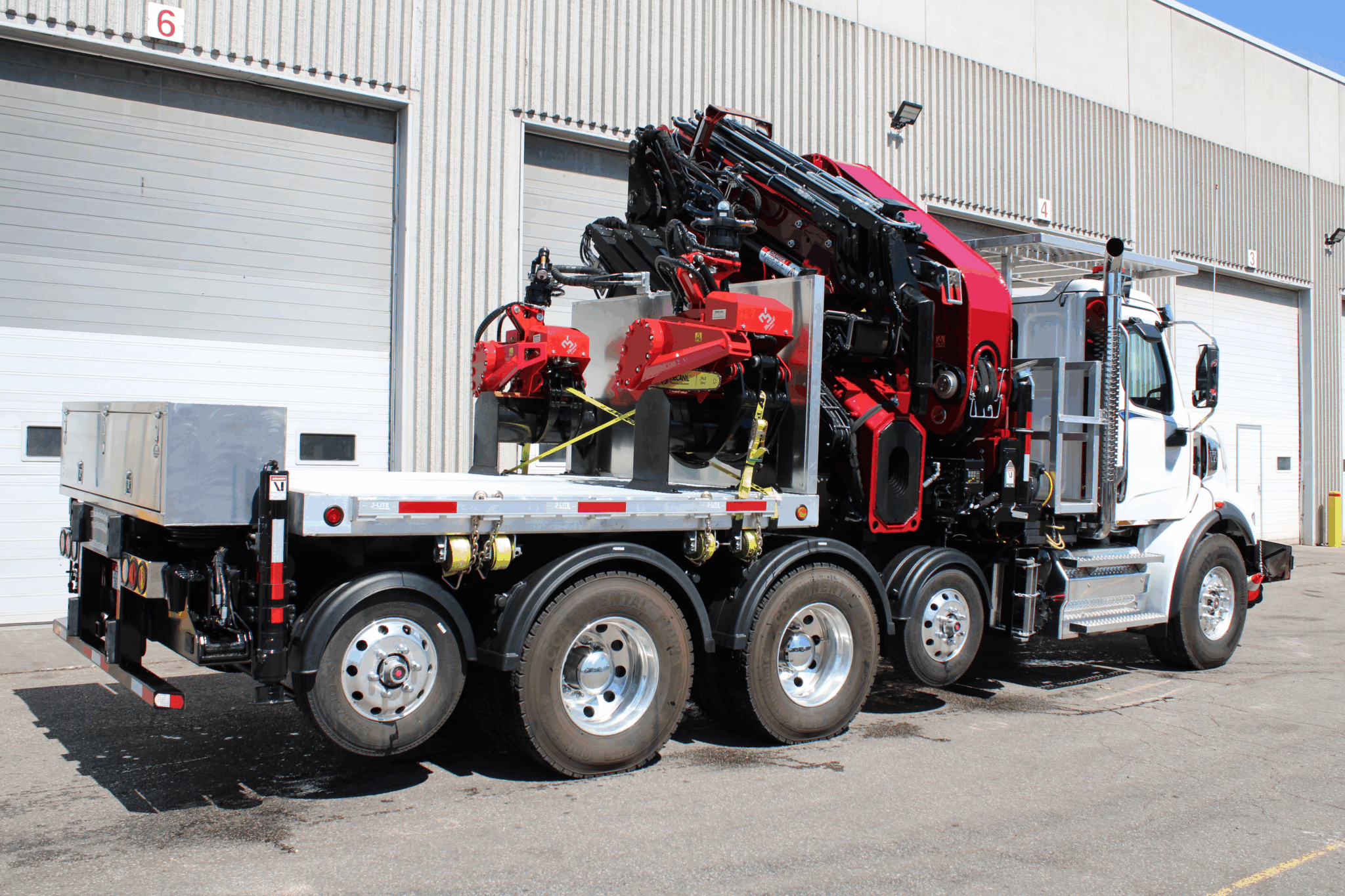

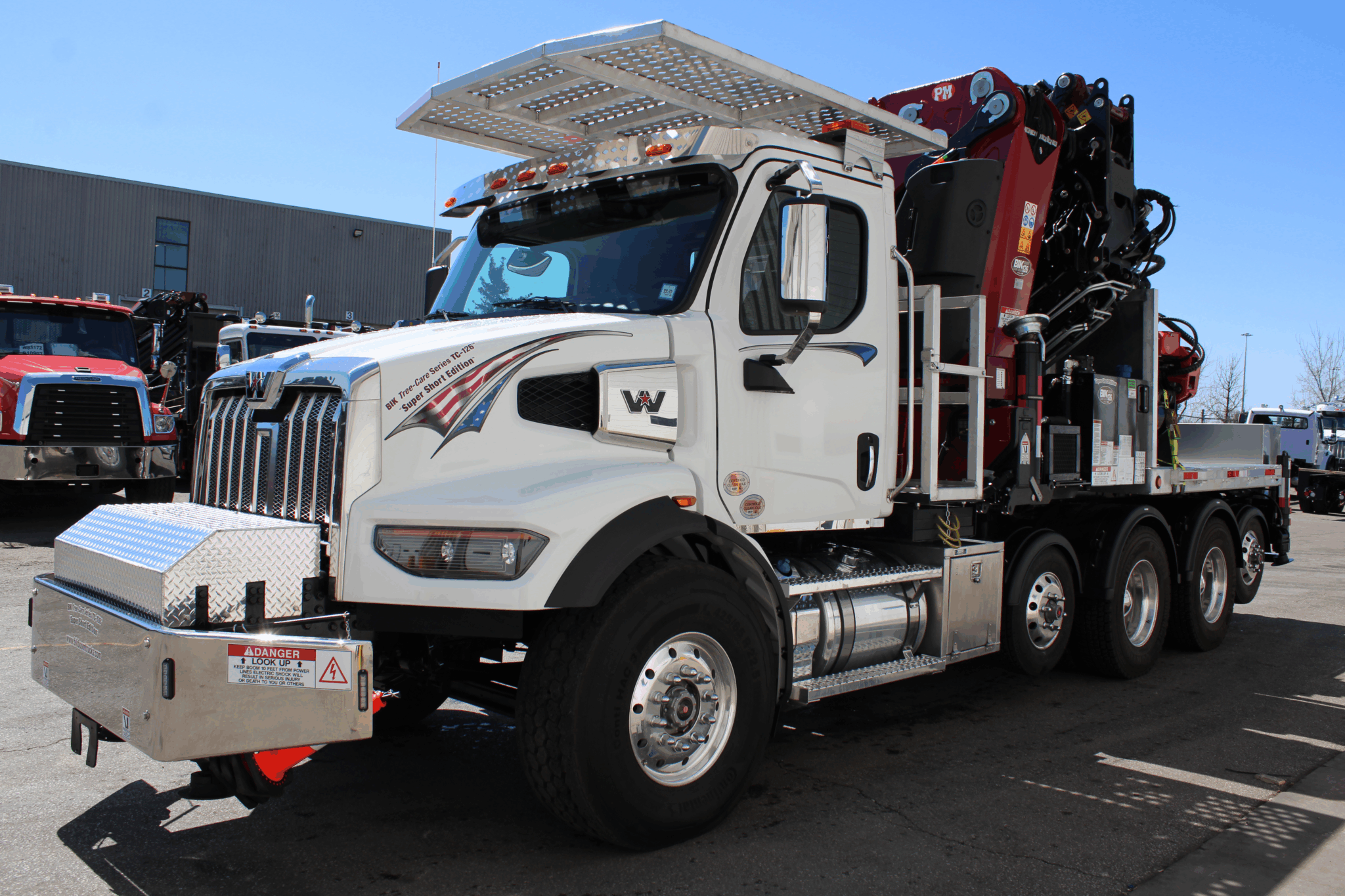

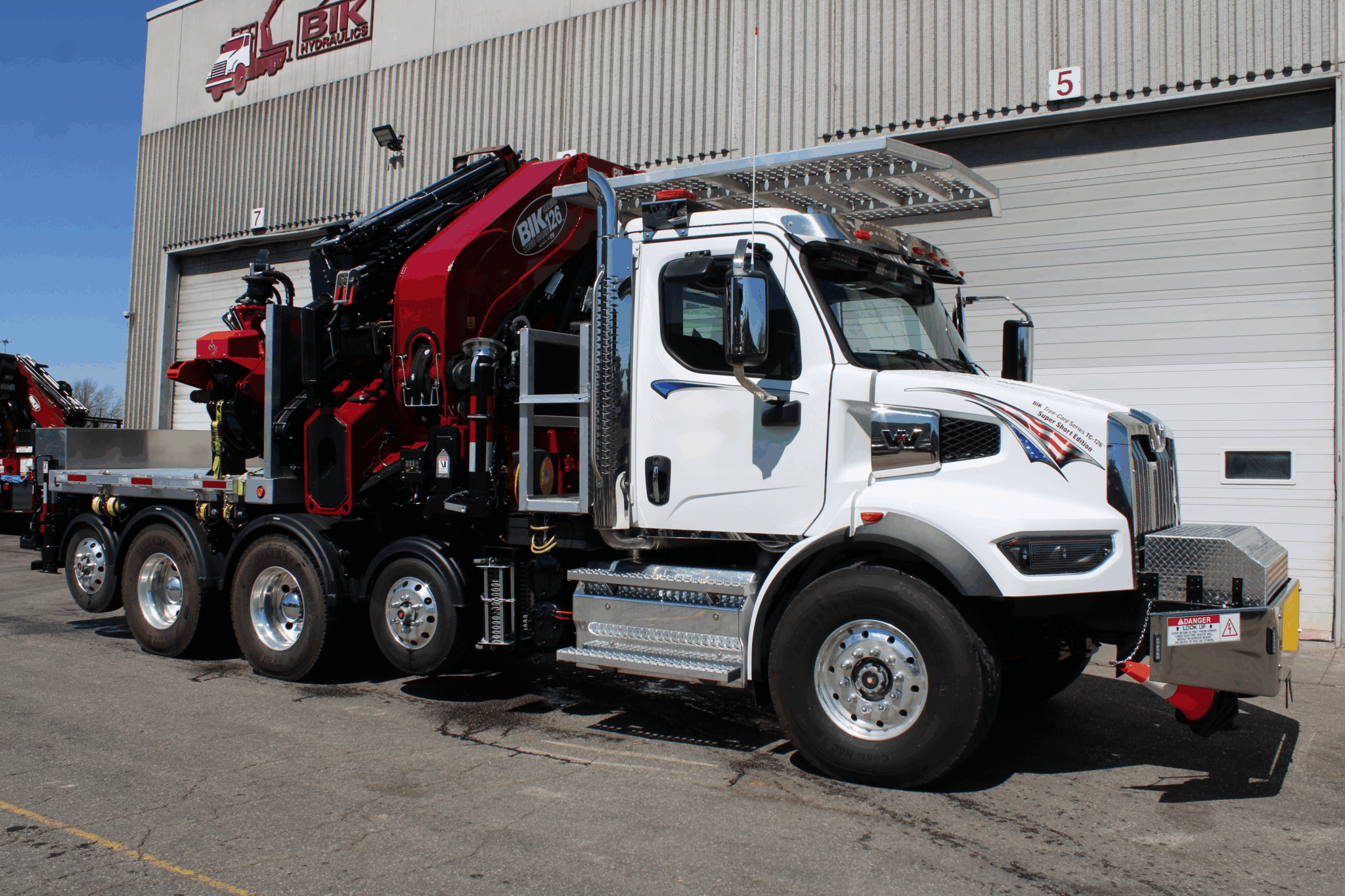

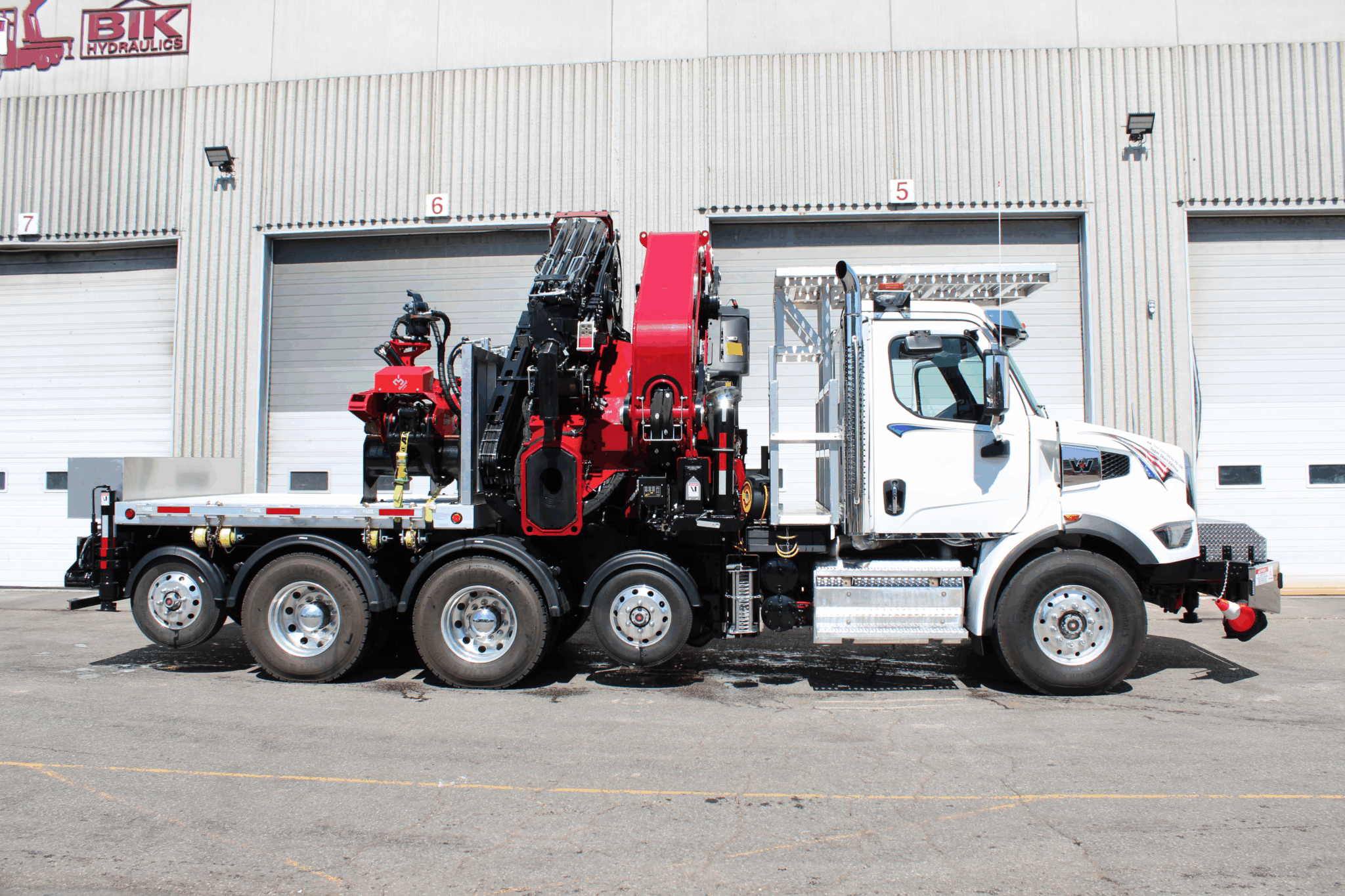

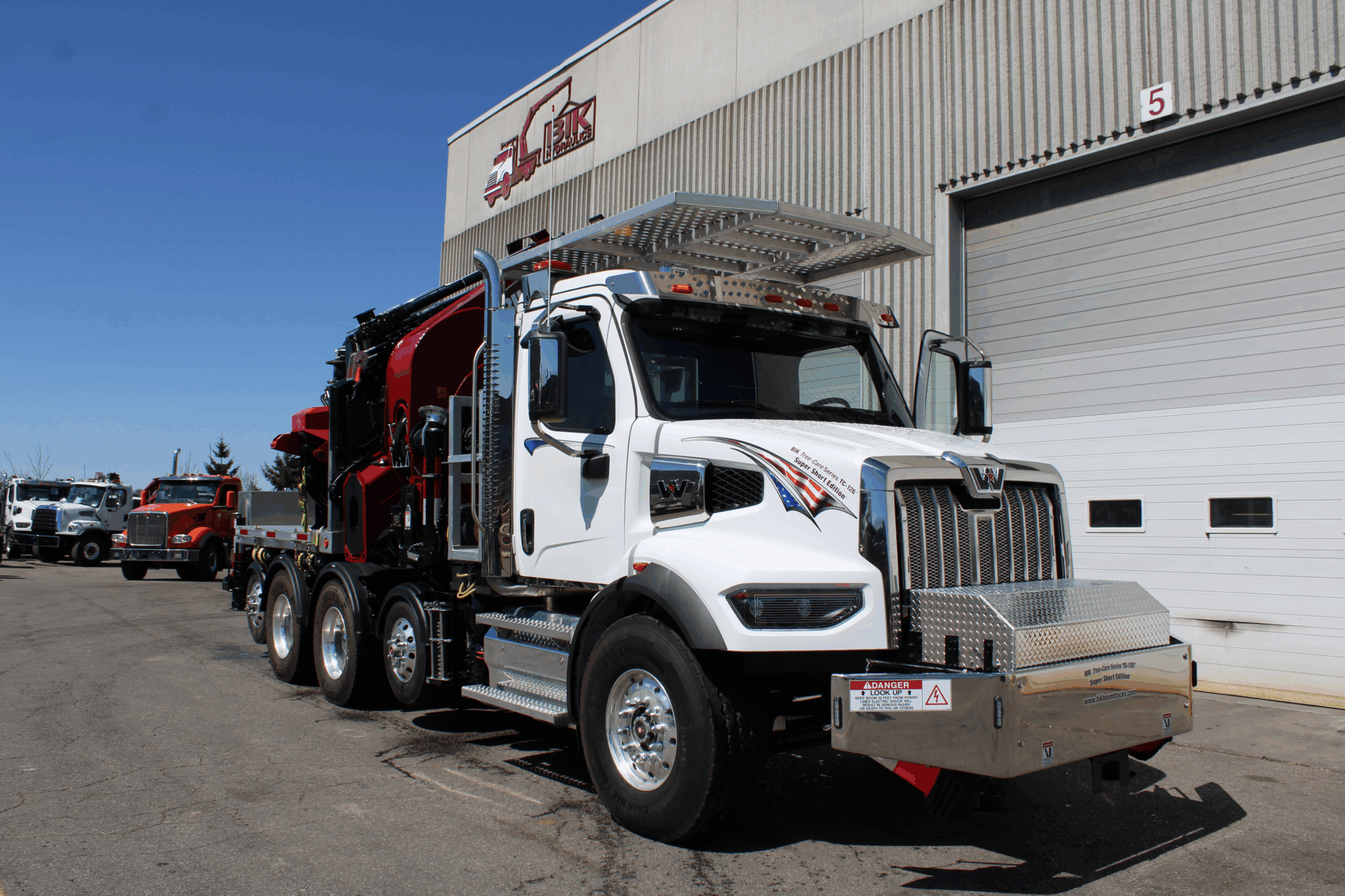

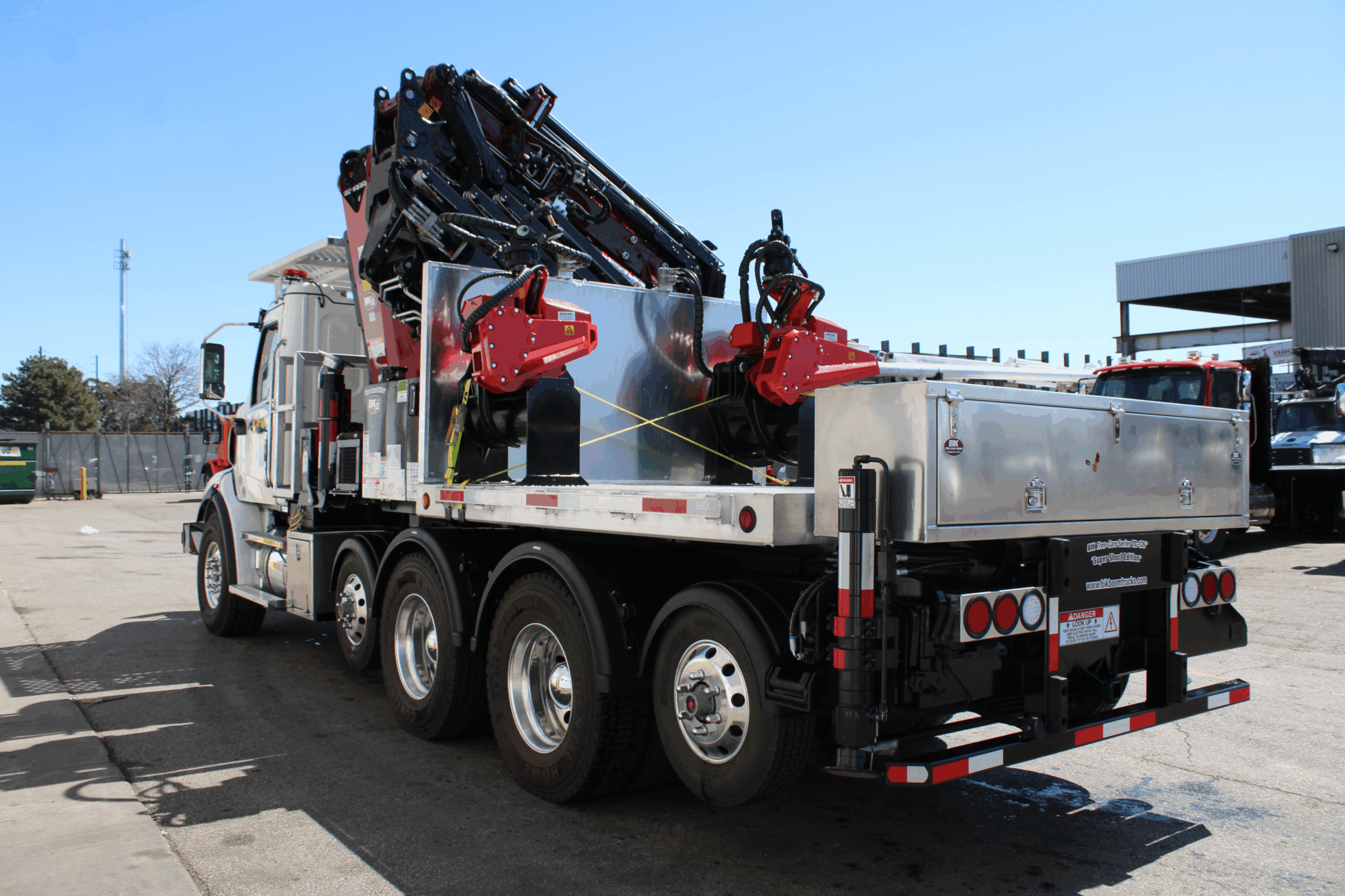

NEW Bik Tree Care Series TC-126 Super Short Edition On New Western Star 49x

Boom Details

• New – BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom “Super Short Edition” – 8 ext Knuckle Boom w/ 6 ext jib + 1-grapple ext
• Including (1) Grapple extension in jib, Boom Capacity of 2,280 lbs @ 126’ Vertical Reach (up to 138’ Vertical Reach with 2-manual pull out extn)
• Main Boom Horizontal Capacity: 36,800 lb @ 16’, 20,000 lb @ 23’ , 16,000 lb @ 33’, 11,000 lb @ 47’, 7,200 lb @ 67’
• Jib Horizontal Capacity: 3,200 lb @ 76’, 2,200 lb @ 100’ , 2,000 lb @ 104’, 1,630 lb @ 110’, w/Grapple extn to 114’
• Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib Continuous Rotation and Dual Planetary Gear Motors, – 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
• – Remote or Side Control Pad Operated 6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted,
• b) 2- Rear Aux Stabilizers behind t/a drives – 26’ Span, c) Dual front bumper mounted Stabilizers at front integral truck frame extension
• Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46.
• Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
• Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
• DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
• Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord, – Boom Factory Painted Dark Red/Burgundy prior to assembly
• Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards, – Load Chart in FT. & LBS.
• Engineer Stability tested & Certified for 360 Degree / 100% load chart capacity in all area’s & zones when stabilizers are fully deployed

Truck Details

• 2024 Western Star 47X 5-axle Day: 88,000 lb GVWR
• CUMMINS 12X Diesel, 500 HP Jake Brake, Endurant 18 spd Automatic trans.
• 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
• (2) x 9,000 lb self steer lift axle – one ahead and one behind t/a
• 46,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on Aluminum rims, High RBM Double Frame w/integral front frame extension (for front stabilizer)
• Dual Chrome polished Exhaust on both side of cab
• Chromed Grille & Bumper
• single 100 gallon alum fuel tank
• Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Air ride cab, full differential locks, spot light, fog lights, exterior sun visor, truck cab white etc…
• Options Included:
• (6) pcs – PVC stab pads w/holders
• Custom re-enforced manual extn for grapple
• New Mecanil SG-280 Grapple saw
• Alum Mat rack & Cab protector
• 9’ aluminum flat deck with 48” headboard & 7’ wide Alum storage box at rear
• (1) – 24” alum storage box
