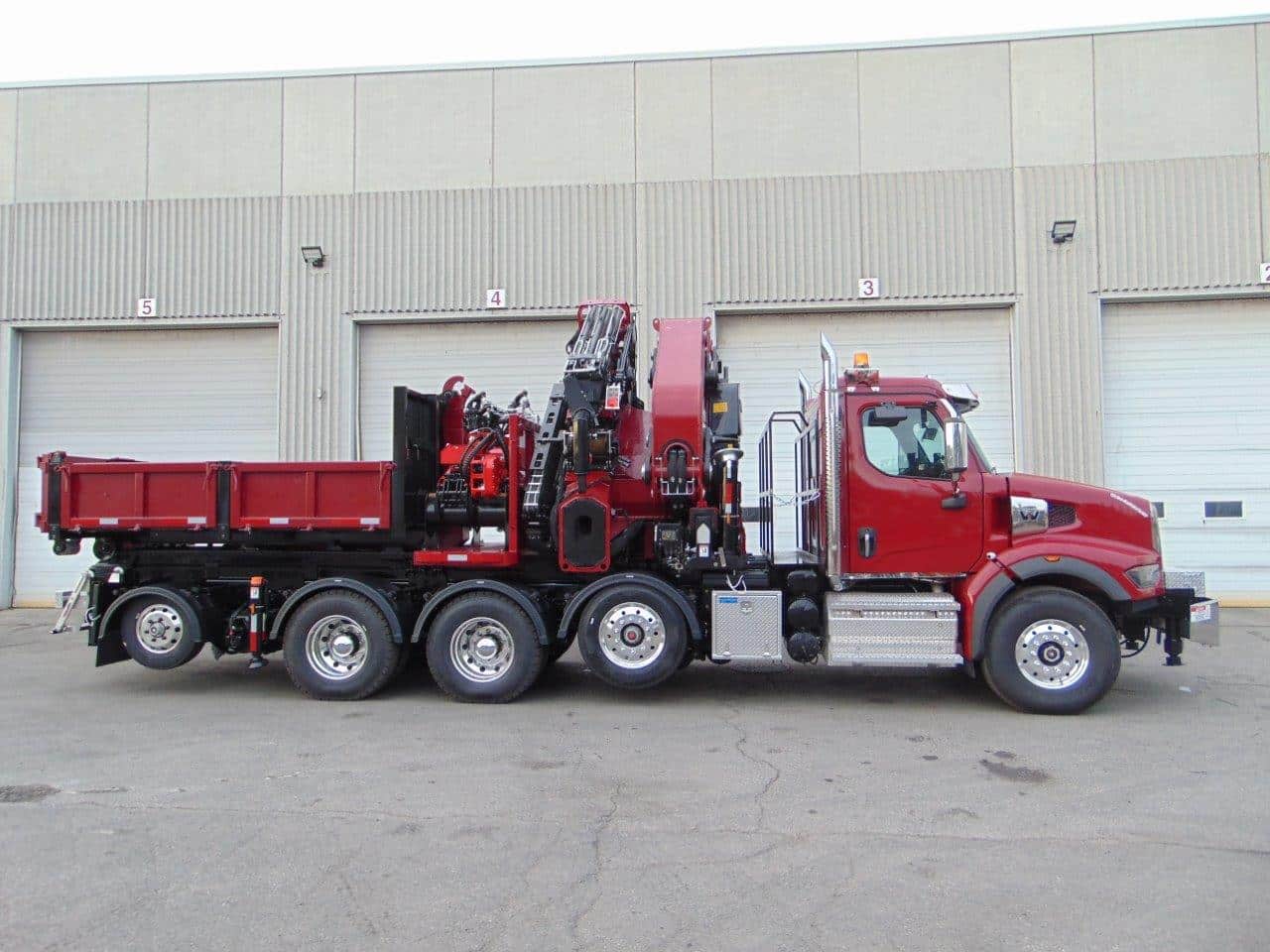

NEW Bik Tree Care Series TC-126 On New Western Star 49x With Bik Series Hook Lift

Boom Details

• New – BIK Tree-Care Series TC-126 – 100 ton/m Knuckle Boom
• 8 ext Knuckle Boom w/Detachable 6 ext jib + 1-grapple extn
• Including (1) Grapple extention in jib
• Boom Capacity of 2,050 lbs @ 126’ Vertical Reach
• Main Boom Horizontal Capacity:
• 36,800 lb @ 16’
• 20,000 lb @ 23’
• 16,000 lb @ 33’
• 11,000 lb @ 47’
• 7,200 lb @ 67’
• Jib Horizontal Capacity:
• 3,200 lb @ 76’
• 2,200 lb @ 100’
• 2,000 lb @ 104’
• 1,630 lb @ 110’
• w/Grapple extn to 114’
• Power-Link connecting rods at First Boom, Knuckle & Jib, –15 degree negative angle at 1st knuckle, 25 degree negative angle at jib
• Continuous Rotation and Dual Planetary Gear Motors
• 8-Sided Steel Structure Boom Extensions, “Best in Class” High Strength yield
• Remote or Side Control Pad Operated 6 Stabilizers – a) 2- Extra Wide Main outriggers at pedestal – 29’ 10” span – hyd tilting when retracted
• 2- Rear Aux Stabilizers behind t/a drives – 26’ Span
• Dual front bumper mtd Stabilizers at front integral truck frame extension
• Dual Hydraulic Oil Coolers, high pressure return & filter, – 100-gallon oil tank with AW-46 Enviro Friendly Biodegradable Hydraulic Oil
• Lifting winch plumbed to jib end of jib – 4-ton single part line capacity – Ability to completely fold up boom without disconnecting winch
• Power Tronic Electronic System allowing constant crane monitoring & visual display with 5-level stabilizer deployment control system
• DANFOSS Proportional Control Valve mounted on boom column & SCANRECO Proportional Radio Remote Control
• Scanreco Remote Control includes: 2-batteries, in-cab charger, back-up cord
• Boom Factory Painted Dark Red/Burgundy prior to assembly
• Installed back of cab, with custom engineered integral sub-frame by BIK to meet or exceed all CMVSS Standards
• Load Chart in FT. & LBS
• 32” long x 8’ wide – Carry Deck – mounted behind boom with (2) grapple saw holders
• Engineer Stability tested & Certified for 360 Degree / 100% capacity load chart capacity in all area’s & zones when stabilizers are fully deployed

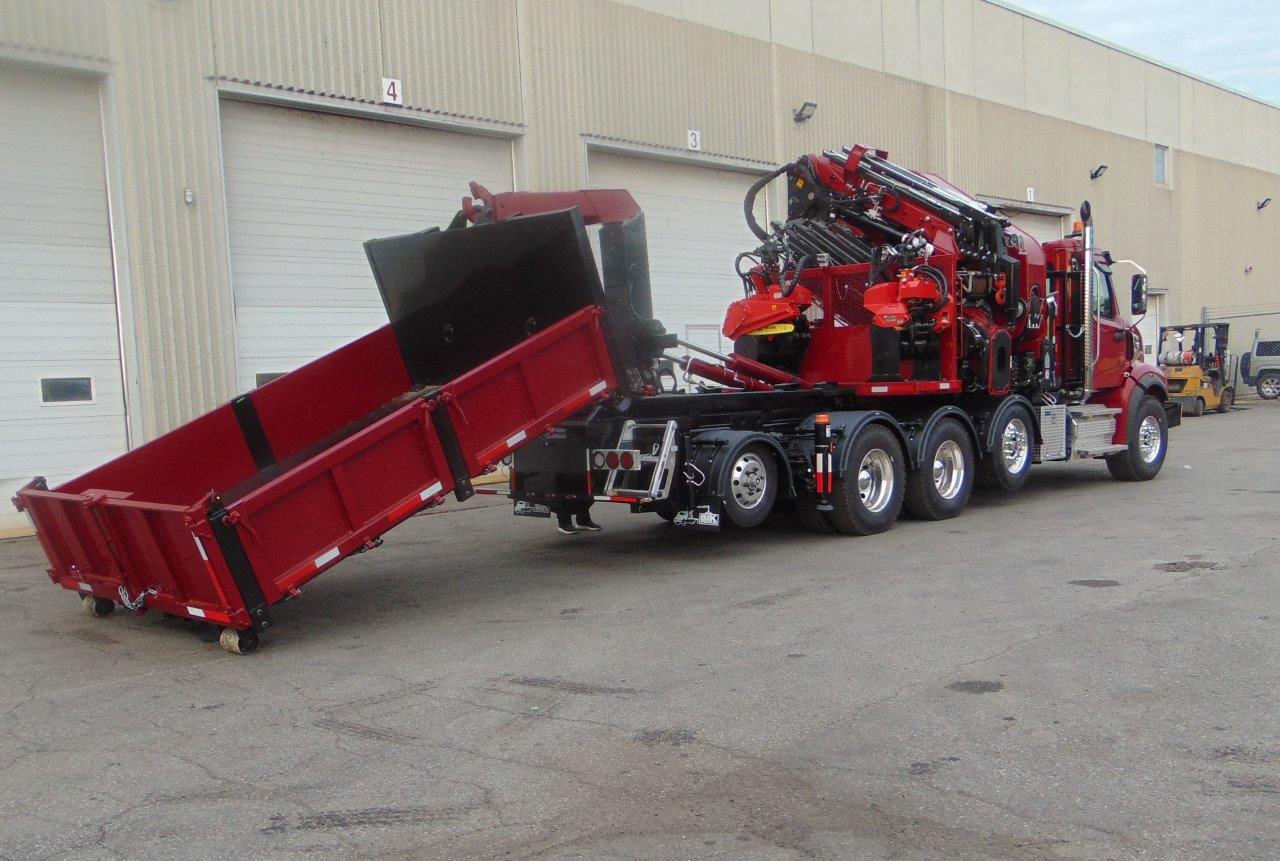

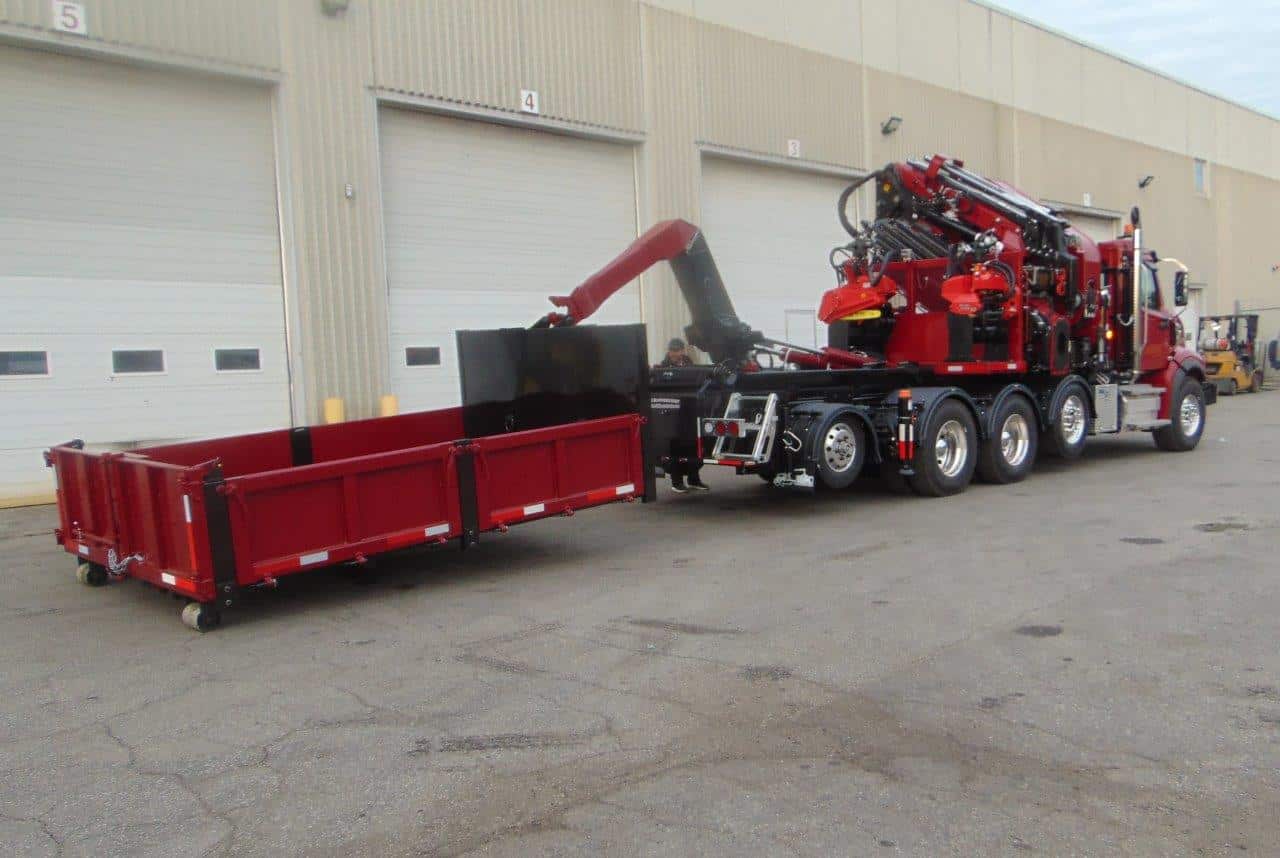

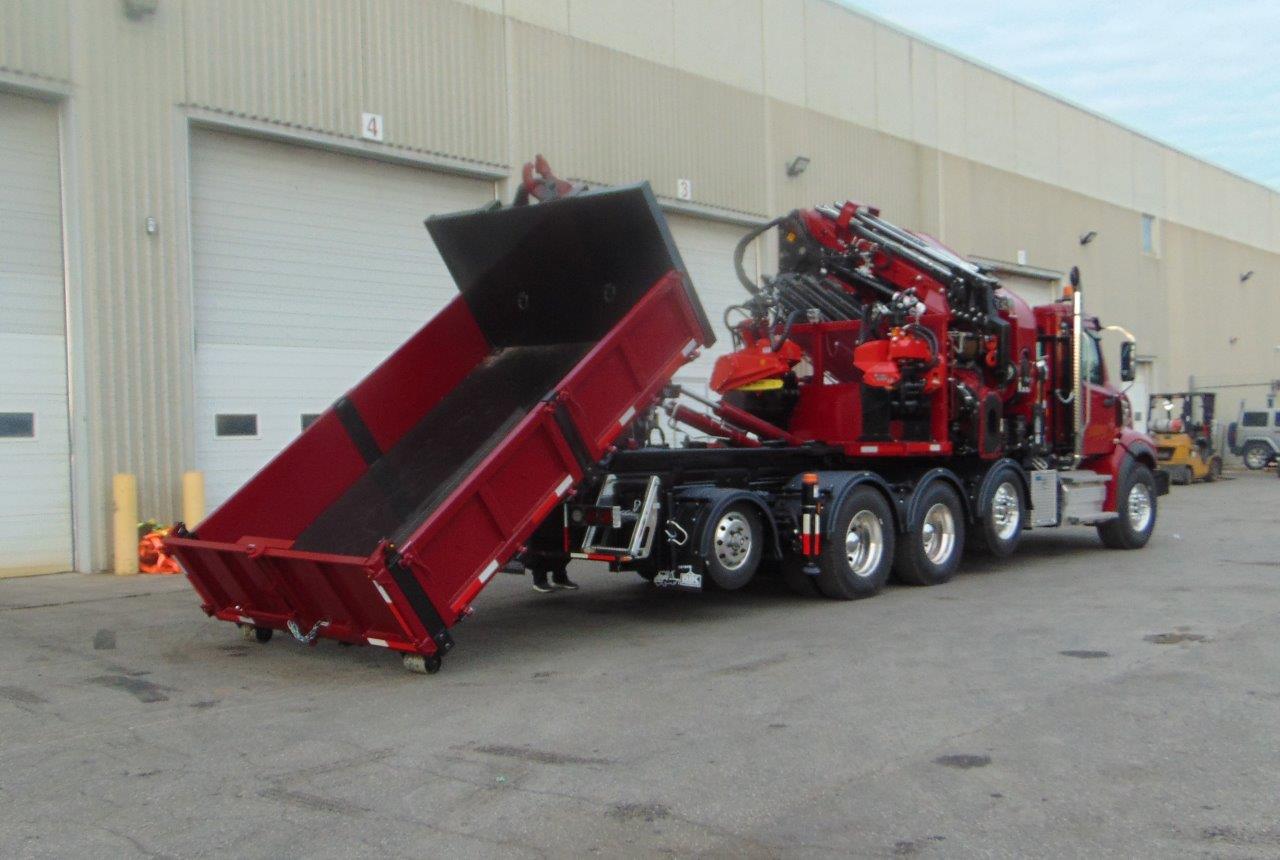

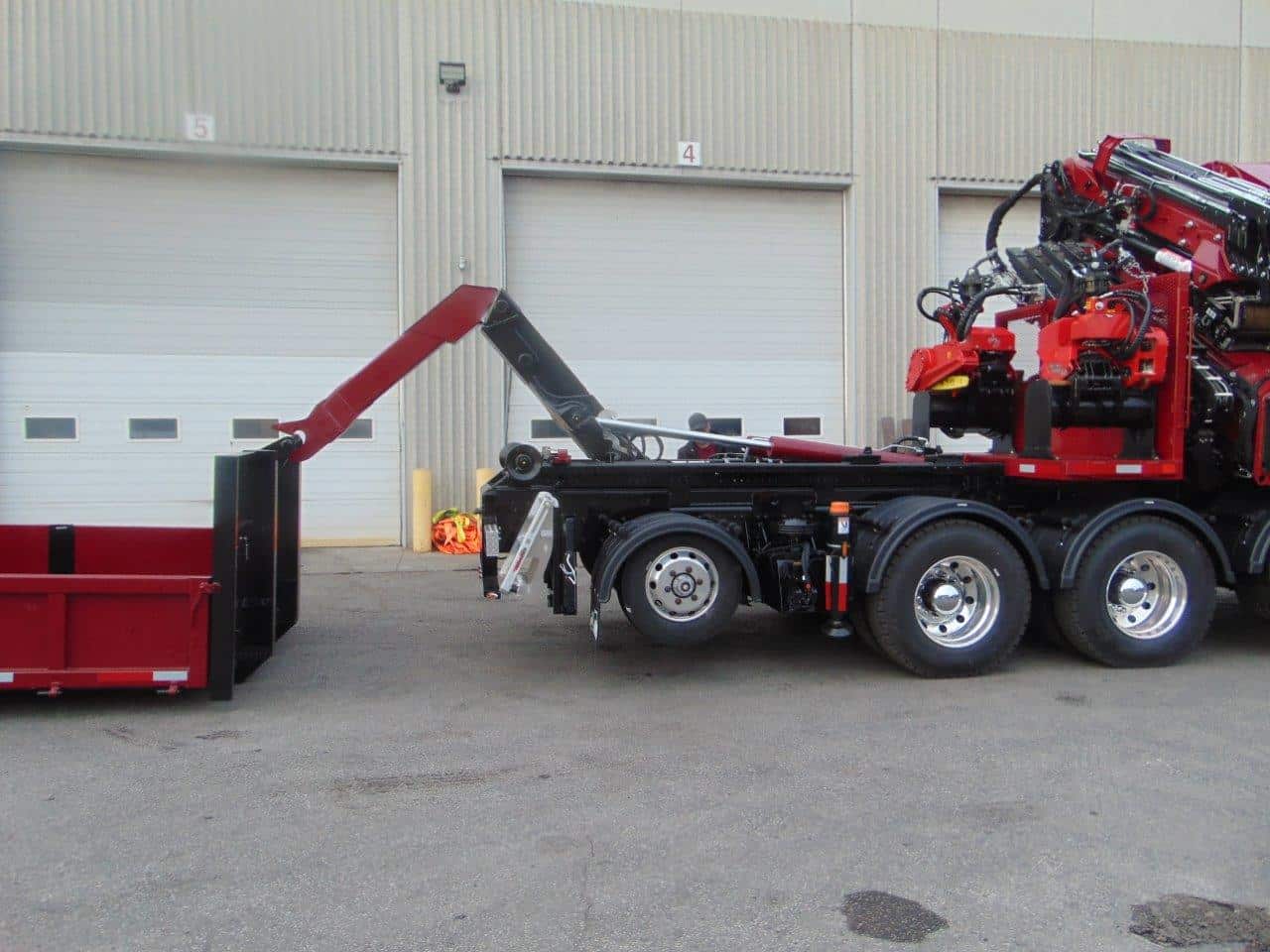

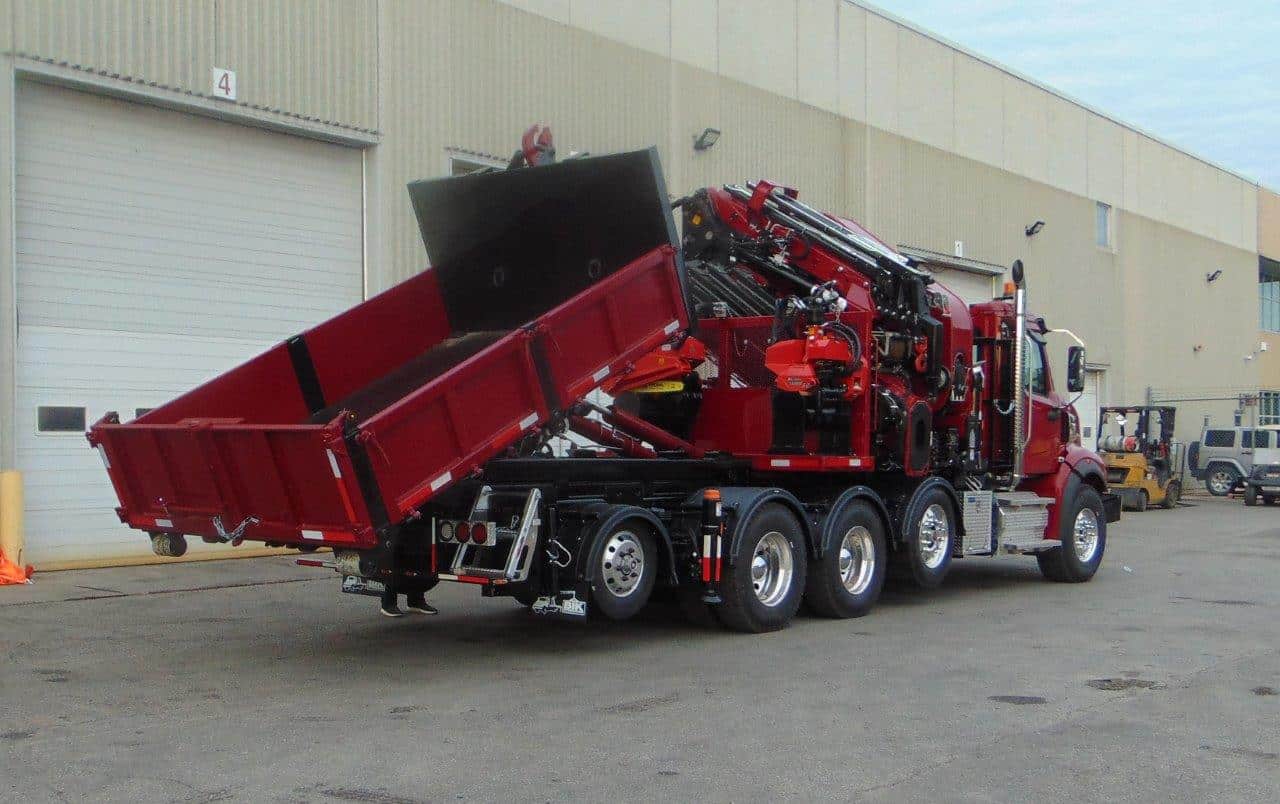

• BIK Hook Lift Series: HL-30S-62-SH
• 30,000 lb capacity
• 62” hook height
• sliding jib arm for containers ranging from 12 to 16’
• 56 degree dumping angle
• cast rear rollers
• In cab controls with cord
• Hydraulic rear body locks
• Cast bi-point articulation body supports
• Painted black with Red Accents.
• 12’ Long x 8’ Wide

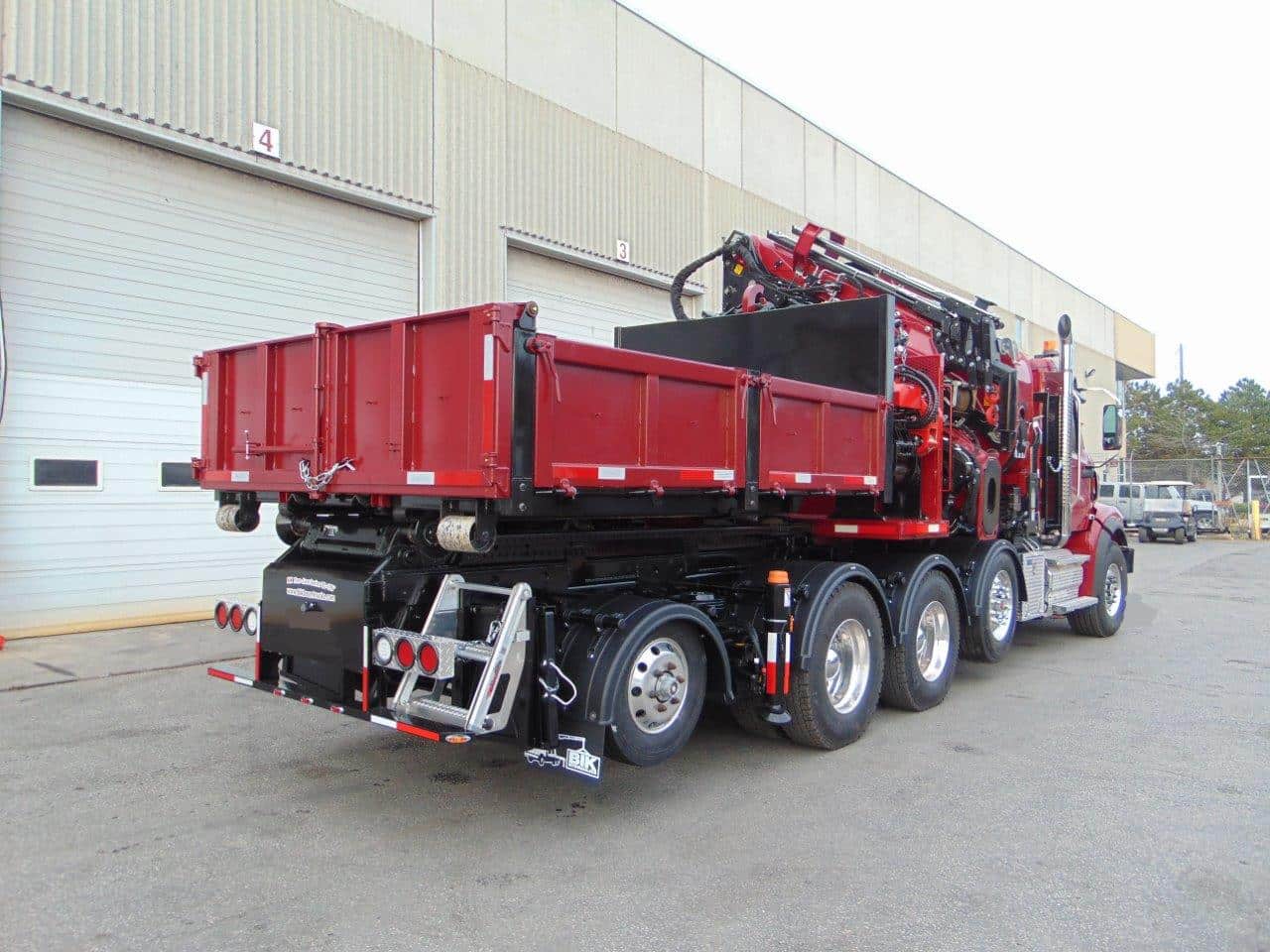

• Steel Contractors bin
• Dual fold down and removable sides
• Removable barn doors at rear, custom removable
• Ramps to drive on contractors equipment into bin
• (6) pcs D-ring hooks inside box – painted black/red colors

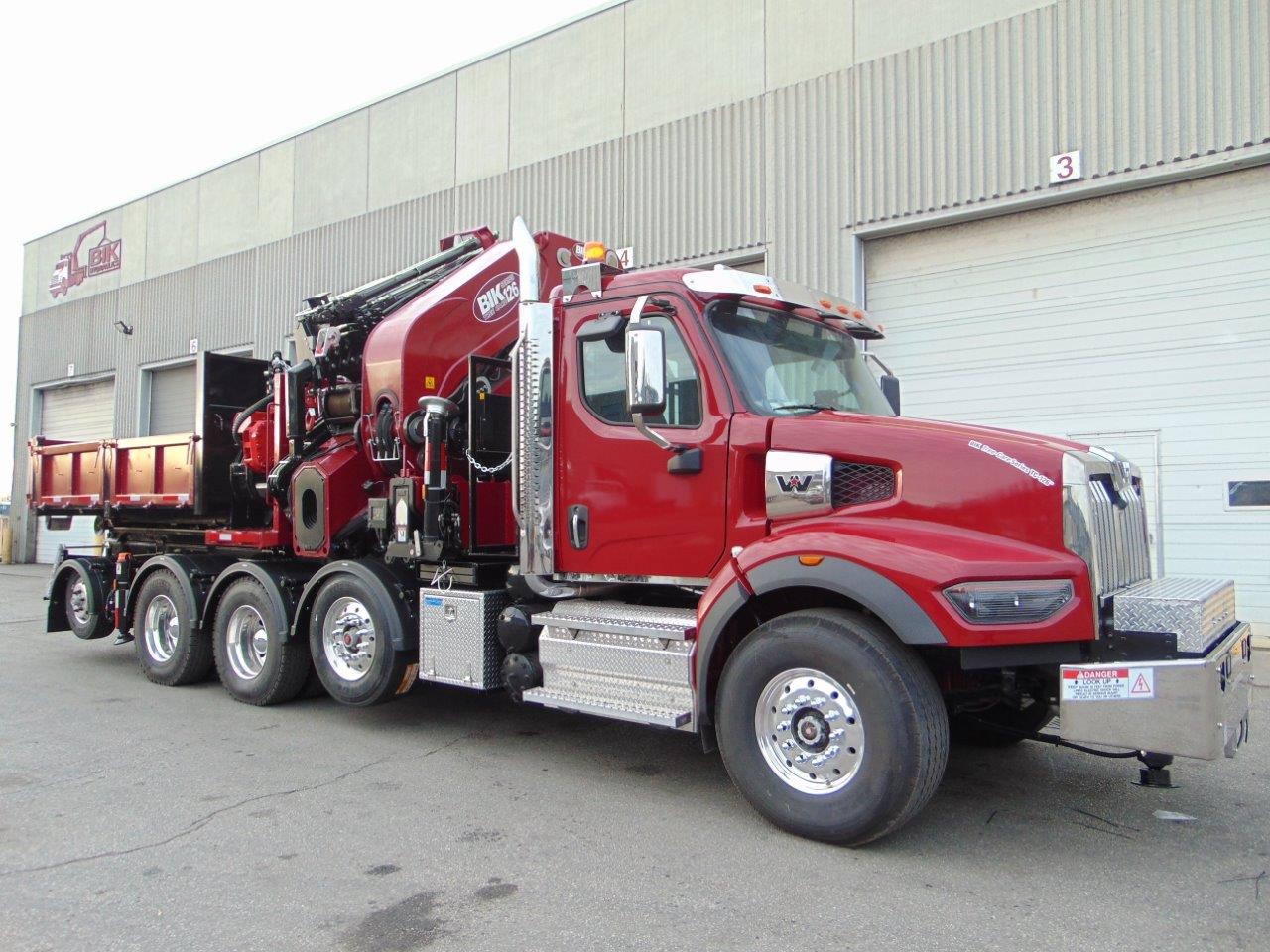

• New – Western Star 49X 5-axle Truck : 97,000 lb GVWR
• Truck Cab Burgandy in Color, CUMMINS 12X Diesel – 500 HP
• Jake Brake, Automated Endurant 12 spd trans.
• 22,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
• 20,000 lb self-steer lift axle ahead of t/a, 46,000 LB Rears on Neway Air-Ride with 11R22.5 tires on Aluminum rims
• 9,000 lb self-steer lift axle behind t/a with lo-pro 17” wheels
• High RBM Double Frame w/integral front frame extension
• Dual Chrome polished Exhaust on both sides of cab, Chromed Grille & Bumper
• Single 100-gallon alum fuel tank, Loaded with Options include: A/C, Tilt/Telescopic steering, AM/FM CD radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, 4-wheel lock-ups, Air ride cab, full differential locks, spot light, fog lights, exterior sun visor, etc…
• Options Included:
• BIK “Hook-Lift” Series – mounted behind carry deck with wired electric over hydraulic controls
• (2) pcs – 24” Alum storage boxes
• (6) pcs – PVC stab pads with holders
• Custom re-enforced manual extn for grapple
• New Mecanil SG-280 Grapple saw
• Custom 2’ deck behind boom with grapple saw holder (room for possible future 2nd saw & man basket)
• 12’ Steel Contractor Body with 18” fold down/removable sides, rear barn doors, floor mtd D-rings (painted black/burgundy)
• Mat rack behind cab of truck
• 2 to 3 day on site boom feature/function familiarization by a BIK tech,
• Other Options Also Available:
• (additional) Mecanil SG 160 Grapple saw with spare parts kit & holder
• (1) Additional Manual pull out boom extention for regular lifting hook (adds 5.5’ more reach )
• (1) Aluminum single man self-levelling basket
