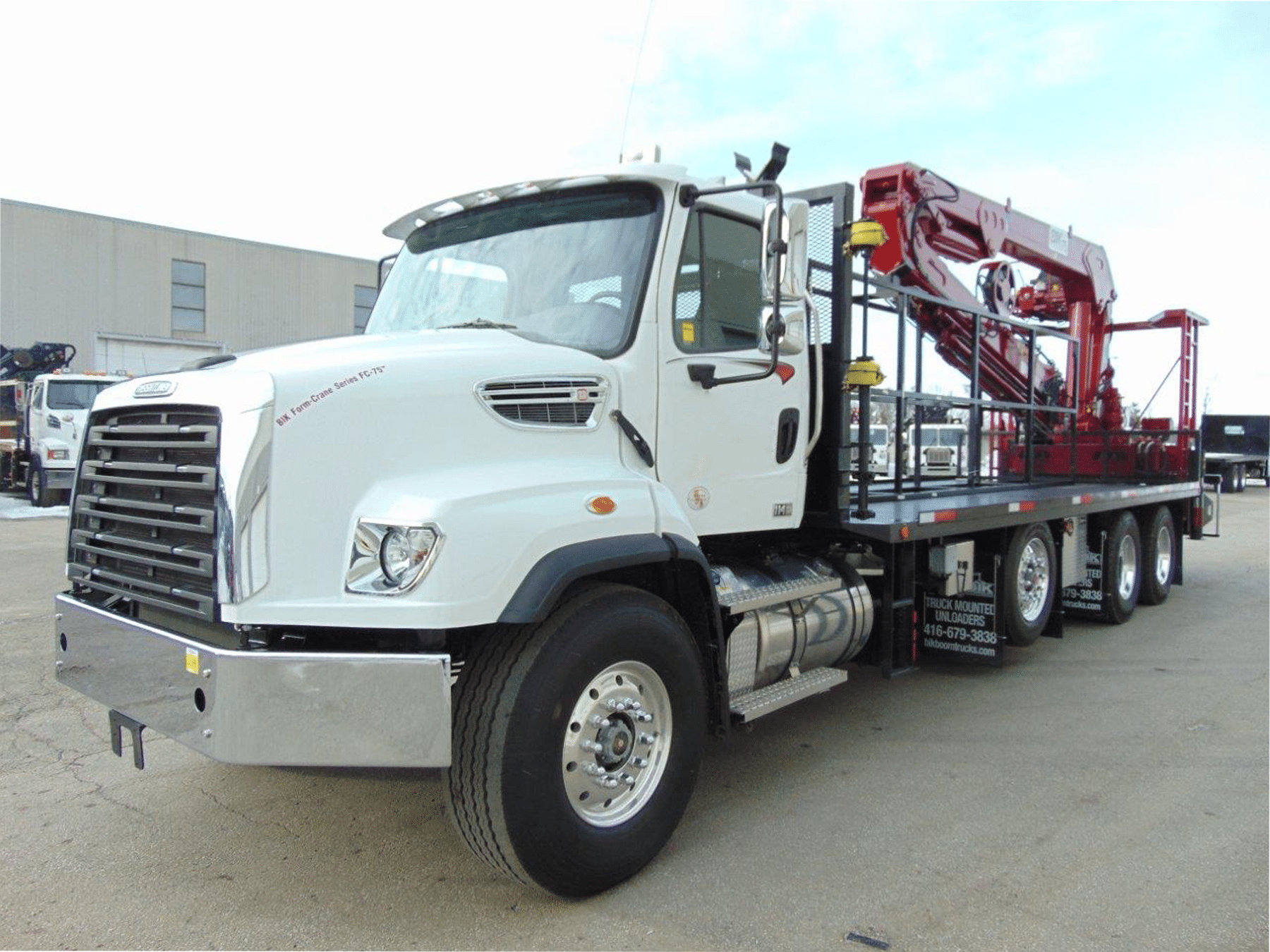

NEW BIK SERIES FC-75 ON NEW FREIGHTLINER 114SD

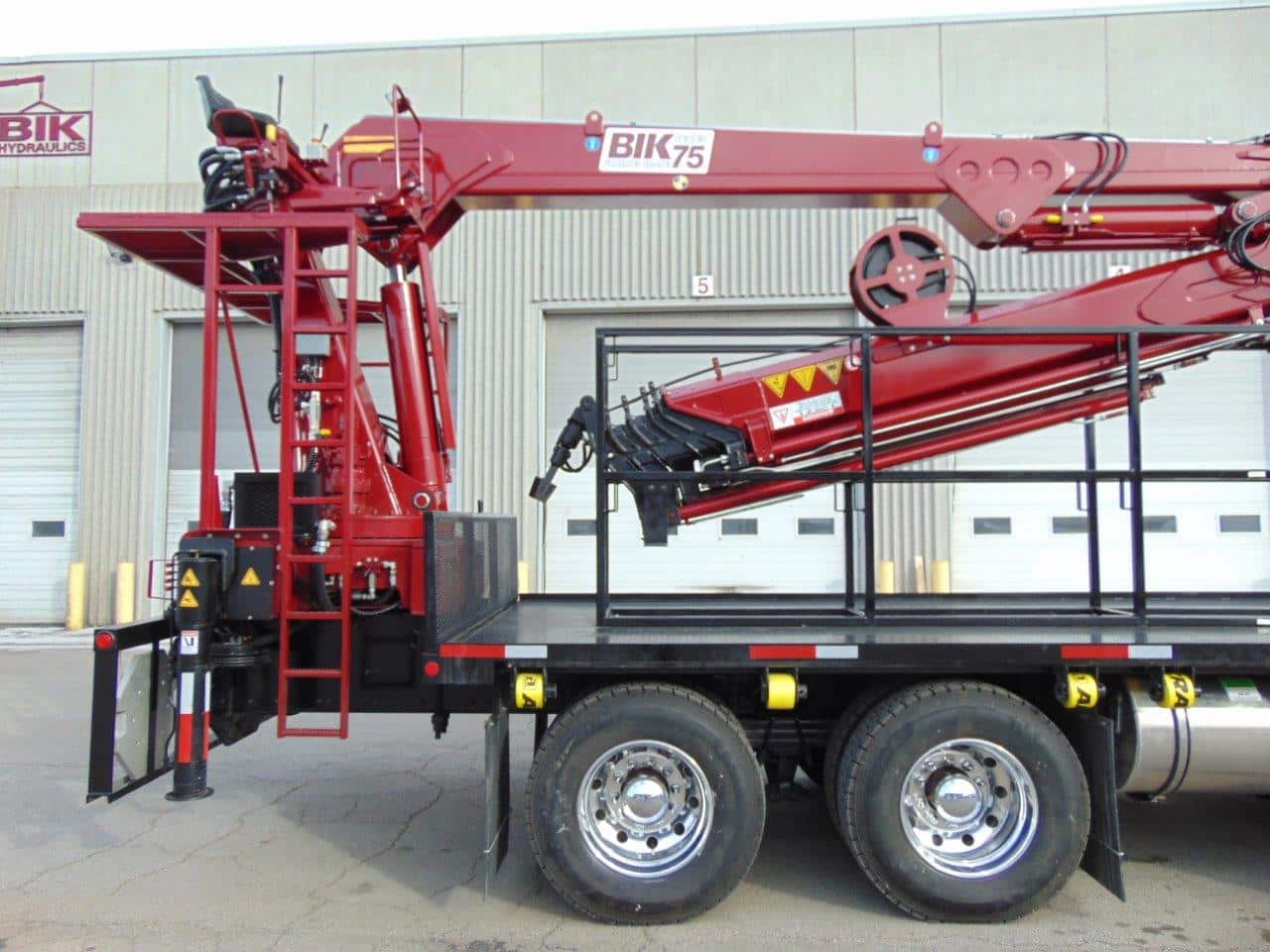

NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER

4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount
Horizontal Capacities are:
- 10,340 lb @ 22’
- 4,300 lb @ 45’
- 2,600 lb @ 60’
- 2,250 lb at max reach
Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades
Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom.
Under Deck Frame Mounted 70-Gal Aluminum Oil Tank
DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
Hydraulic Hook Rotator with T-Hook at End of Boom
DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom
SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord
Crane Painted BIK Red, load chart on boom in FT. & LBS. – Load Tested & Installed end of frame on pre-engineered subbase.

NEW – 22’ 4” X 102” STEEL CHECKER PLATE FLAT DECK INSTALLED

Checker Plate Steel Deck Surface
66”+ Headboard with Removable Center Divider and 2” Lip Around Deck for Form Cage Handling
24” Removable Rear Tailboard, Winch Bar Holder and Winch Bar
Ladder, Reflectors and 5 Side Lights
Integrated Torque Box with X-Bracing and Sheer Plating Mount to Frame for Optimum Stability
Primed/Painted Gloss Black

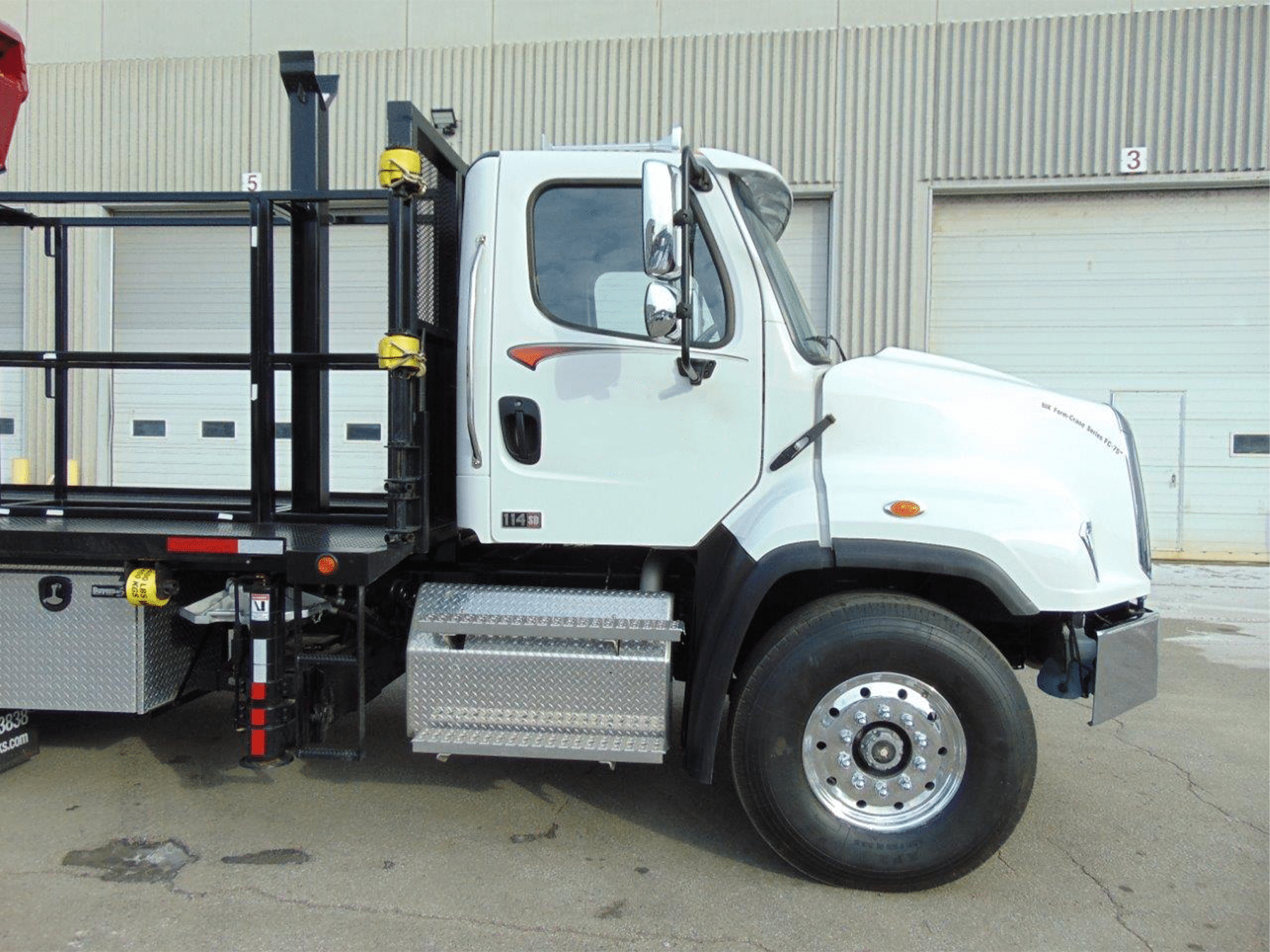

New – Freightliner 114SD 4-Axle Diesel Truck: 79,000 lb GVWR

12L Cummins Desiel, 460 hp, Fuller 8LL stand trans
20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims
13,000 lb self steer lift axle ahead of t/a
46,000 lb Rears on Tuftrac Suspension with 11R22.5 Tires on aluminum rime, Double-Frame Chassis
Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, engine block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc…

Also Included:
