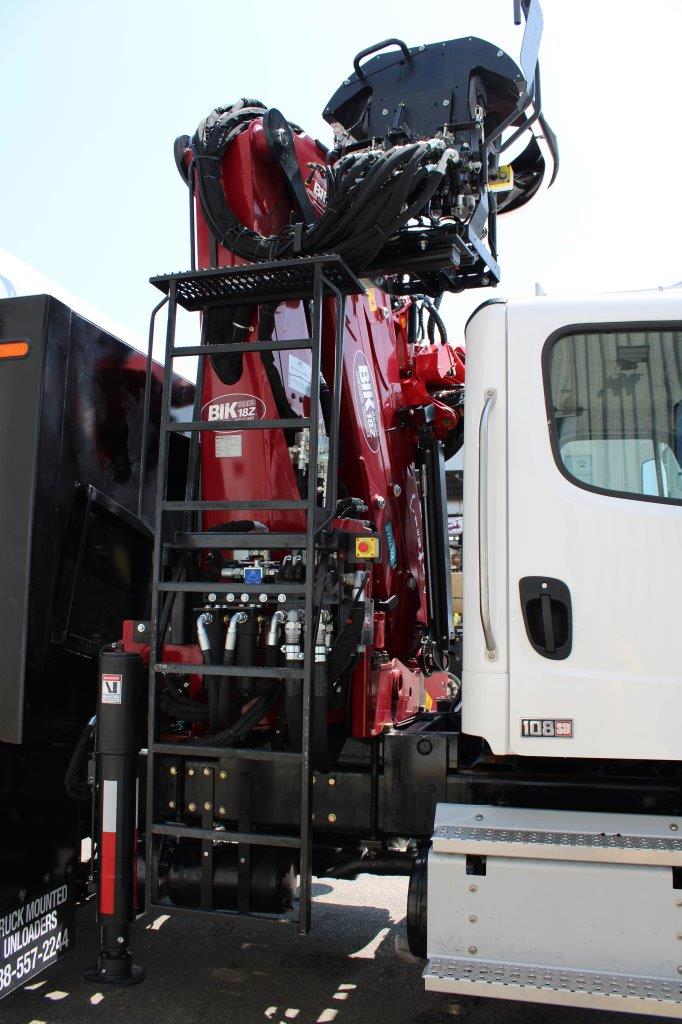

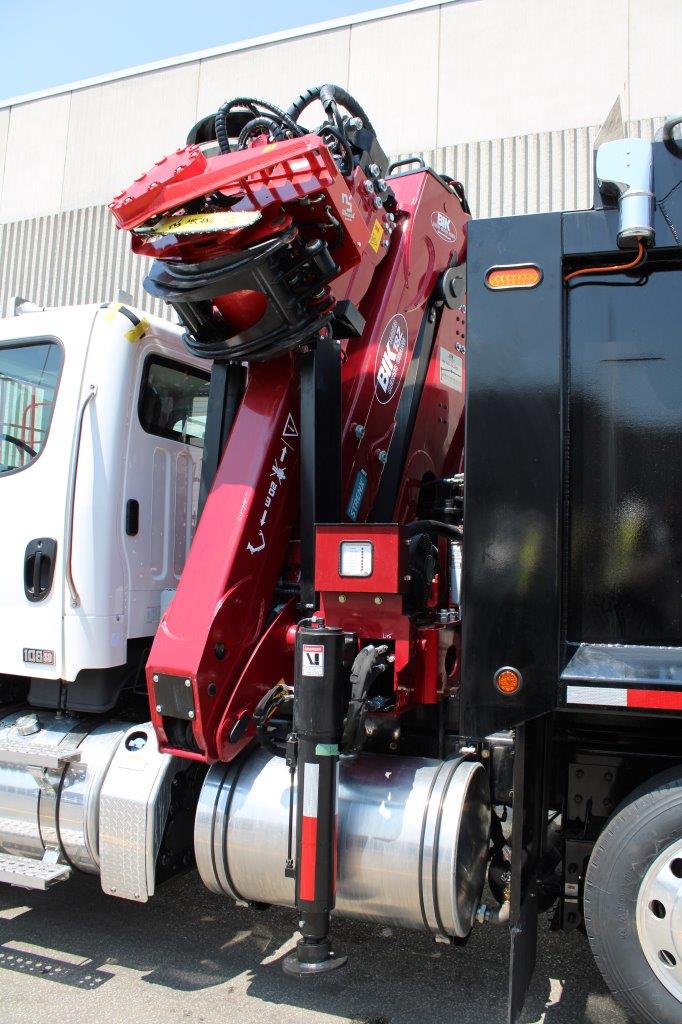

Boom Details
New – BIK “Debris-Crane” Series DC-910-MT27 by Rotobec
Basic loader Options:
- Electric system, 12 V, **M23 Boom (with 2 halogen lights on stick boom),
- ‘A’ stabilizers for flat trailer (longer by 15”), Base with cleats, inclined ladders,
- XL Seating and standard Yoke (4 1/2’’ X 1 1/2’’ Dia. X
- MT27 – Telescopic boom reaching 27’ (8.2m) ‘A’ stabilizers for truck (longer by 15 in. | 38.1cm)
- Telescopic boom with hydraulic override, 16 x 18 Oversized Pads
- Special operator railing 30″ higher, – Rotobec Ladders, Rotobec standard outrigger pads,
- Installed back of cab with New Pump & PTO, Fresh AW-46 hyd oil, Load Tested

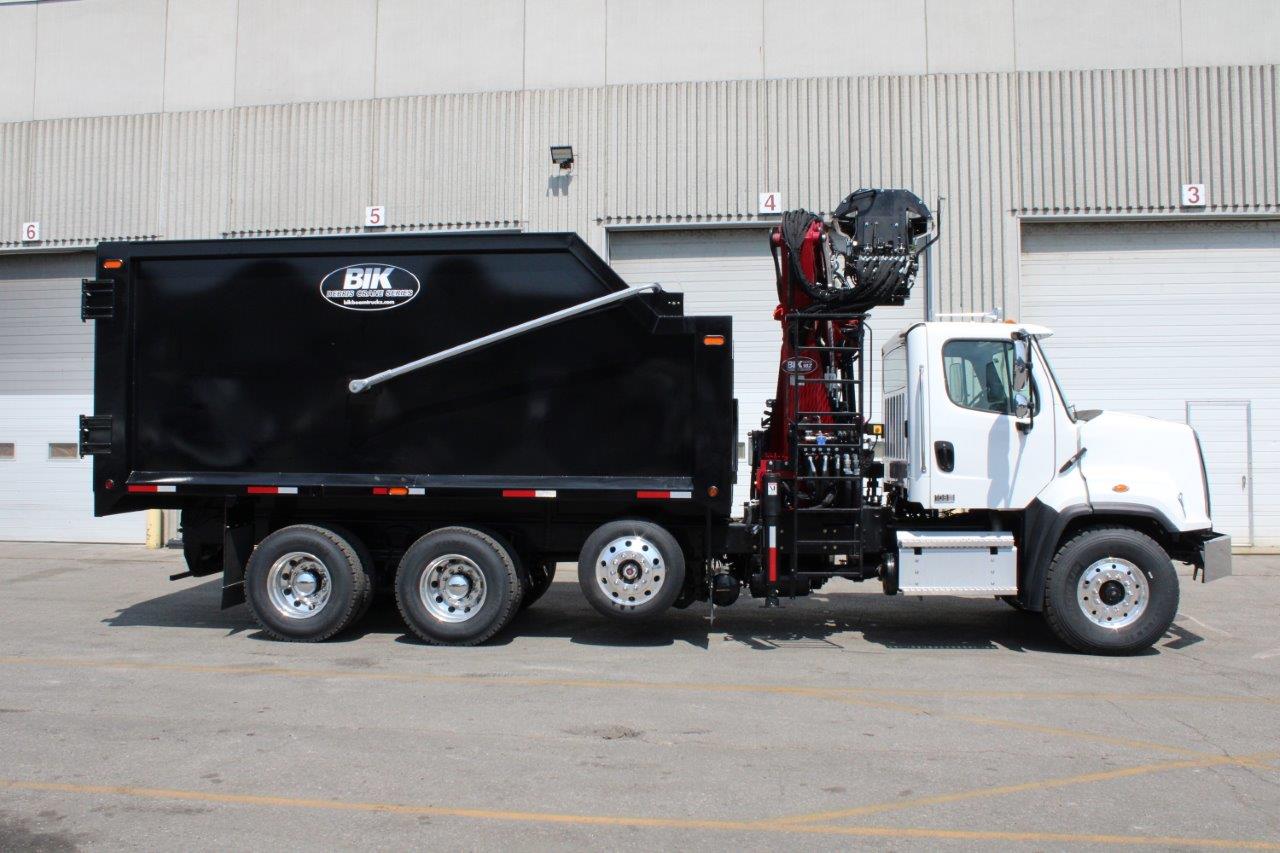

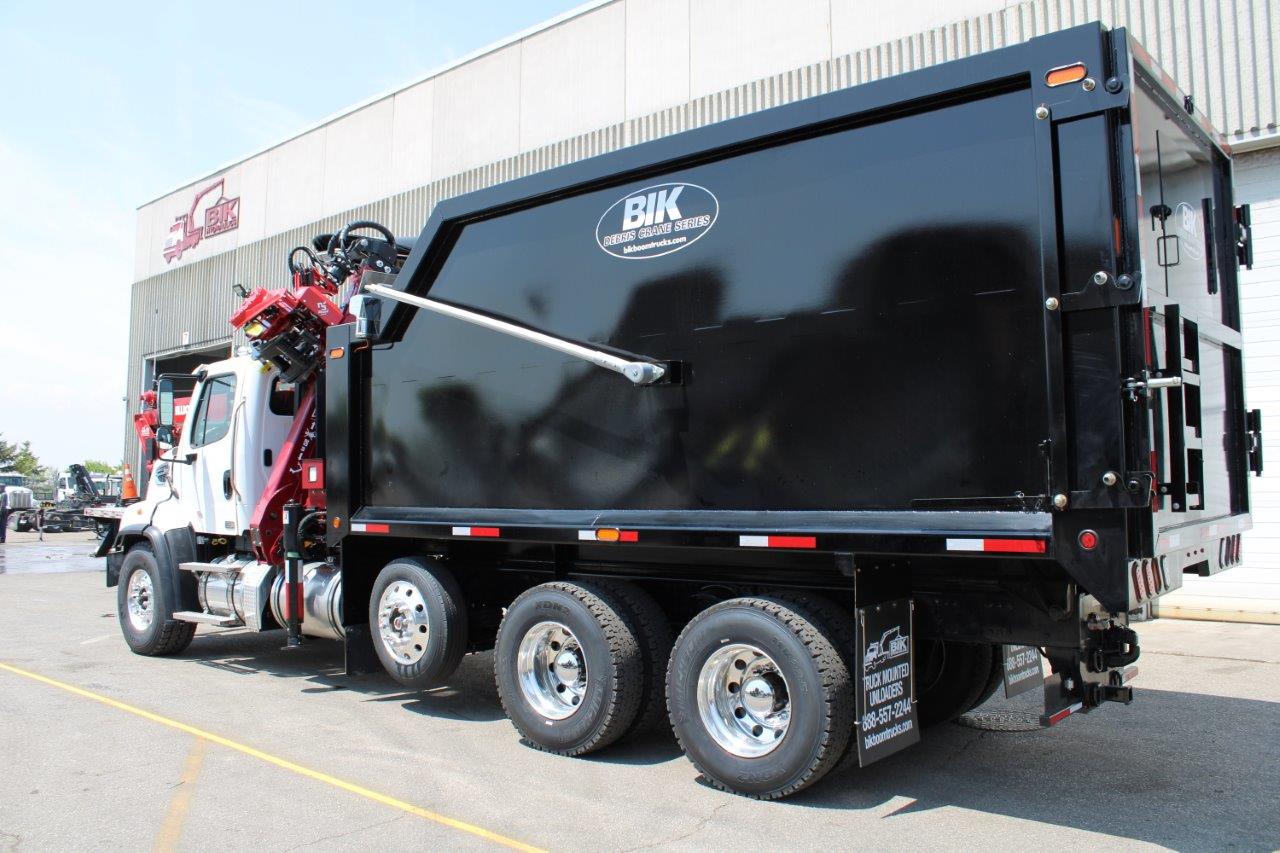

Deck Details
New – 22’ Dump Debris Body – made with AR 450 Plate Steel, 22’ Long x 102” Wide, 8’ High, ¼” floor
- 66” Tall / 1/8” thick sides, main frame by 6” Heavy I-beam Long sills, 4” Heavy I–Beam Crossmembers, 2 x 4 x ¼” Tubing Inside Body

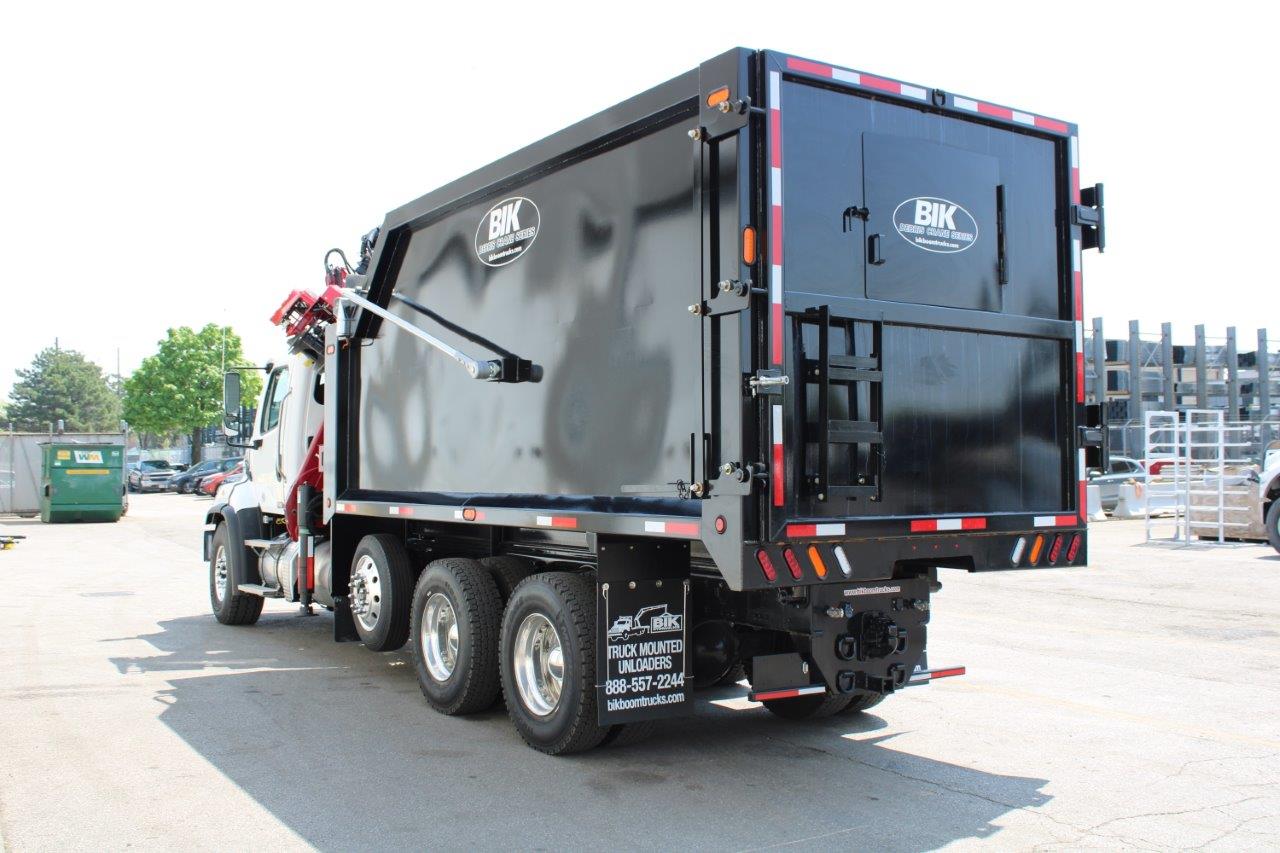

- Barn Door Gate, Stowe Grapple on Top of Gate Behind Body
- Front mount telescopic hyd dump cylinder
- Midturn at Bottom, Strobes in Rear of Body, Mud Flap Brackets in Rear with Flaps, Pad Holders on Rear of Body
- Sand blasted and painted gloss black on the outside, Flat black on inside of body
- GRAPPLE: Heiden HC-20 trash grapple

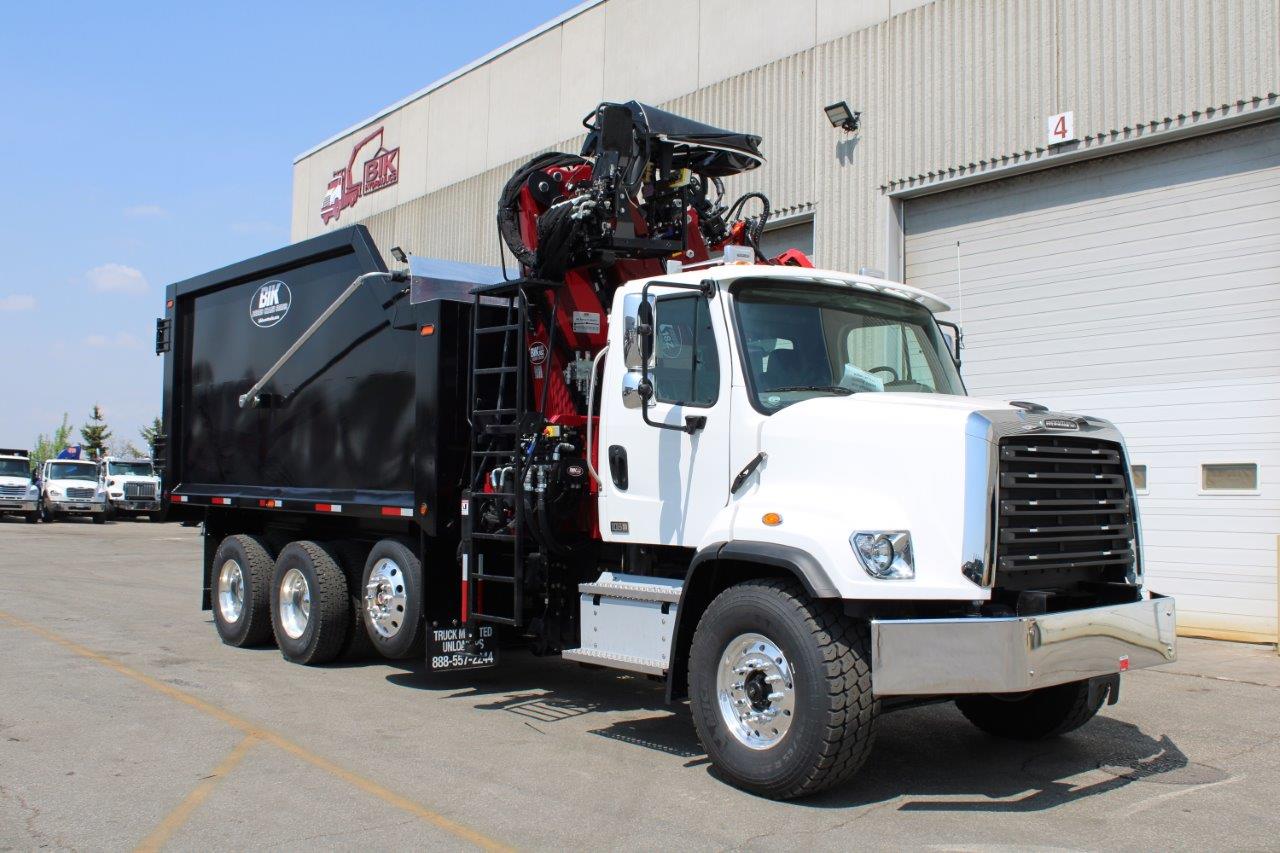

Truck Details
New – Freightliner M2-106 Tandem Diesel Truck:
- 60,000 lb GVWR
- Truck Cab white in colour
- CUMMINS 350 hp with Allison Automatic Transmission
- 20,000 lb 385/65R22.5 Front tires on aluminum rims
- 40,000 LB Rears on Tuftrac Suspension with 11R22.5 tires on aluminum outer rims – steel inner
- Full double frame chassis, 54” spread at ta

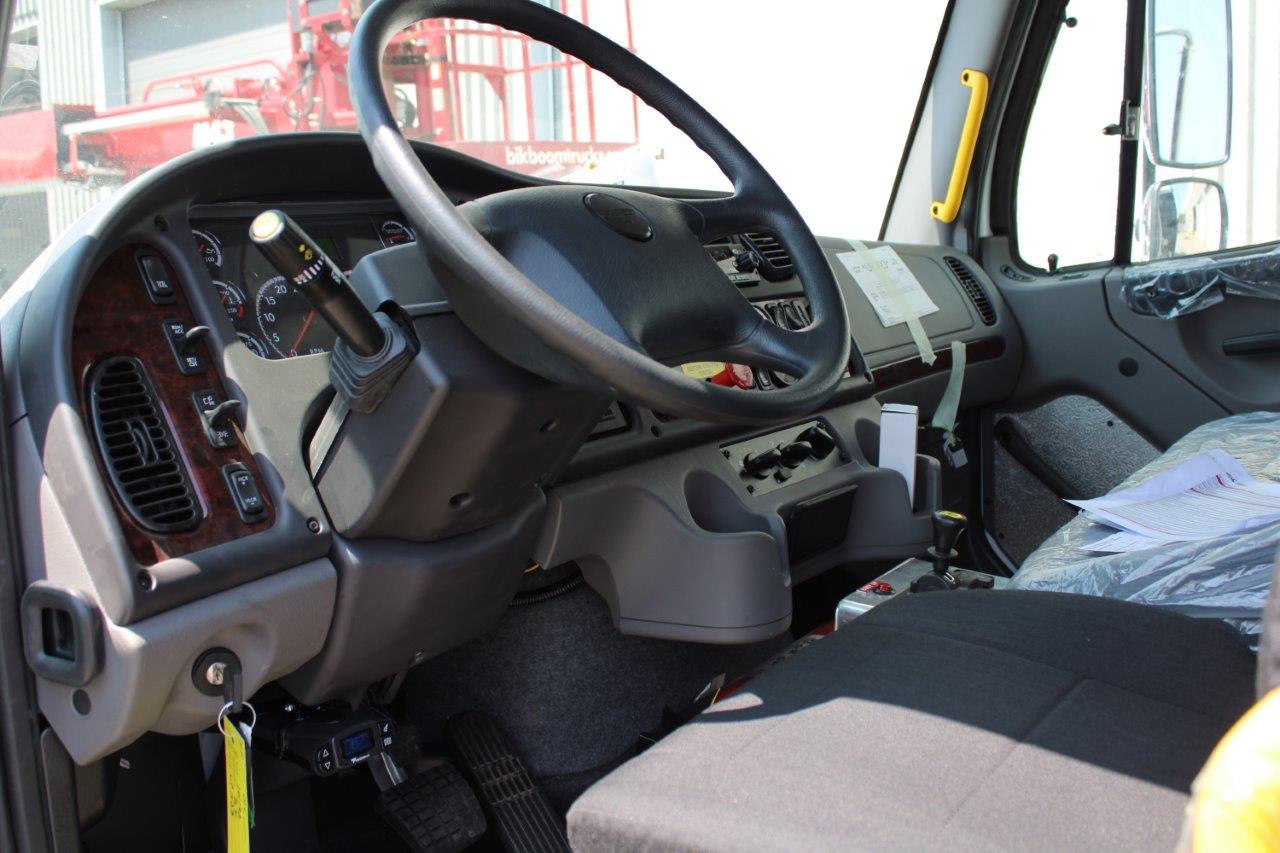

- Truck Features Include: Air cond., AM/FM stereo, power windows/locks, power mirrors, tilt steering, cruise, air ride cab, painted bumper, heated mirrors, woodgrain dash board, 2-man pass seat, engine block heater, inter axle lock ups, single 70 gal alum fuel tank, trailer air tow package plumbed to the rear, etc…
- Also Included: – (1) – 36” Aluminum Storage Box Installed under deck,
Options at Extra Cost:
- Heavy duty pintle hook installed at rear
- 13,000 ln self steer lift axle installed ahead of t/a with low profile 22.5” tires on Alum rims
- (1) Additional Aluminum storage box installed
- Add (1) New Mecanil SG-280 Grapple Saw with custom quick disconnect lever portion
- Mecanil SG-280 Grapple Saw (instead of the Heiden Trash grapple included above)
