Boom Details

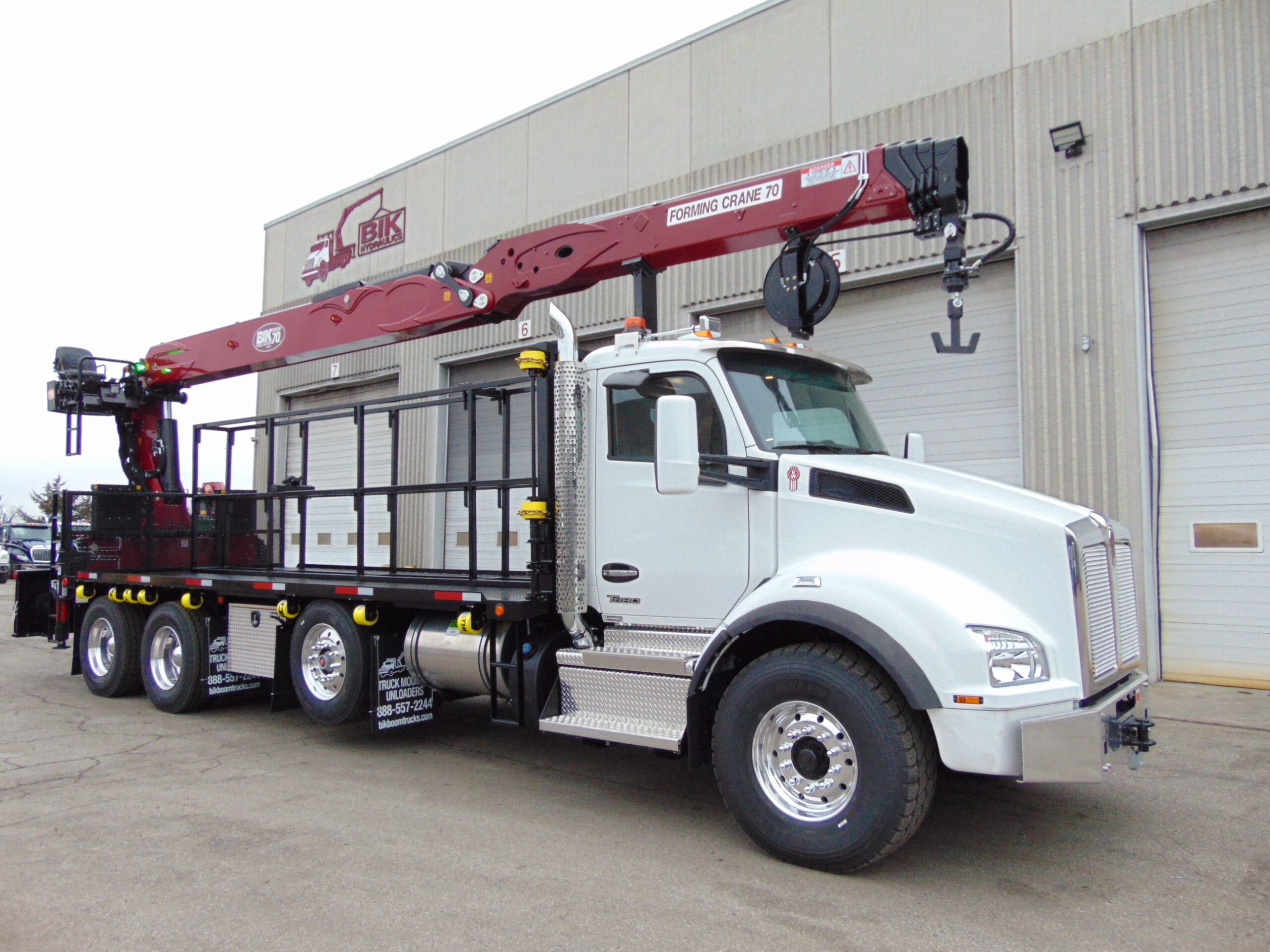

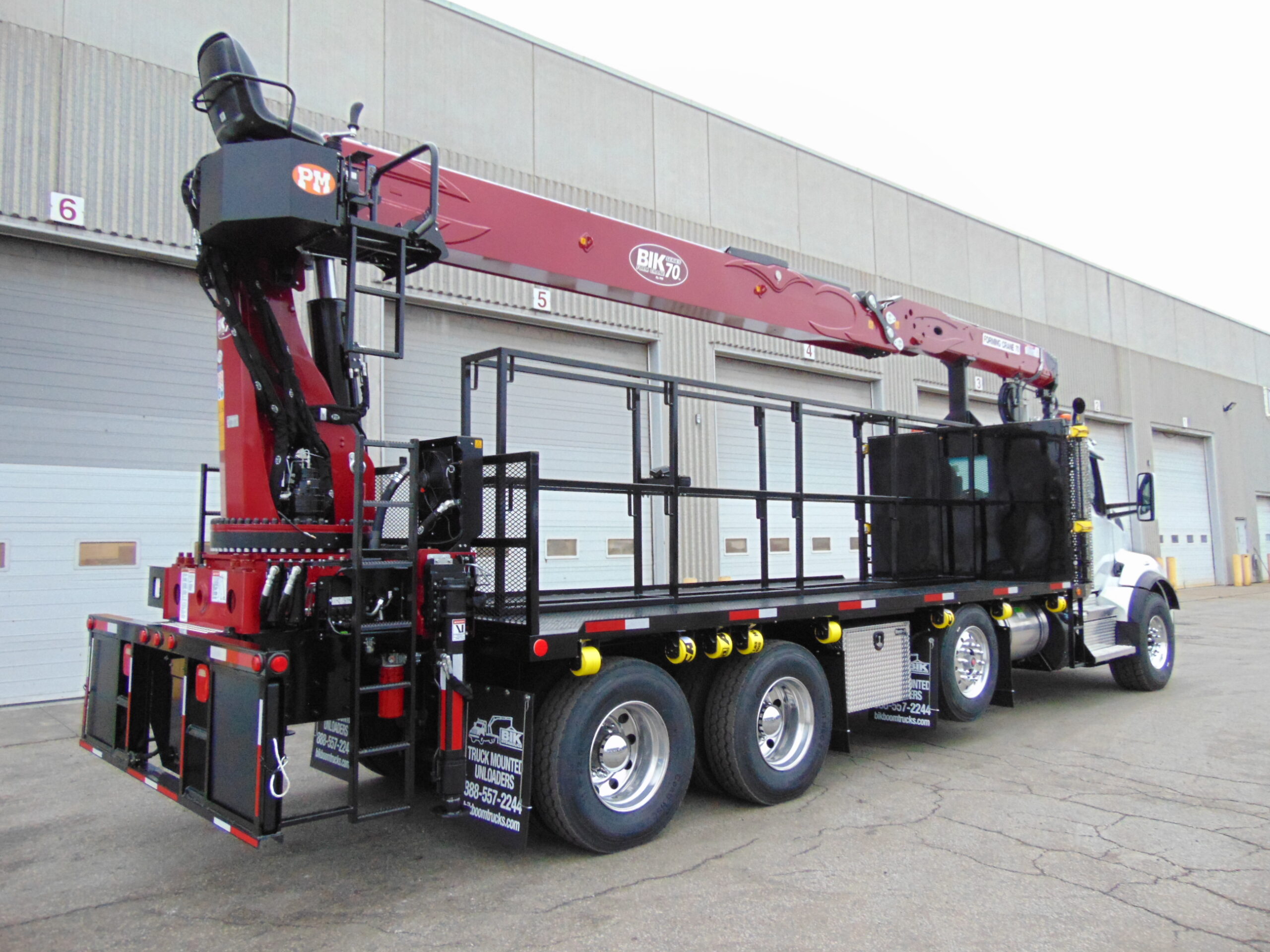

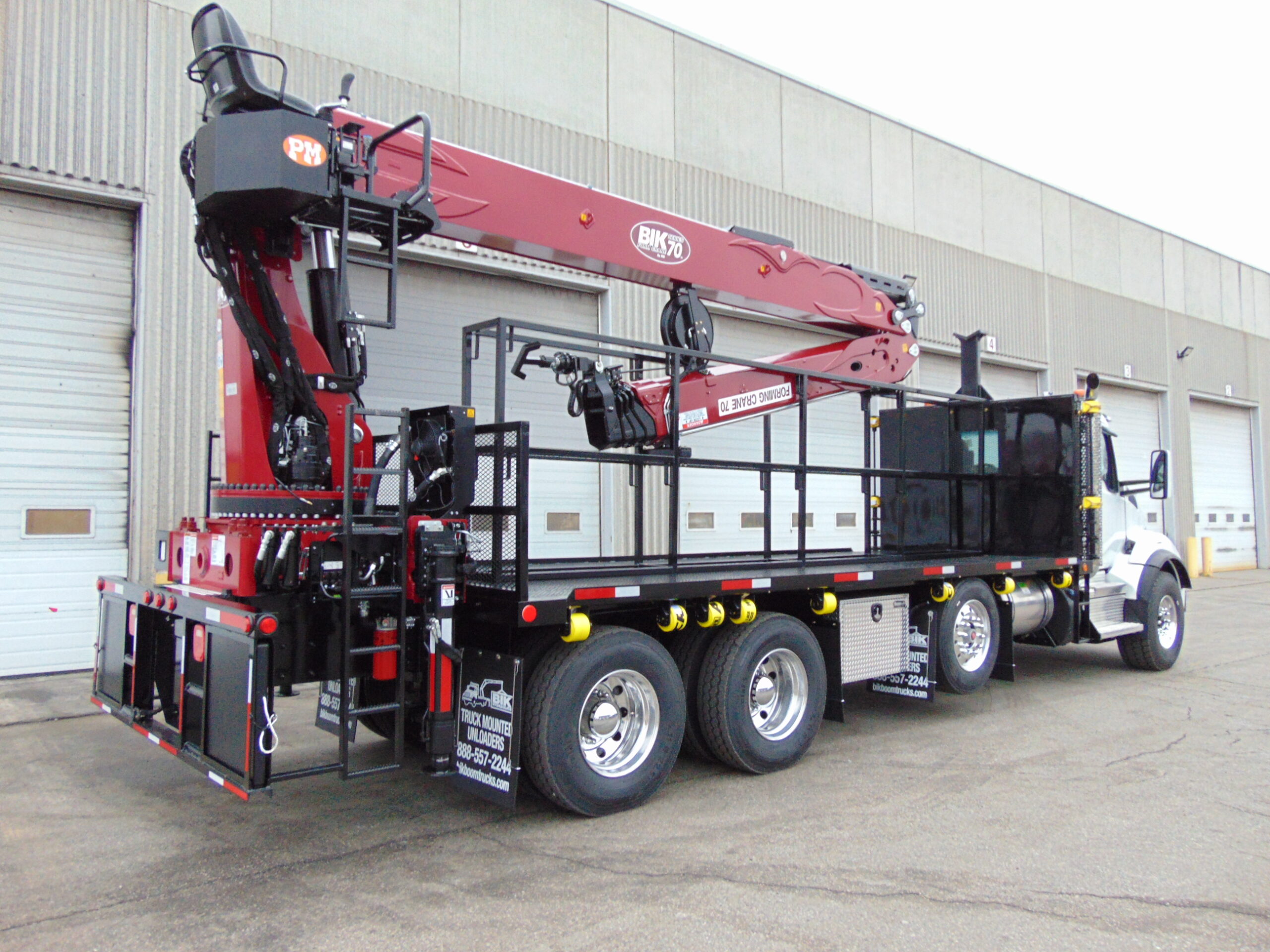

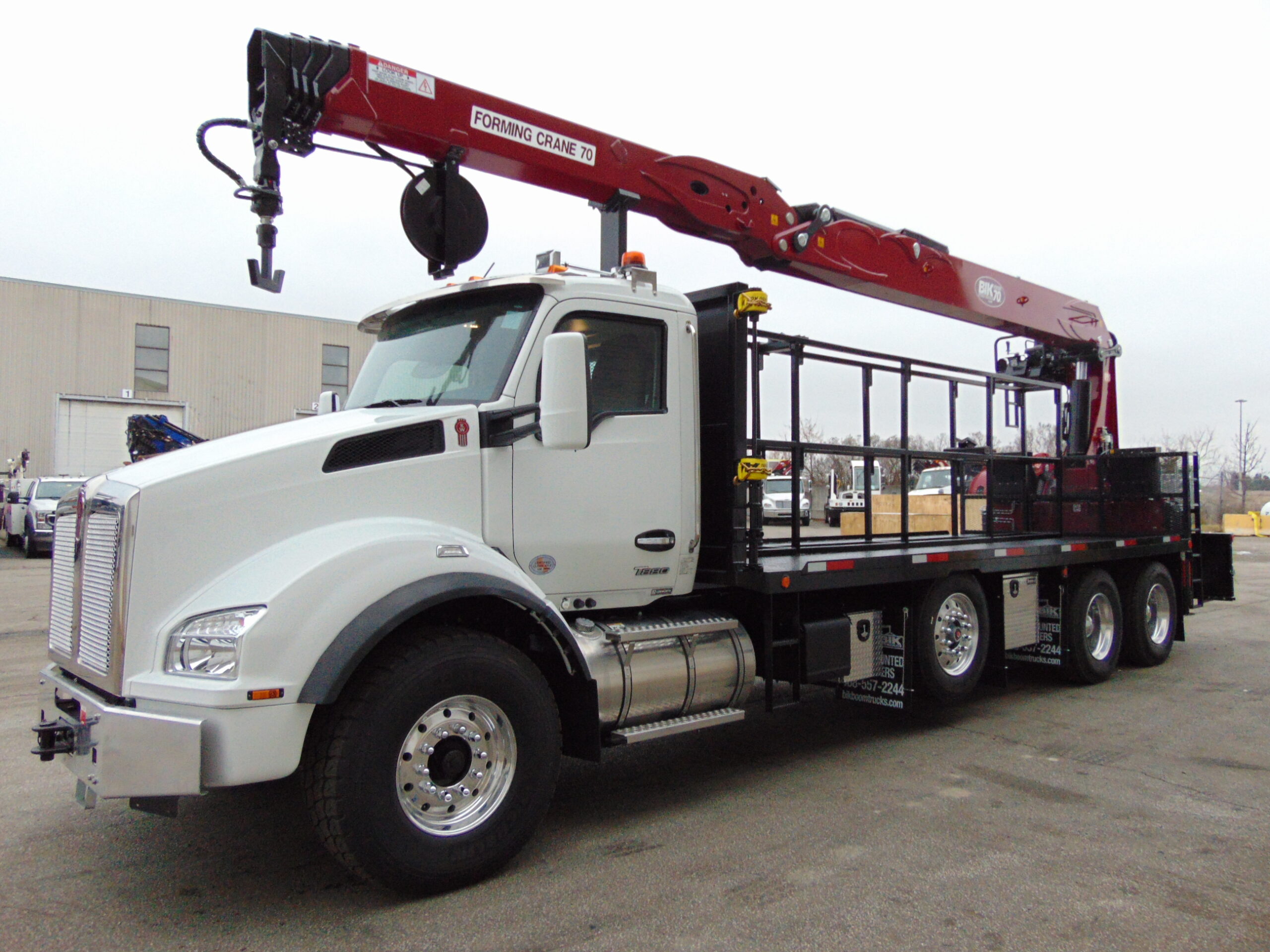

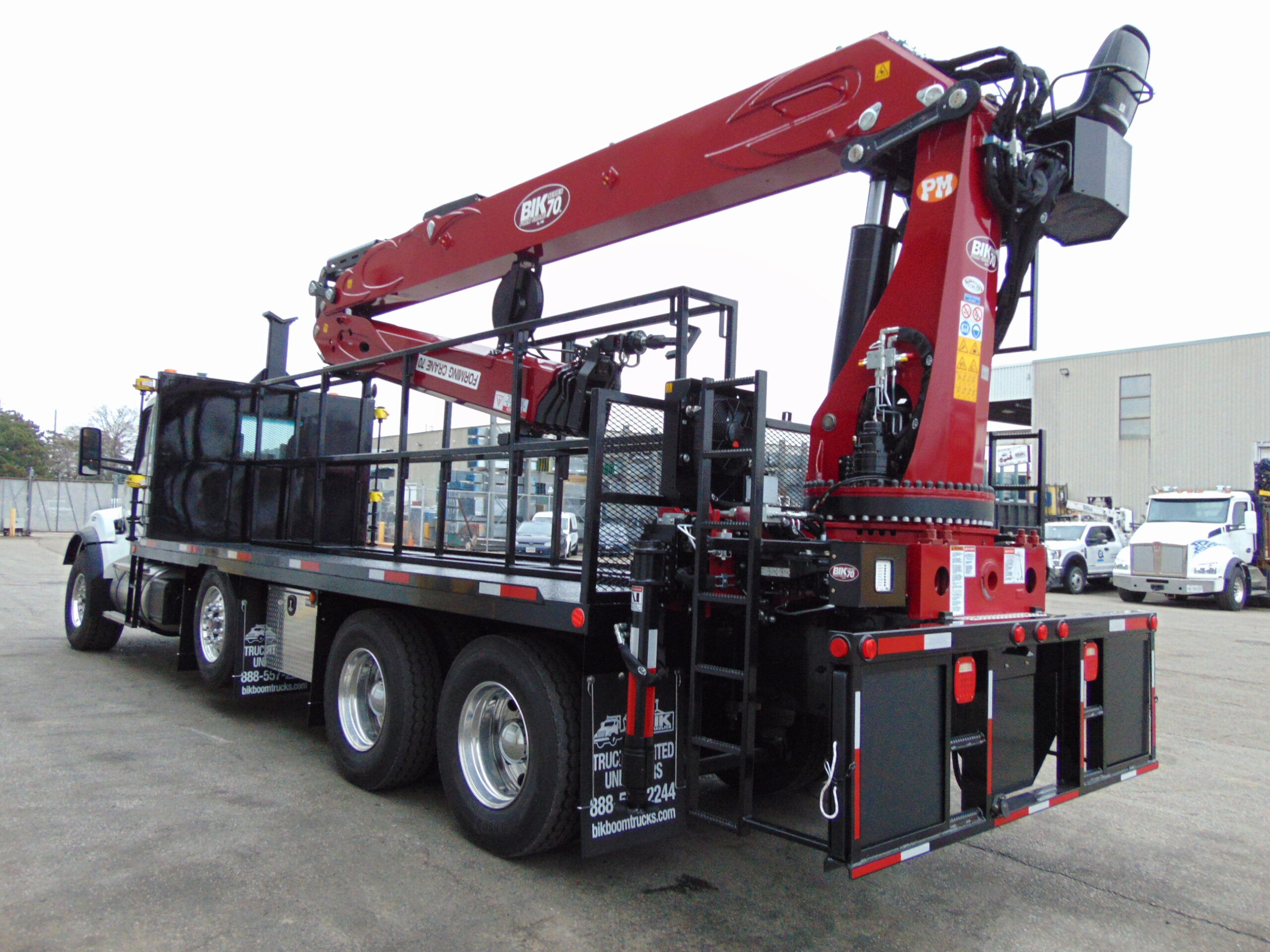

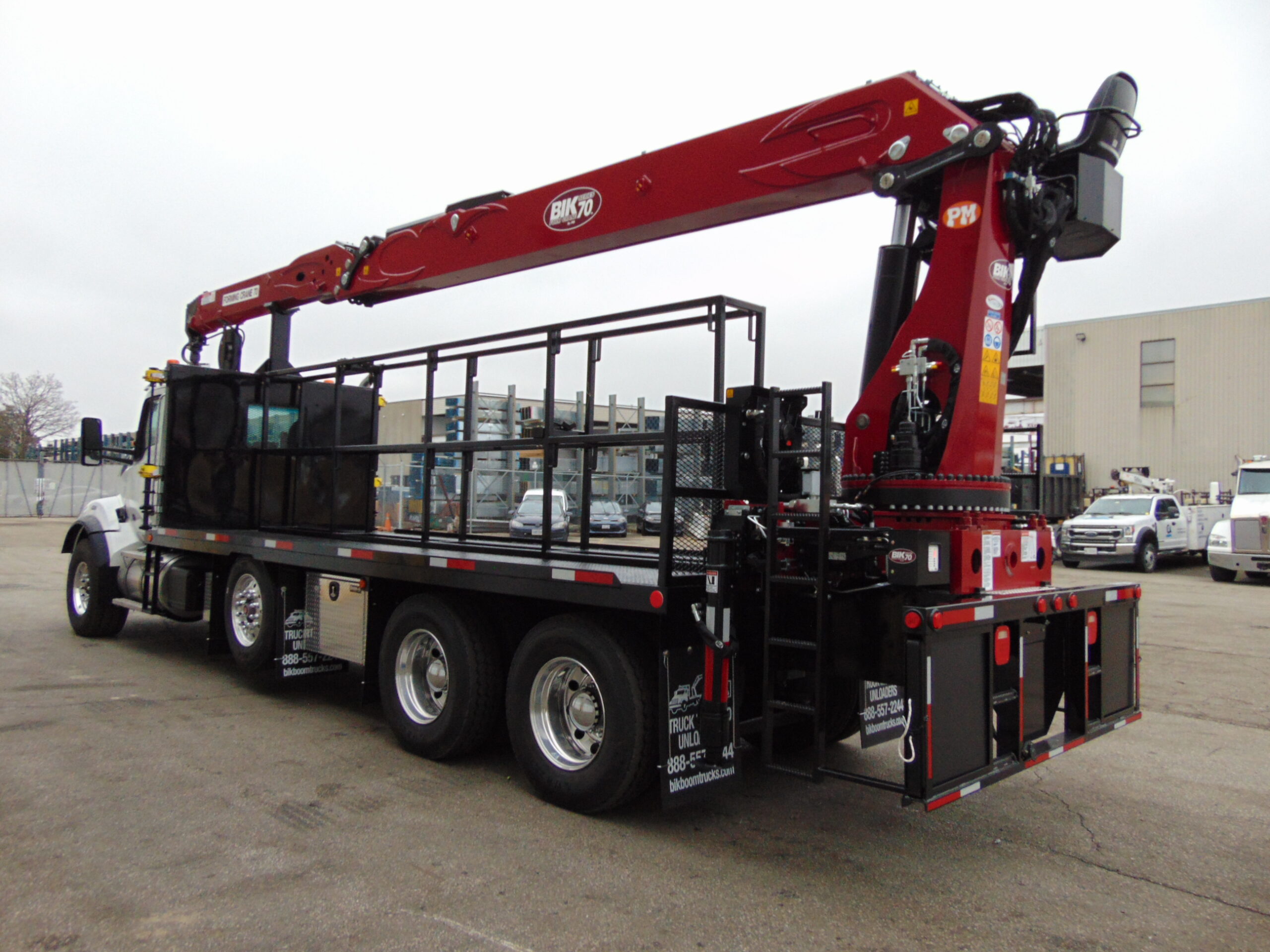

NEW – BIK SERIES FORMING CRANE FC-70 UNLOADER
- 4 Hyd. Extensions to 70’ Horizontal Reach rearward with reverse turret mount
- Horizontal Capacities are:
- Internal Cylinders on All Boom Extensions, Outer Boom Cylinder Guard
- Dual Planetary Gear Drive continuous rotation for maximized slewing torque and power for extreme grades
- Power Link Connections at Main and Articulating Cylinders, Enhanced Lifting Power Throughout
- Extra Wide Stabilizers – 24’ 3” Span, Hydraulic Out and Down Type
- Flanged Holding Valves, Double Acting Check Valve for the Down Movement of the Stabilizers
- Hydraulic Oil Coolers, High Pressure Return Filter and min 40-gallon oil tank for boom.
- Under Deck Frame Mounted 70-Gal Aluminum Oil Tank

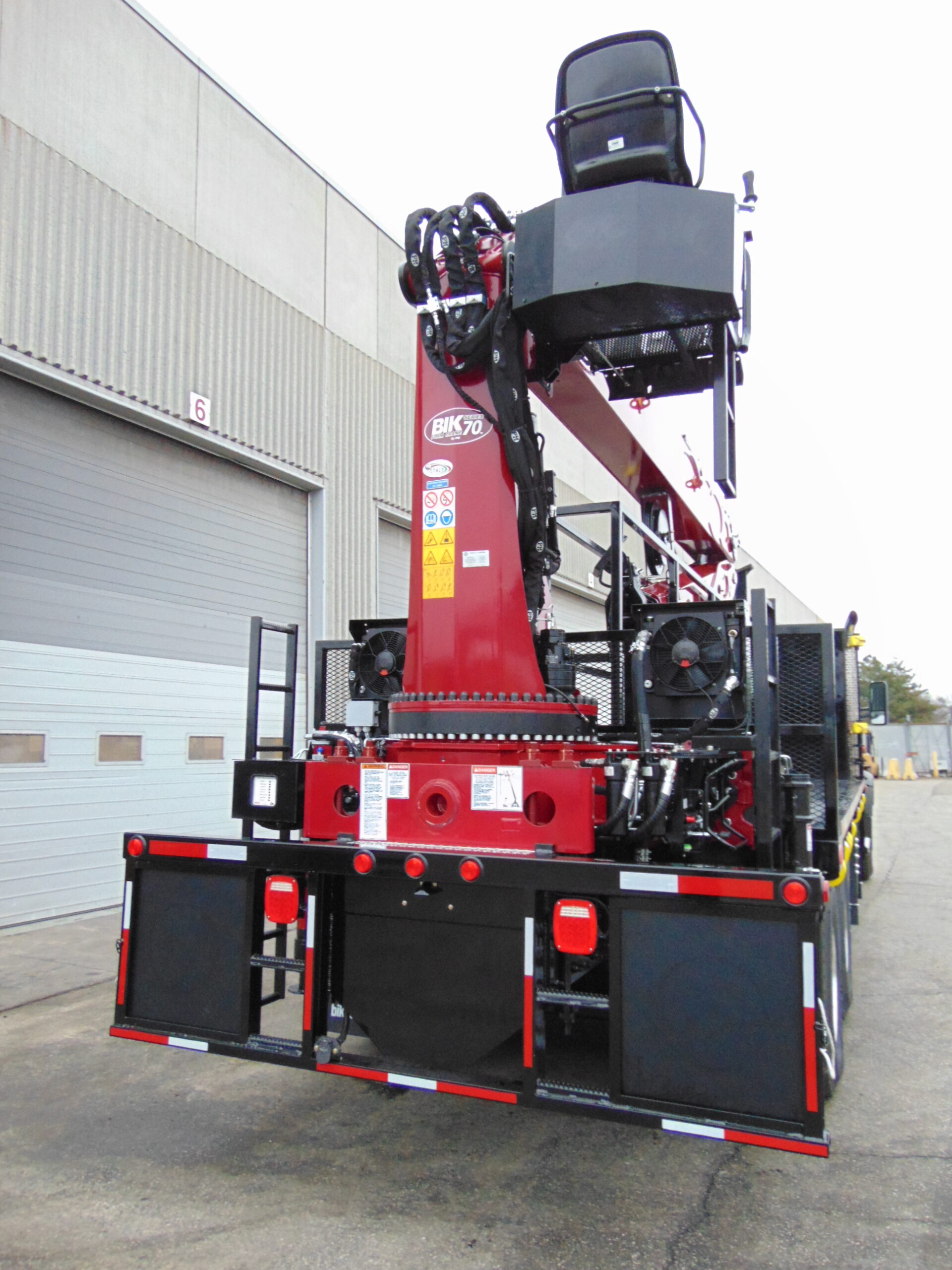

- DANFOSS Valve – At Top Seat Level Controls with Access Ladder/Platform
- Hydraulic Hook Rotator with T-Hook at End of Boom
- DANFOSS Valve – At Top Seat Level controls with access ladder, Hydraulic hook rotator with T-hook at end of boom
- SCANRECO Proportional Radio Remote Control Included: 2-batteries, in-cab charger, and back-up cord
- Crane Painted BIK Red, load chart on boom in FT. & LBS. – Load Tested & Installed end of frame on pre-engineered subbase.
Deck Details
New – 22’ 6” x 102” Aluminum Flat Deck – LOW PROFILE: to accommodate up to 9’2” tall Form Cages
- Installed on pre-engineered 6” main sill sub frame & extension with X-braces for Tortional support tied to truck frame by sheer plating at front, center and rear
- Aluminum deck surface, 66” + headboard
- Removable Center Divider with 4 vertically mounted winch straps to wrap around cages for transport
- 6 – under-deck sliding tie-down winch straps on the passenger side
- winch bar holder and winch bar
- dual ladder access, reflectors and side lights as required by DOT standards.
Truck Details
New – Freightliner M2-106 Tandem Diesel Truck: 60,000 lb GVWR, Truck Cab white in colour
- CUMMINS 360 hp
- Allison automatic transmission.
- 20,000 lb 385/65R22.5 Front tires on Steel white rims
- 40,000 LB Rears on Tuftrac Susp with 11R22.5 tires on Aluminum Outer rims – steel inner
- Full double frame chassis
- 54” spread at ta
- Truck Features Include: Air cond., AM/FM stereo, power windows/locks, tilt steering, cruise, air ride cab, painted bumper, heated mirrors, engine block heater, inter axle lock ups, single 70 gal aluminum fuel tank, etc
