BIK HL‑65T heavy‑lift knuckle boom.

New – BIK “Heavy Lift” Series HL 65T
Folding Hydraulic Knuckle Boom – 4 hyd extensions to 37’ Horizontal reach
Horizontal Capacity
30,370 lbs @ 14′
23,000 lbs @ 20′
16,500 lbs @ 25′
13,450 lbs @ 31′
11,240 lbs @ 36’9″
4-Independent Extensions, PM connecting rods at First Boom and Knuckle, Continuous Rotation and Dual Planetary Gear Rotation
Double pilot operated on slewing and pilot operated check valves on all cylinders

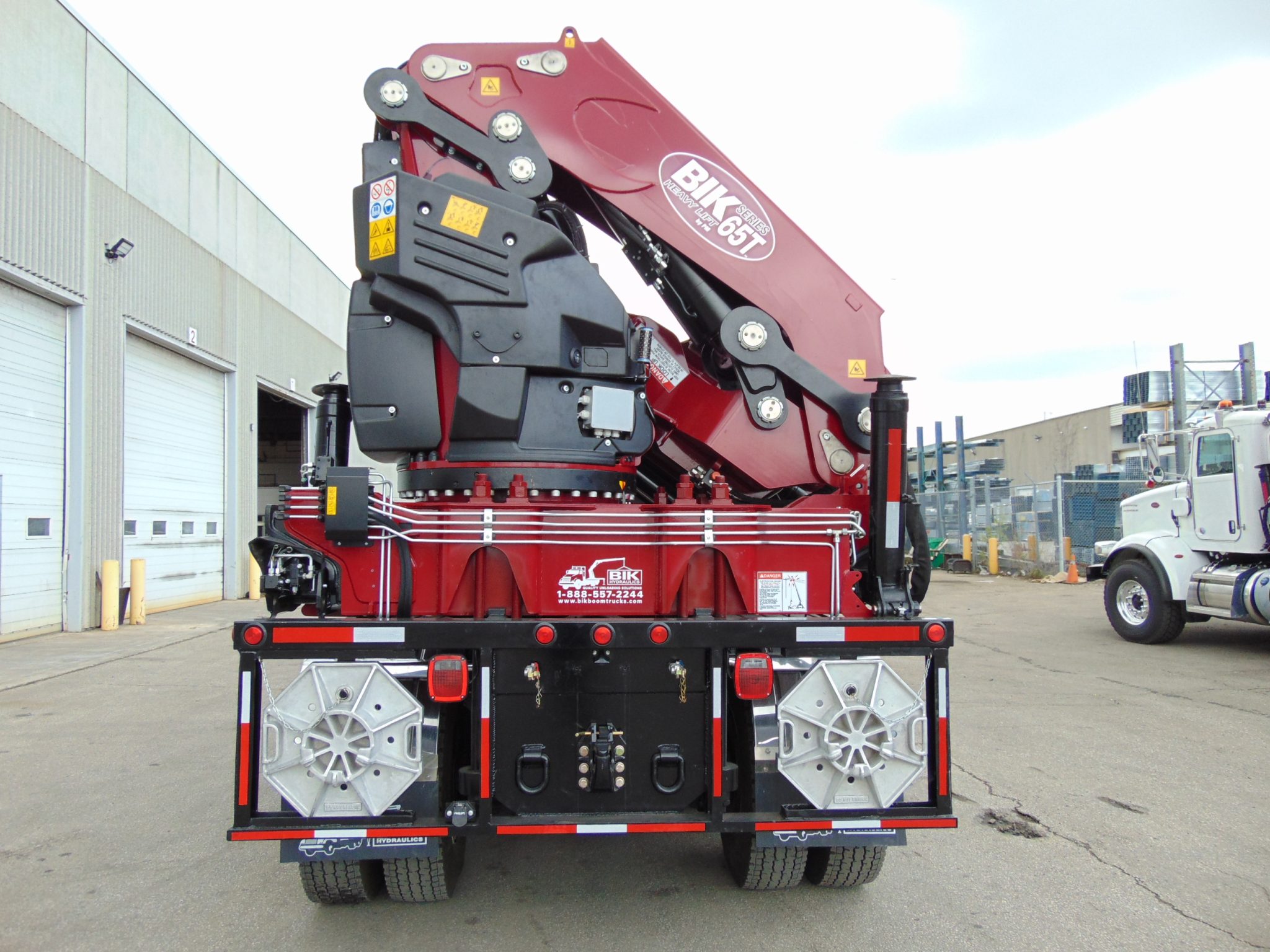

Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span – hydraulic tilting when retracted
Hydraulic Oil Cooler, high pressure return filter and min. 70-gallon oil tank for boom
DANFOSS Proportional Control Valve & SCANRECO Proportional Radio Remote Control
Simplified Hydraulic Overload System allowing maximized uptime crane and easy maintenance
Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
Load Tested & Installed at end of frame, with integral sub-frame to meet or exceed all CMVSS Standards

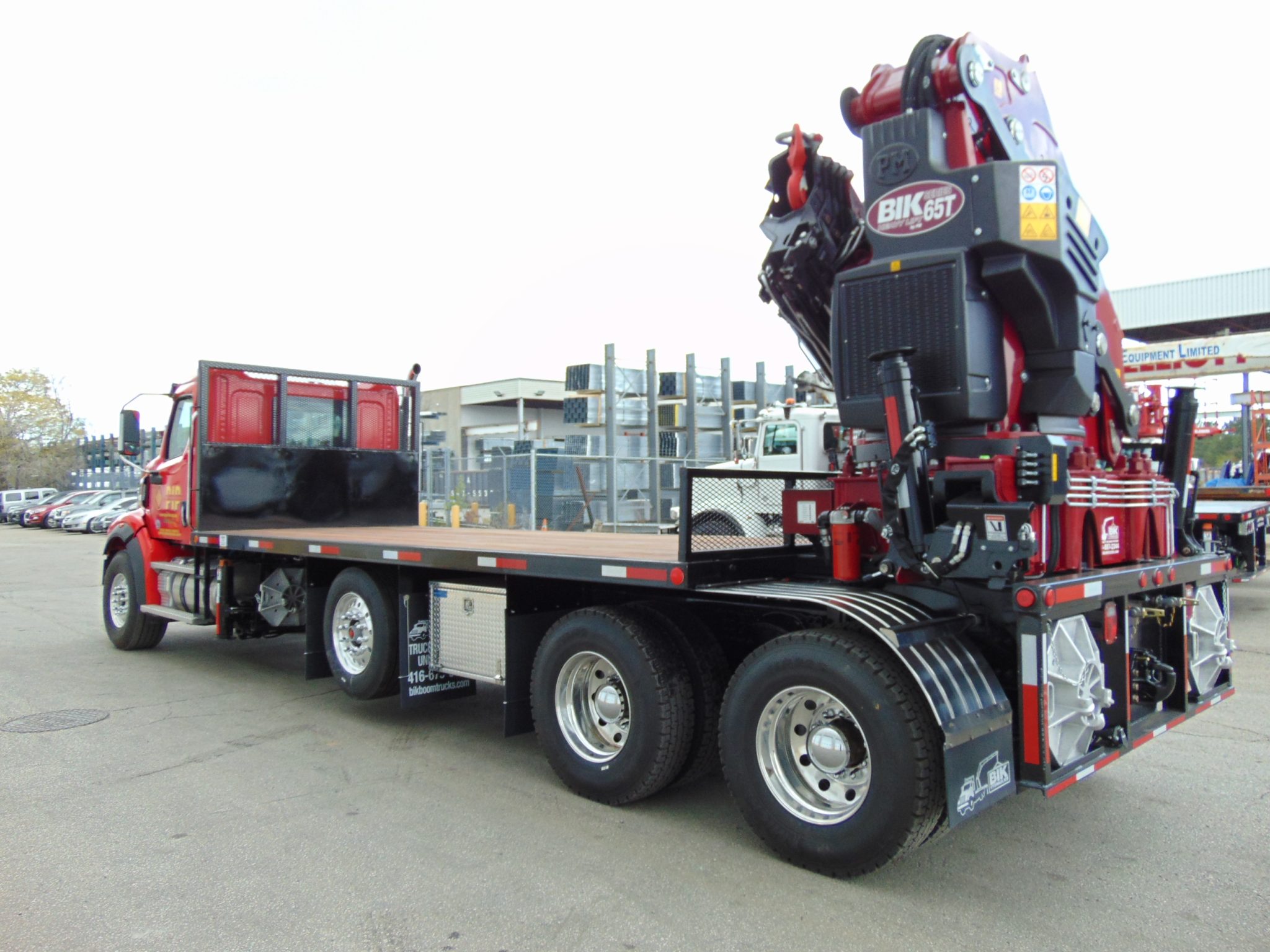

New – 22′ x 102″ Steel Platform with Wood Surface
Steel with wood surface
66” steel headboard with 18” rear steel removable tail board
Rub rails with pockets, winch bar and holder
Steel 6” high strength boxed in sub-frame and extension at rear with custom engineered X-bracing/shear plating as torque box for maximized side stability
2-steel Deck access Ladders at front, reflectors, conspicuity tape, and Mud-flaps, 8 -Winches

New Western Star 49X 4-Axle Truck :
88,000 lb GVWR
Truck Cab white in colour
12L Cummins Diesel 500 hp Eaton 18 spd Standard Shift Trans.
20,000 lb front steer axle with 425/65R22.5 Front Floatation tires on Alum rims
20,000 lb self steer lift axle ahead of t/a SPIF Cetified
46,000 LB Rears on Tuftrac Susp with 11R22.5 tires with steel white rims
Full double frame chassis
Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, power windows & locks, cruise, tilt/telescopic steer column, chrome bumper & grill, htd mirrors and eng block heater, painted ext sun visor, diff locks w/rear wheel lock ups, 100 gal alum fuel tank, etc
Options Included:
Program Remote control to include engine start/stop and variable engine RPM
Aluminum Stabilizer Pads (2x) with holders installed at rear and at front
1” steel draw plate with heavy duty hutch, air, electric and D ring connections
(2) x 36″ Aluminum storage box installed under deck.
Options at Extra Cost:
Hydraulic Oil Tank Heater
