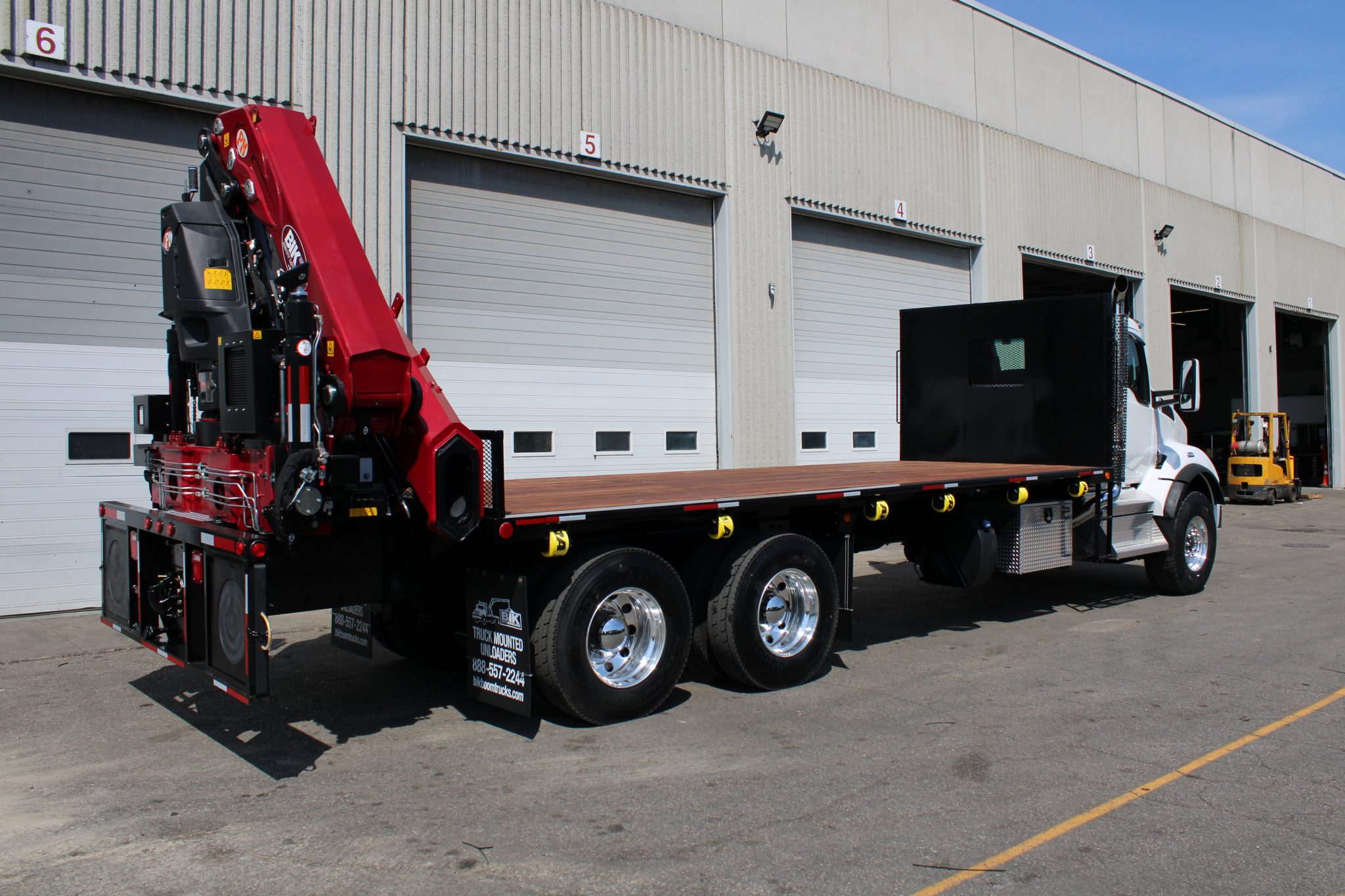

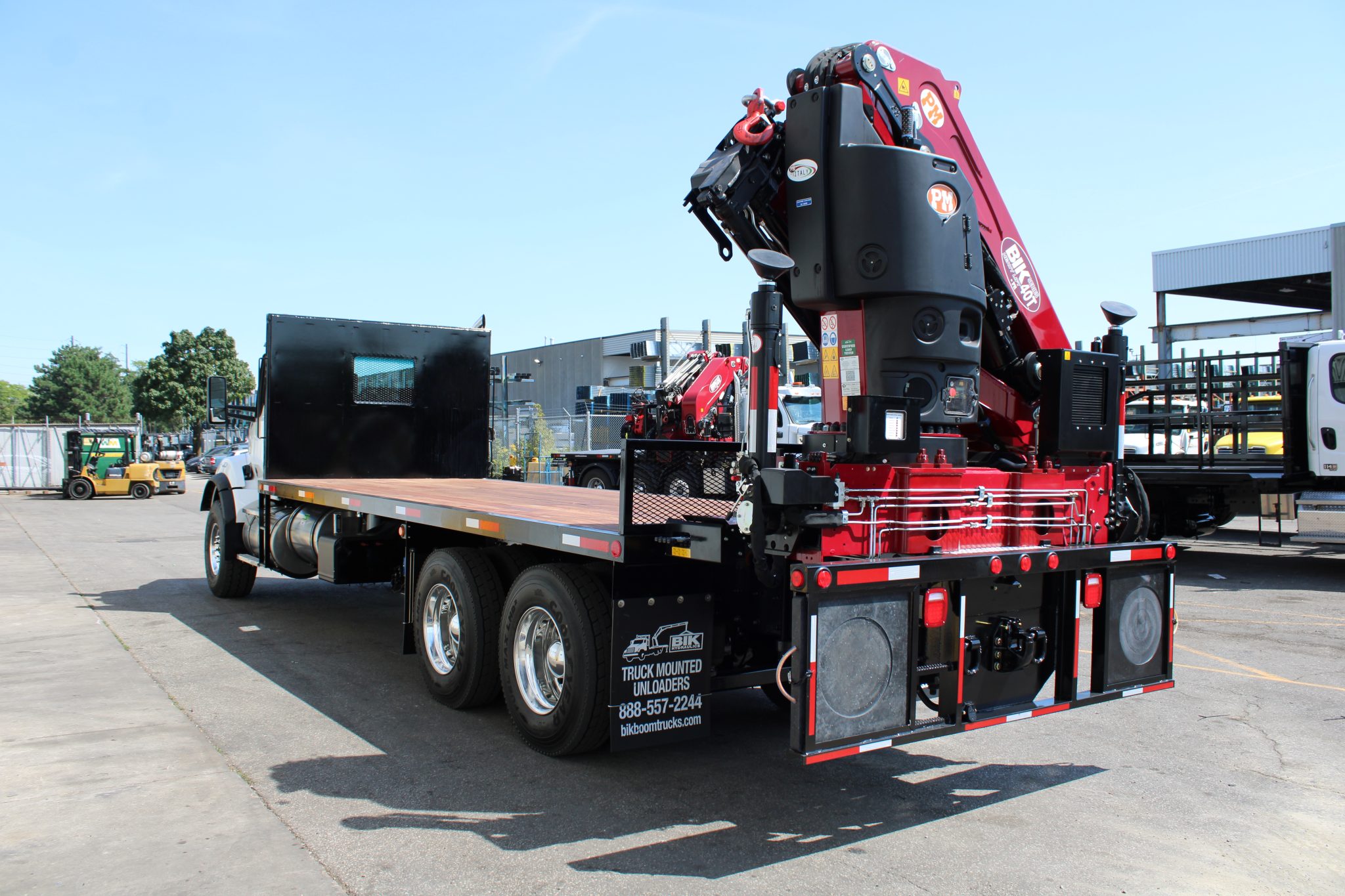

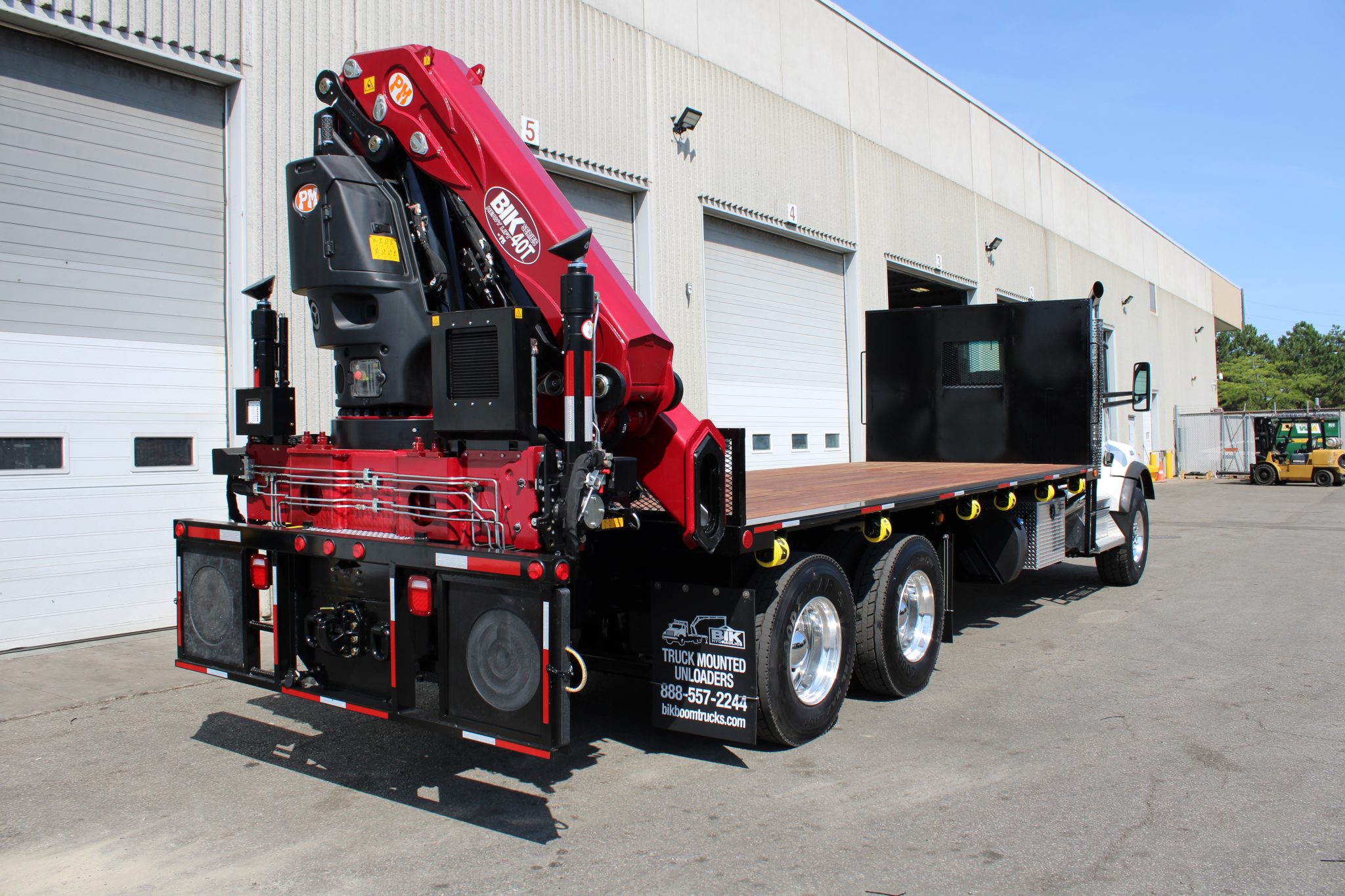

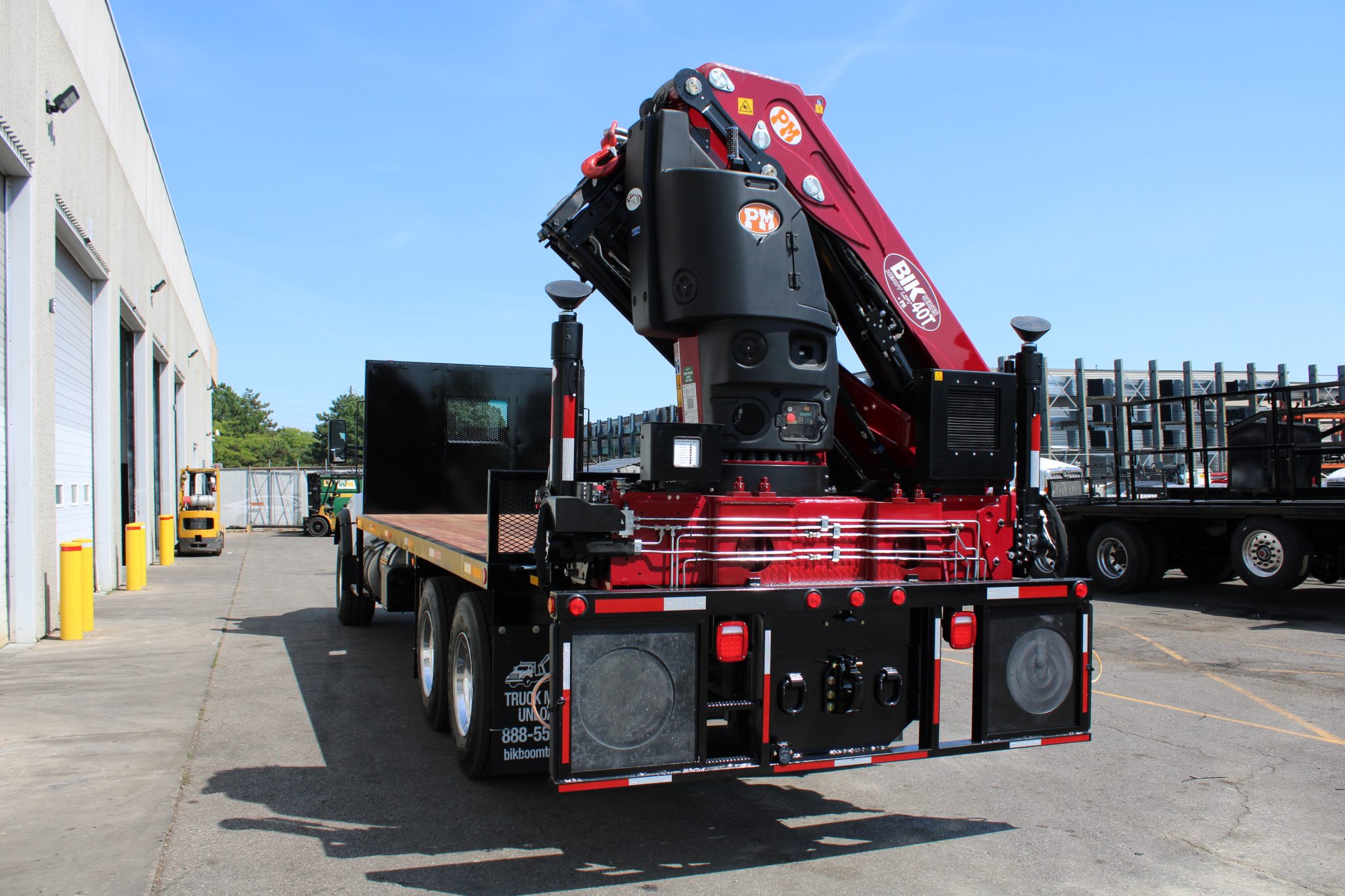

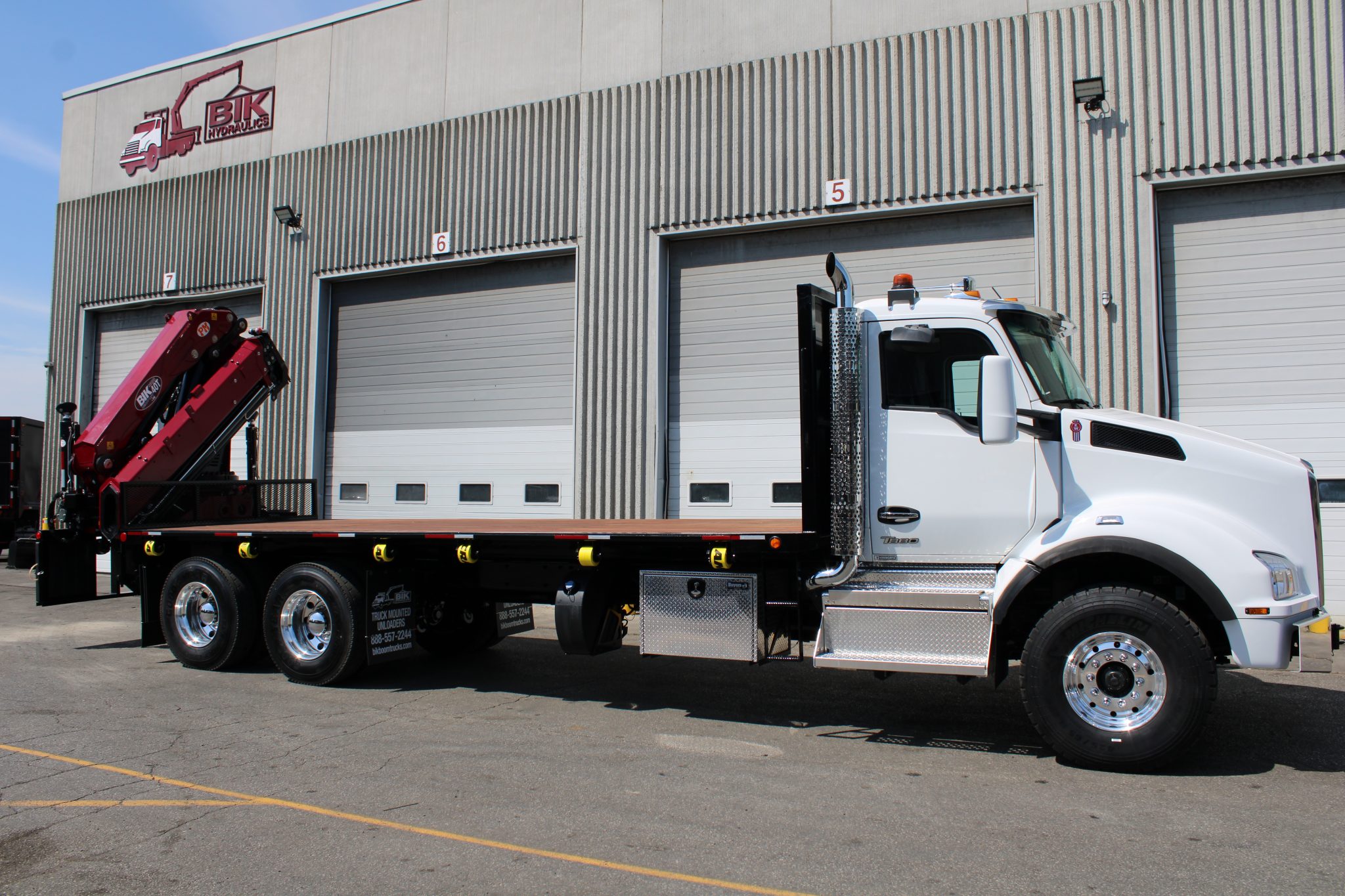

BIK HL‑40T heavy‑lift knuckle boom.

New – BIK “Heavy Lift” Series HL 40T
PM 40 ton/m – Knuckle Boom, 3 – Independent hyd extensions to 34’ horizontal reach (45’ vertical)
Horizontal Capacity
17,800 lbs @ 14.5′
12,200 lbs @ 20′
9,100 lbs @28′
7,150 lbs @ 34′
PLANETARY GEAR CONTINUOUS ROTATION – Superior Control & Turning Torque to 10 deg angle – low maintenance
Hydraulic Extra Wide Main outriggers at pedestal – 25’ 7” span
Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
DANFOSS Proportional Valve Controls – single sided operator control station
SCANRECO Radio Remote Control – electronically actuated controller, proportional precision and ultimate operator feel and control
Radio Remote includes: 5-micro speed reducing settings from handheld unit, emergency stop, 2-batteries with charger, 50’ back-up cord
Hydraulic OUT and Hydraulic DOWN 2-sided stabilizers w/ round foot pads welded to bottom of cylinder.
Simplified Hydraulics – Hyd overload LLD protection – Offers Simplicity, Reliability & low maintenance
Load Holding Valves on each cylinder for Safety and Security of Operator and Load

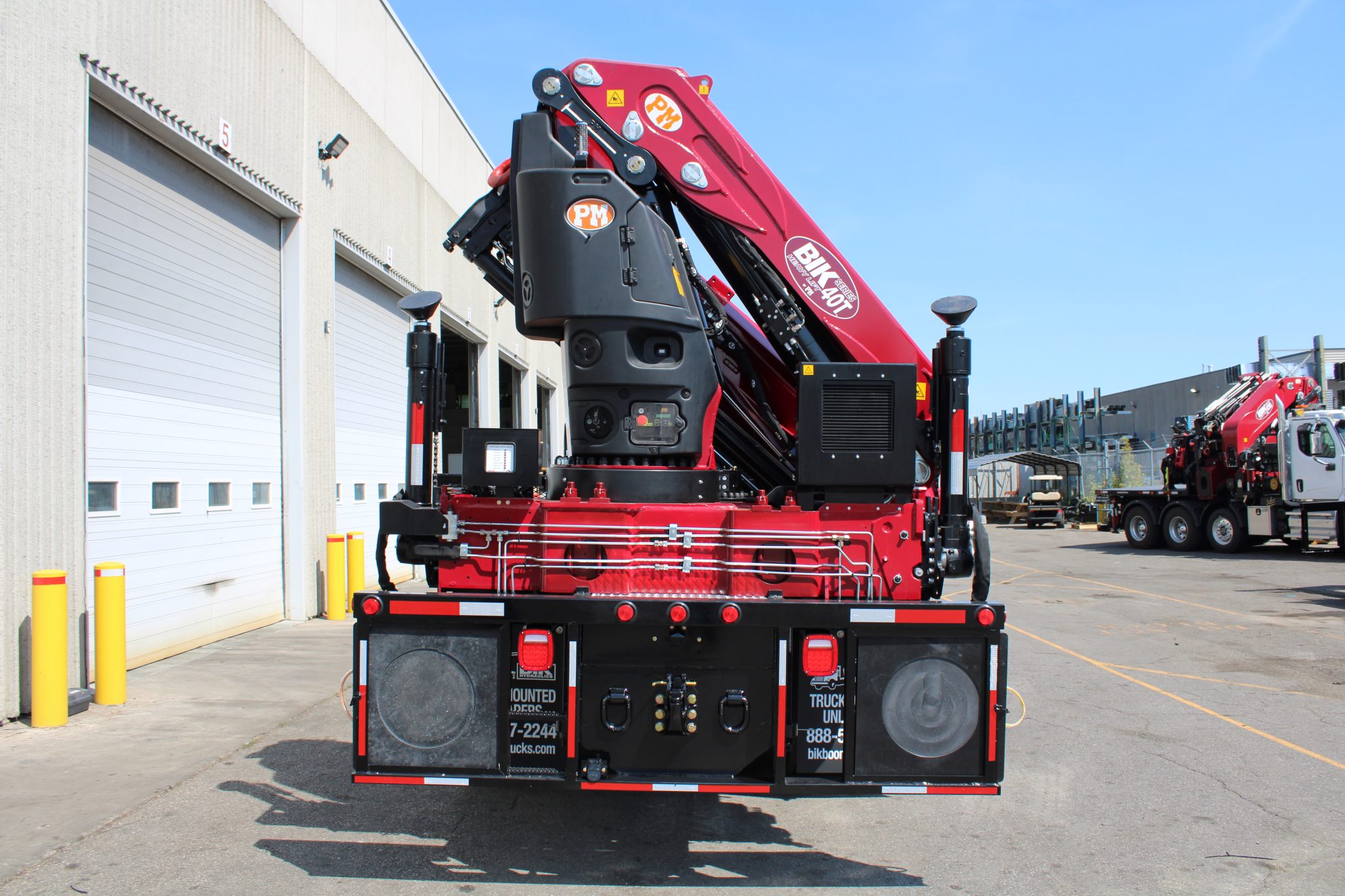

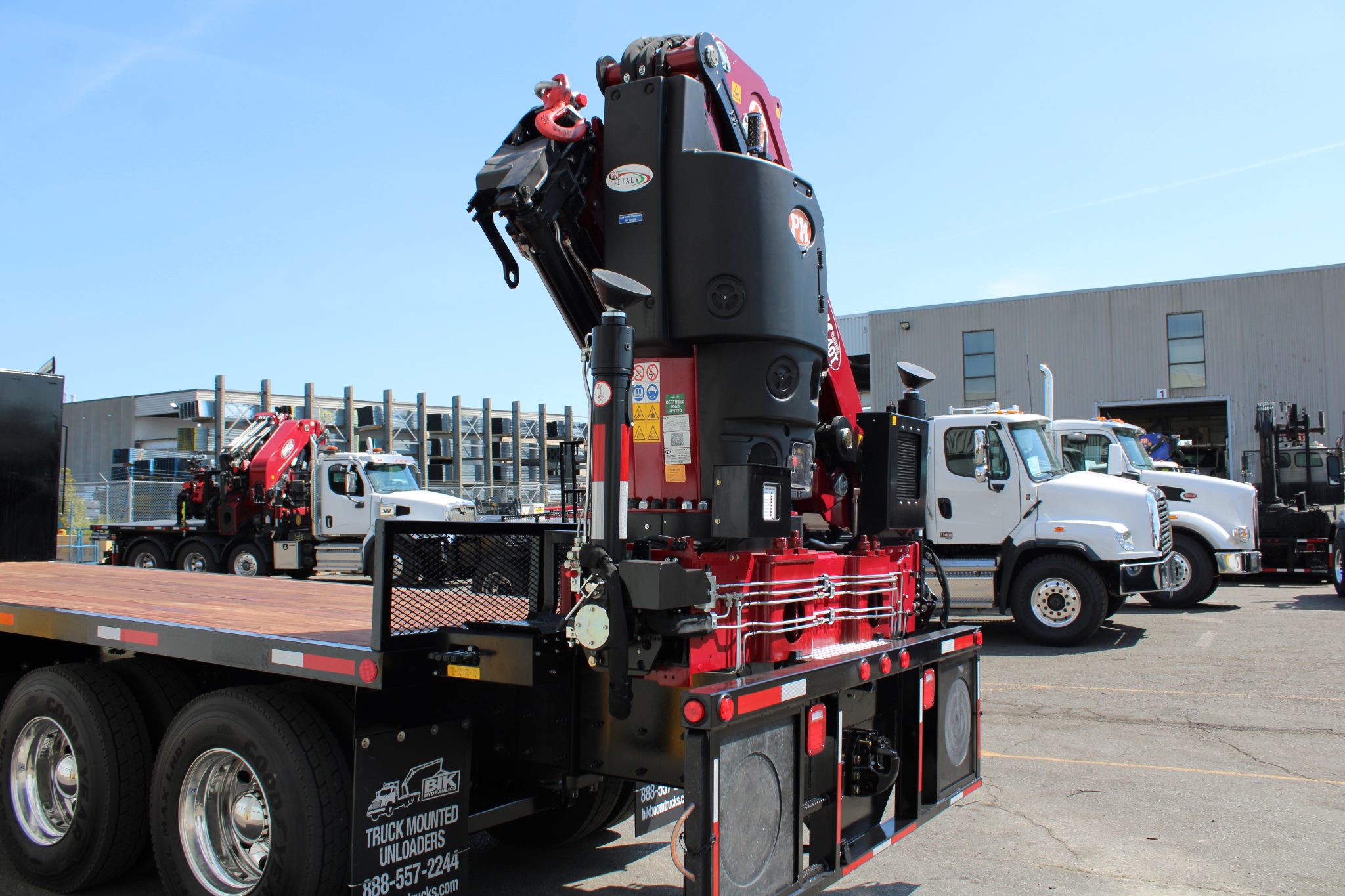

Heavy Duty Pedestal Turning Cylinders for greater turning torque, reduced wear, and improved precision

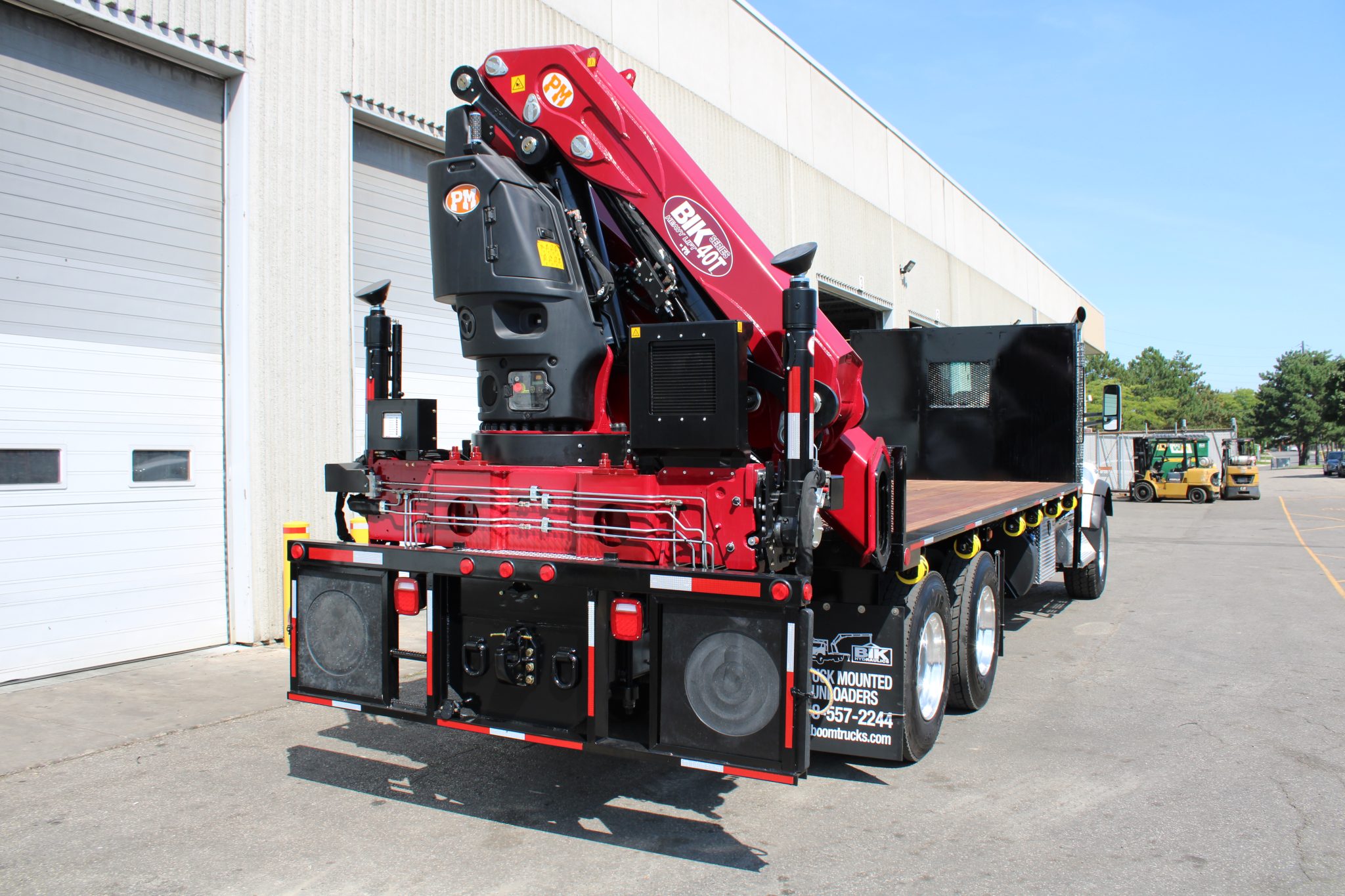

Load Tested & Installed at rear, with integral sub-frame to meet or exceed all CMVSS Standards

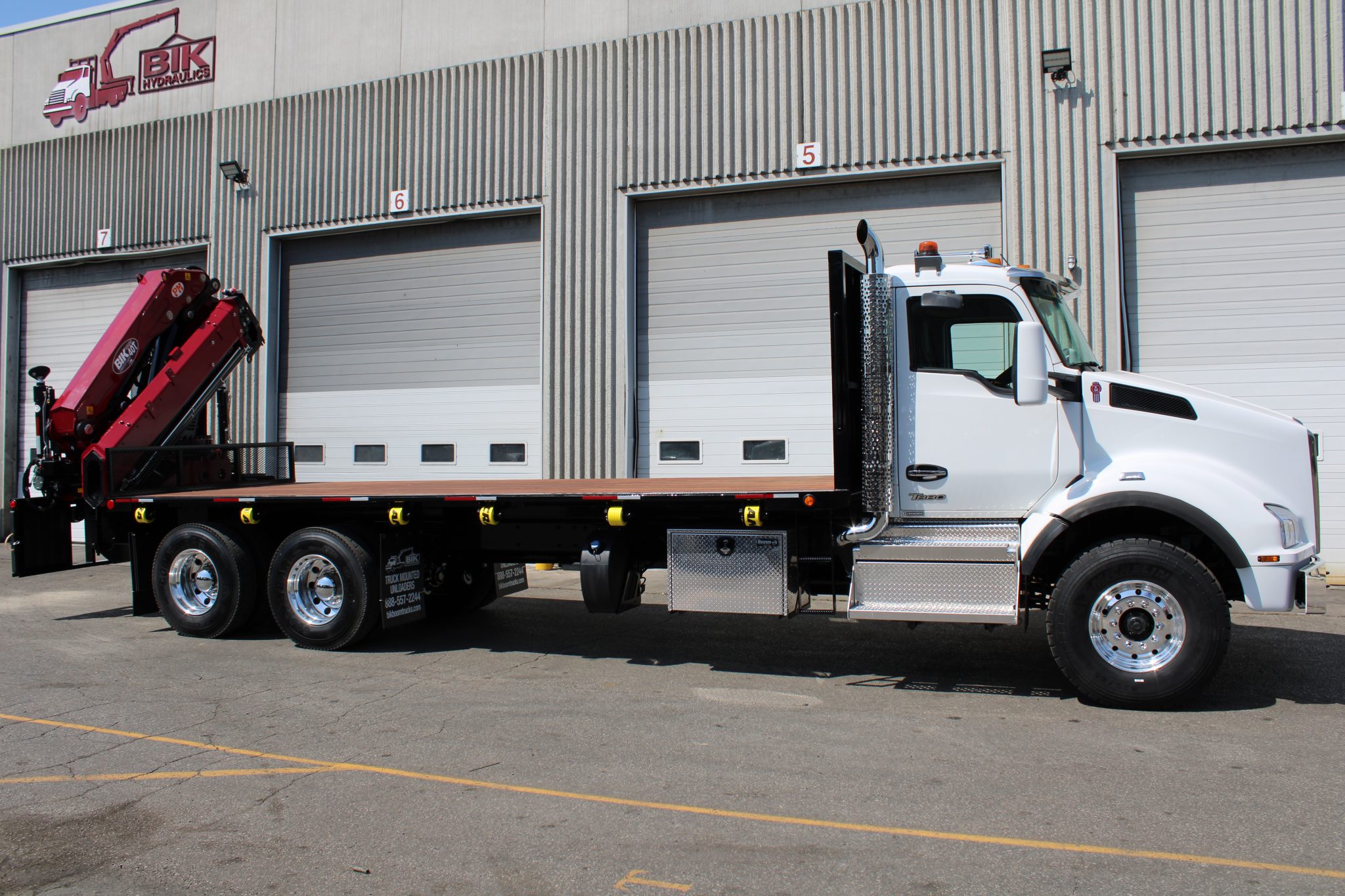

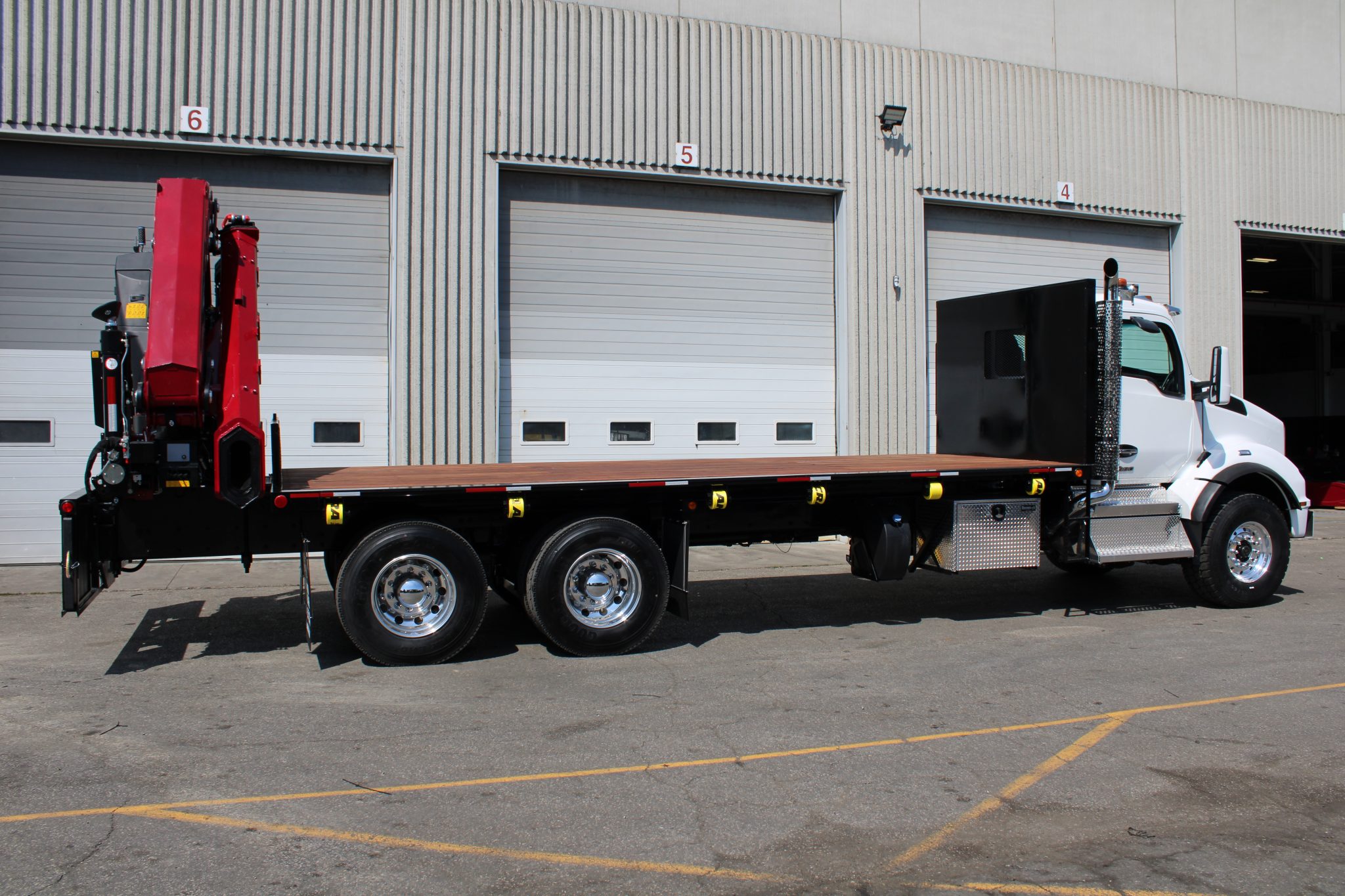

New – 21.5′ Long x 102″ Hardwood Deck
Installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom
Hardwood Deck surface
66” Headboard
Reverse Rail sliding track on passenger side
8 winches and straps (30’) with required Conspicuity and Reflectors. All steel painted Gloss Black.

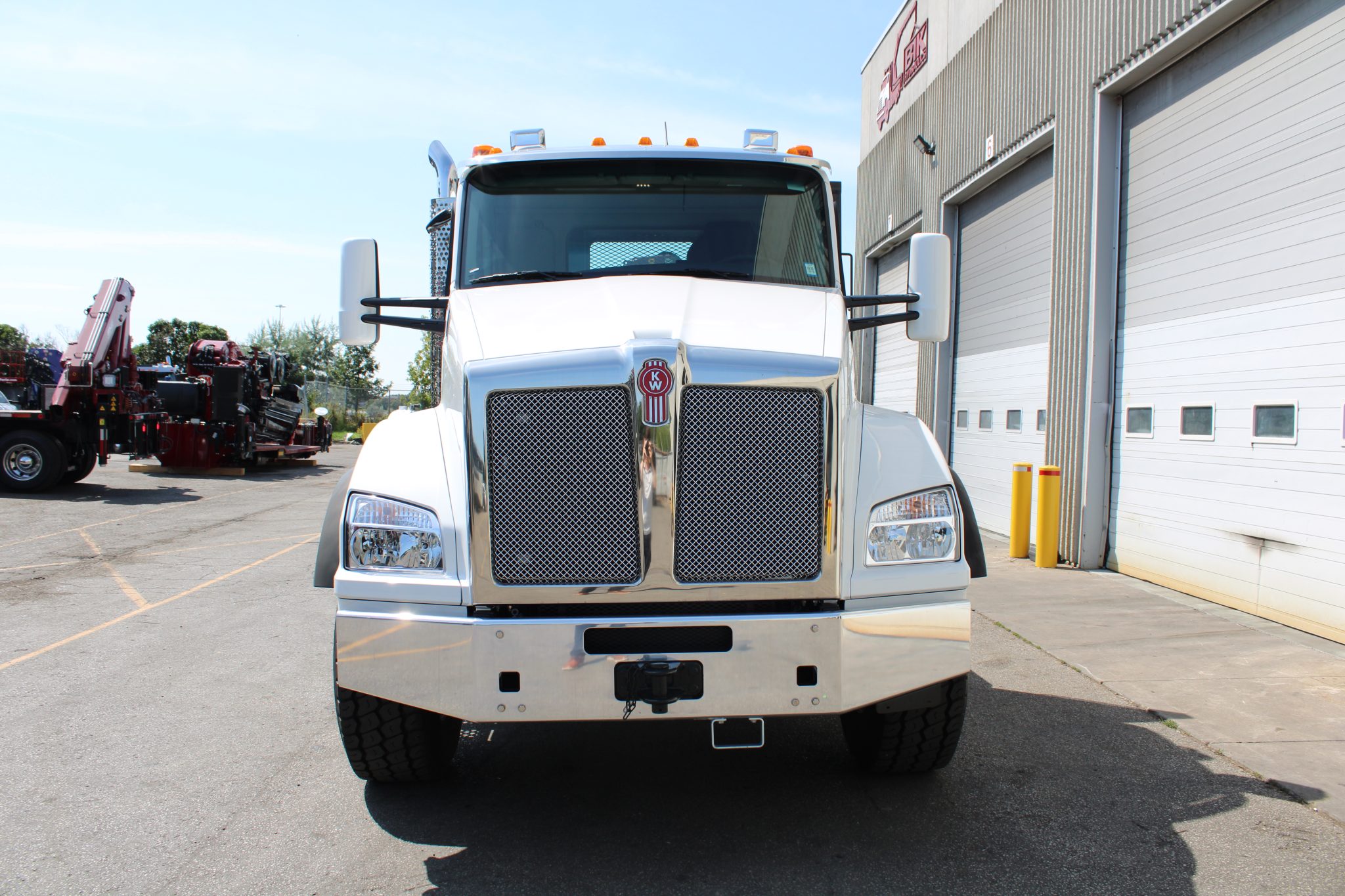

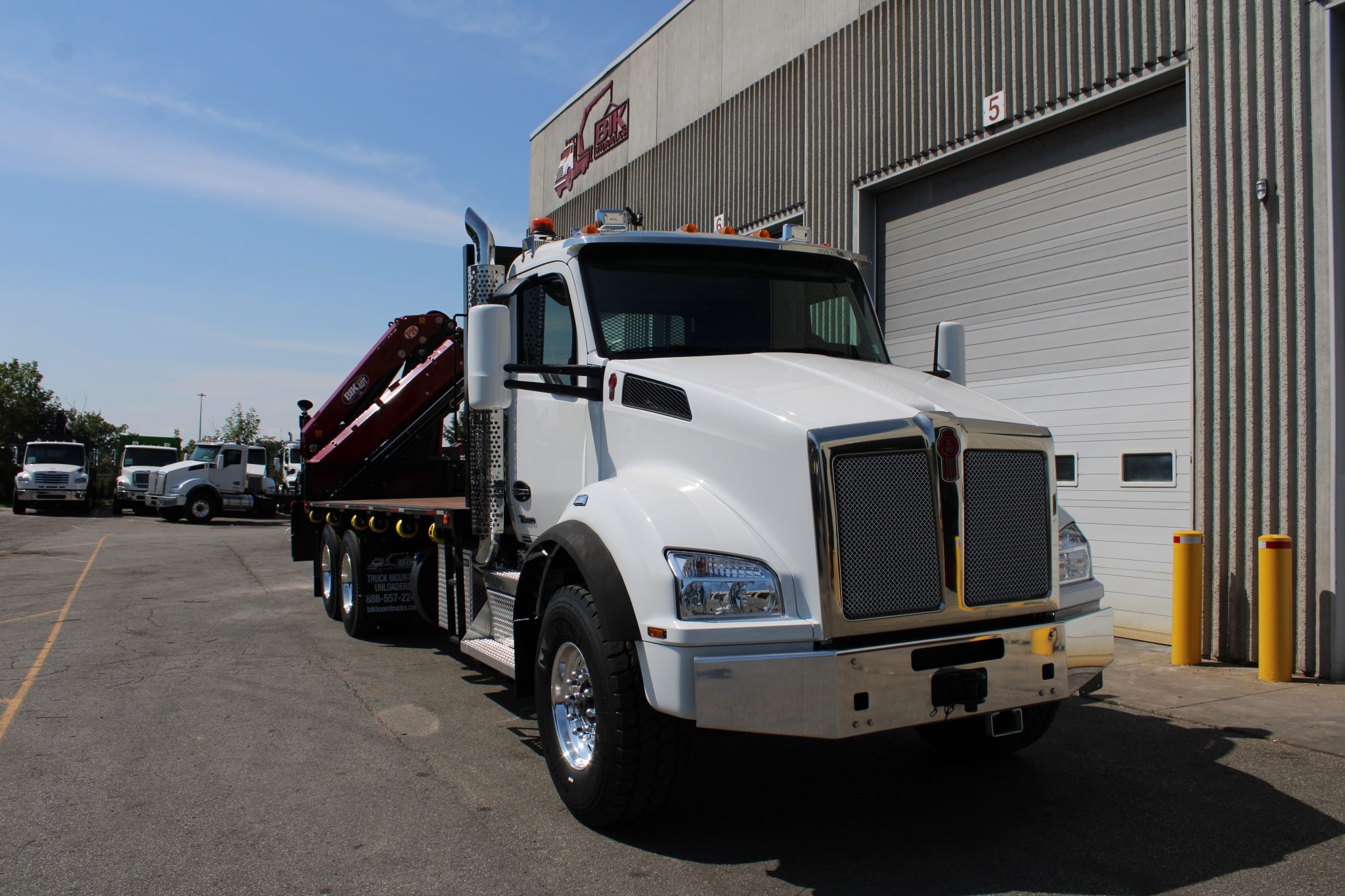

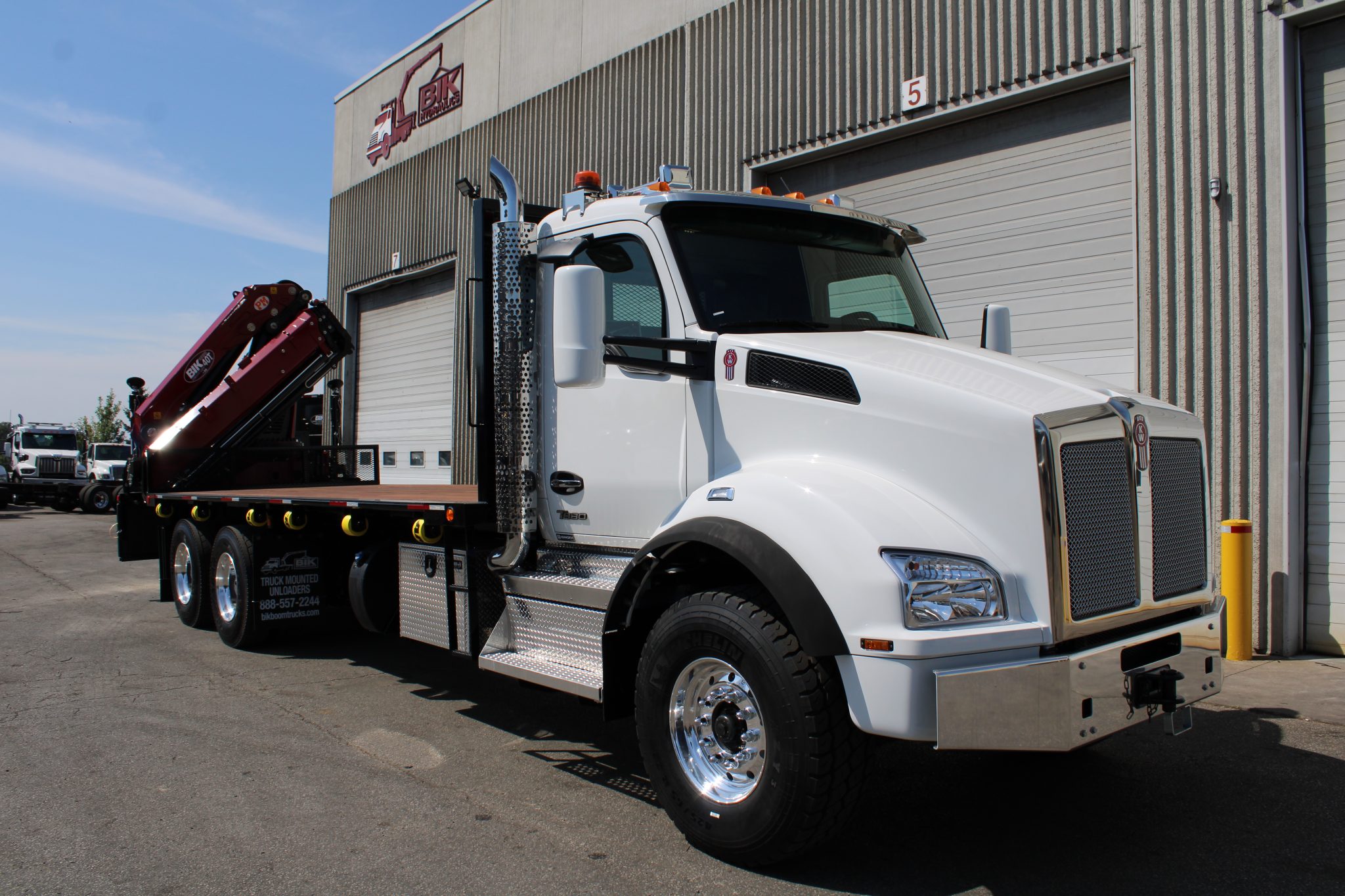

New – Kenworth T880 3- axle Truck – 70,000 lb GVWR
PACCAR 505 HP / 1,850 ft/lb torque
Eaton Ultrashift 18 spd AutoTrans
20,000 LB fronts with 425 / 65R22.5 tires
46,000 LB Rears on air ride
Double Frame, Polished ALCOA Alum Wheels front and rear
Chrome single polished Exhaust
Chromed Grille & Bumper
Single 100 gallon aluminum fuel tanks
Options including: Dual roof mounted strobe lights, A/C, Tilt/Telescopic steering, AM/FM/CD player , Jake Brake, air driver’s seat, fixed passenger seat, cruise, heated mirrors, painted sun visor, All-way inter-axle and diff lock-ups, Cab Painted White, Air ride cab, full differential locks, trailer air tow package, etc…
Also Included Are:
(2) pcs – Aluminum stabilizer pads with holders at rear
Program radio remote control for engine stop/start and truck shut off
1” drawplate installed at rear w/Heavy duty pintle hook
1- Alum box installed under deck
