Boom Details

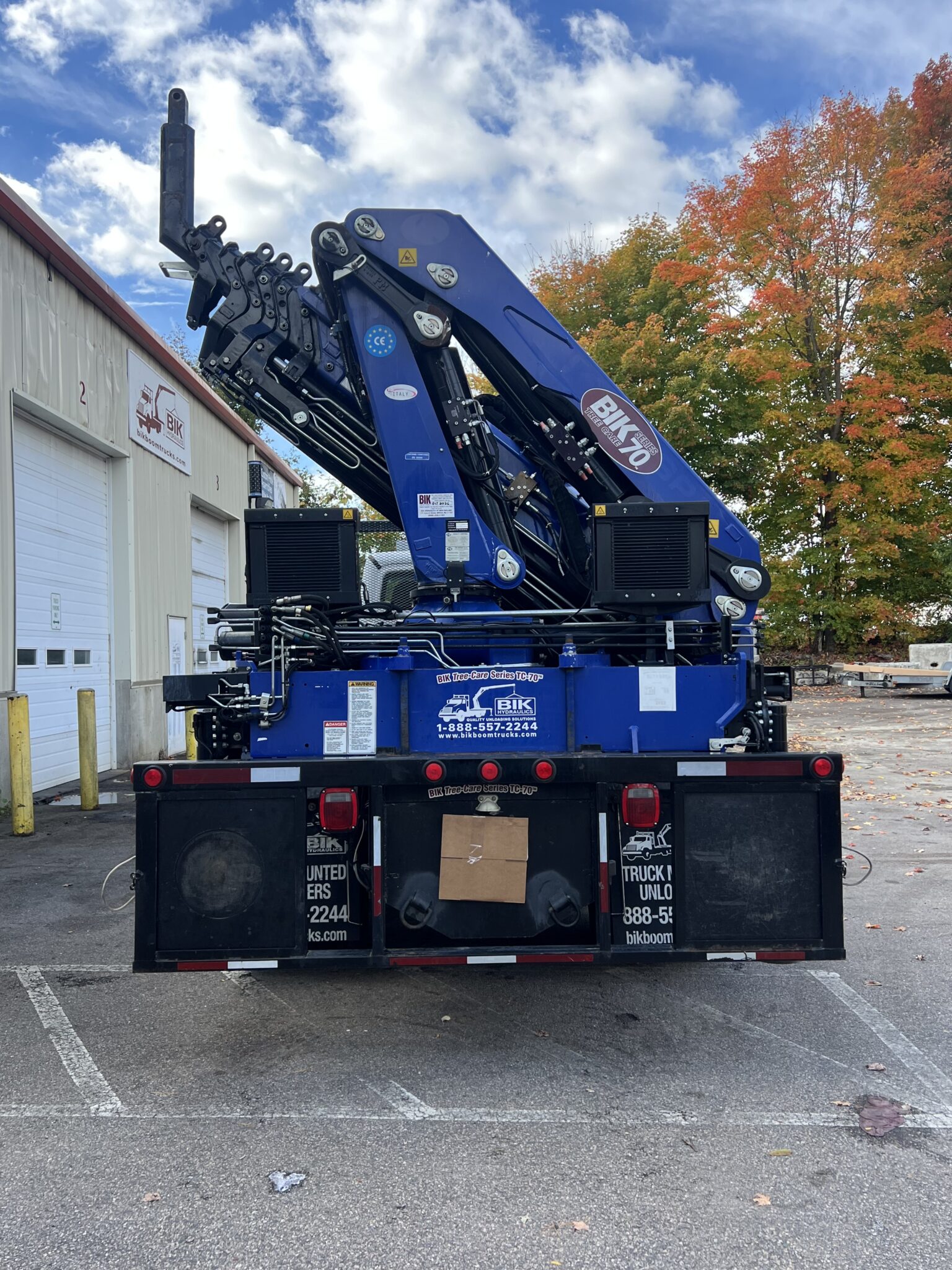

New – BIK Tree-Care Series TC-106/112 – 65 ton/m Knuckle Boom: 6 ext Knuckle Boom w/Detachable 5 ext jib + 1-grapple extension
Including (1) Grapple extension in jib, Boom Capacity of 2,100 lbs @ 106’ Vertical Reach
- Main Boom Horizontal Capacity:
- 48,500lbs @ 8’ 2”
- 28,260lbs @ 14’ 5”
- 5,340lbs @ 25’ 3”
- 10,000lbs @ 37’
- 7,210lbs @ 50’ 2”
- Jib Horizontal Capacity:
- 3,850lbs @ 59’ 1”
- 3,000lbs @ 74’ 6”
- 2,340lbs @ 81’ 1”
- 2,100lbs @ 87’
- Grapple extension to 94′
- PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation.
- 180-degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span
- 360-degree full load chart stability with Single Front Bumper Stabilizer and rear aux Hyd out & Down type – 21’ span
- Two Hyd Oil Coolers, high pressure return filter and min. 100–gallon hyd aluminum oil tank with gate valves mounted at front under deck
- 7 – Section DANFOSS Proportional Control Valve at Top-Seat with Ladder Access – & SCANRECO Proportional Radio Remote Control
- Power Tronic onboard load & function monitoring system, Digital Load Indicator at top seat & remote, electric/hyd overload protection
- Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
- Installed behind cab, with integral sub-frame, 3/8” front and center -½” sheer plating at crane for maximized torsion strength
- Warranty: 1-Yr. part & labor on the entire boom, 3-Yr. on Structural Components – Engineer Stability load tested and certified
- BIK tech to familiarize boom and grapple saw operation at your location and (or) on site for approx. 2 -3 days
Deck Details
New – 11’ x 102” Steel Checker Plate Flat Deck:
- Checker plate steel deck surface
- 48” headboard
- sliding winch straps
- Rub rail & pockets on side
- dual sided access ladders
- primed & painted gloss black.
Truck Details

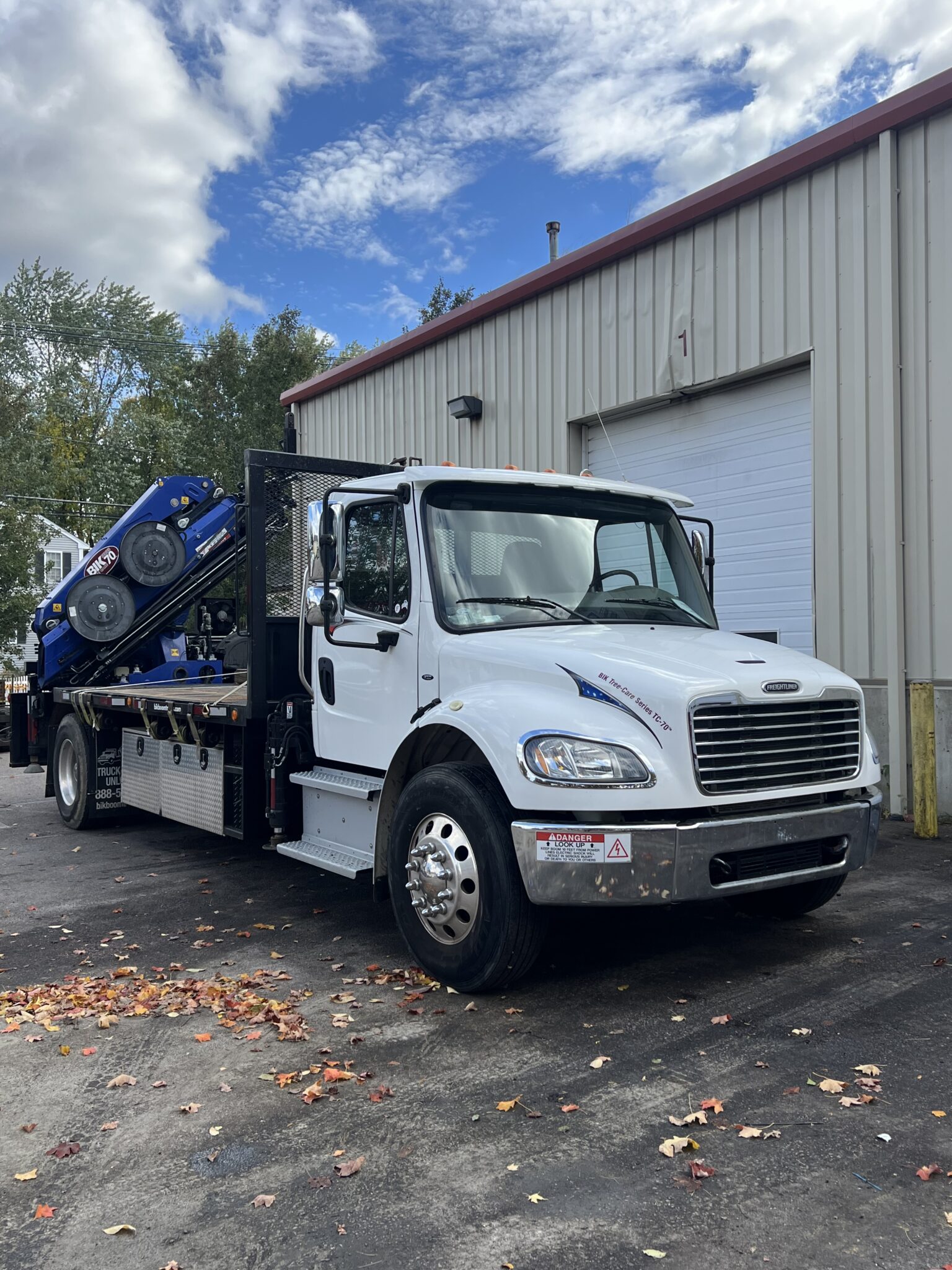

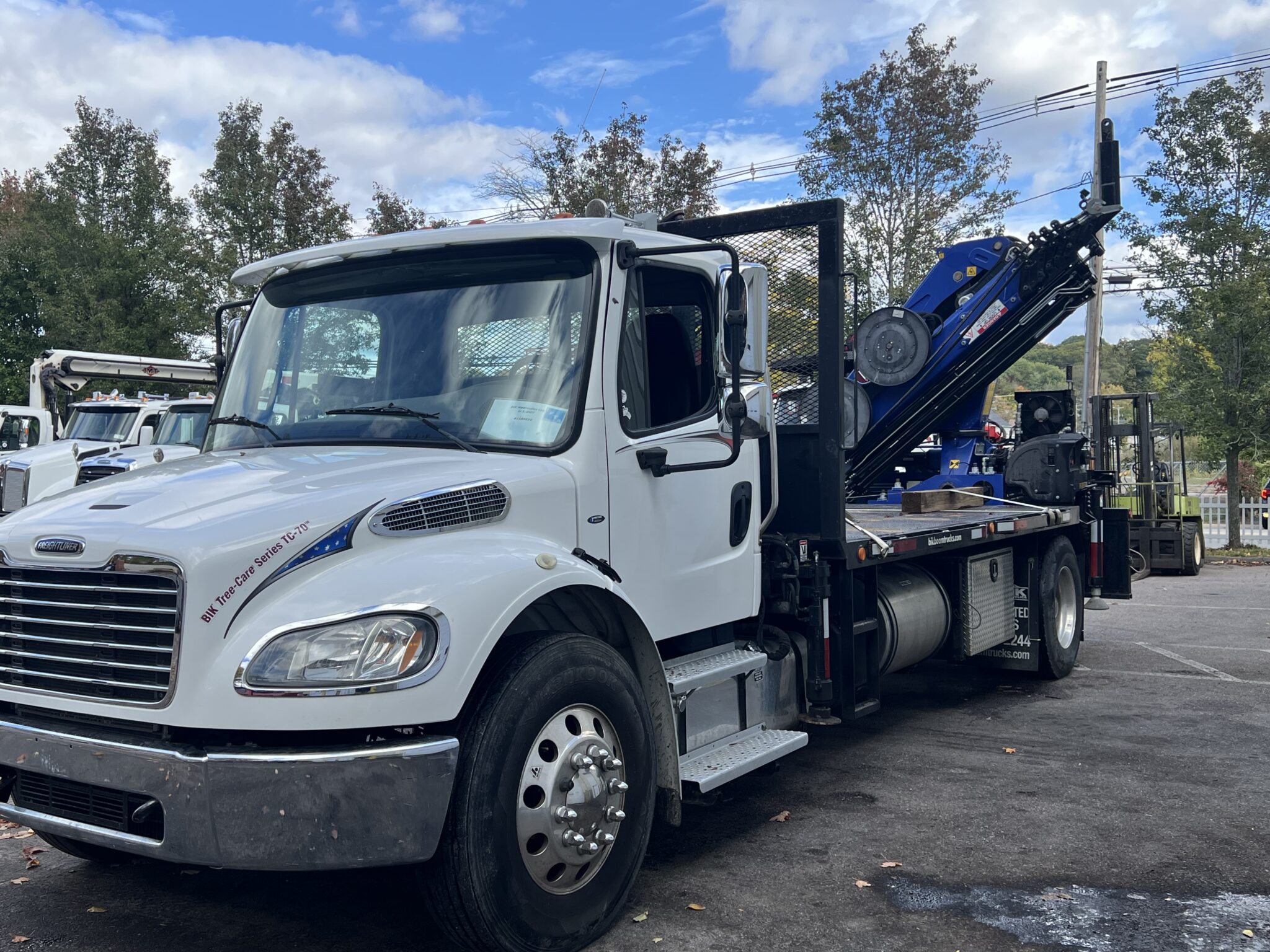

New – Freightliner 114SD 4-axle Day Cab Truck:
- Truck cab White
- 75,000 lb GVWR
- Detroit DD-13 Diesel – 450 HP – Jake Brake
- Eaton Ultrashift Plus Automated 18 spd trans.
- 20,000 LB fronts with 425 / 65R22.5 tires on Aluminum Rims
- 46,000 LB Rears on Tuftrac suspension with 11R22.5 tires on Aluminum outer rims
- 9,000 lb self-steer tag axle behind t/a with 17.5” tires/alum rims
- Double Frame with integral front bumper frame extension (for front stabilizer)
- Chromed Grille & Bumper
- single 80 gallon alum fuel tank

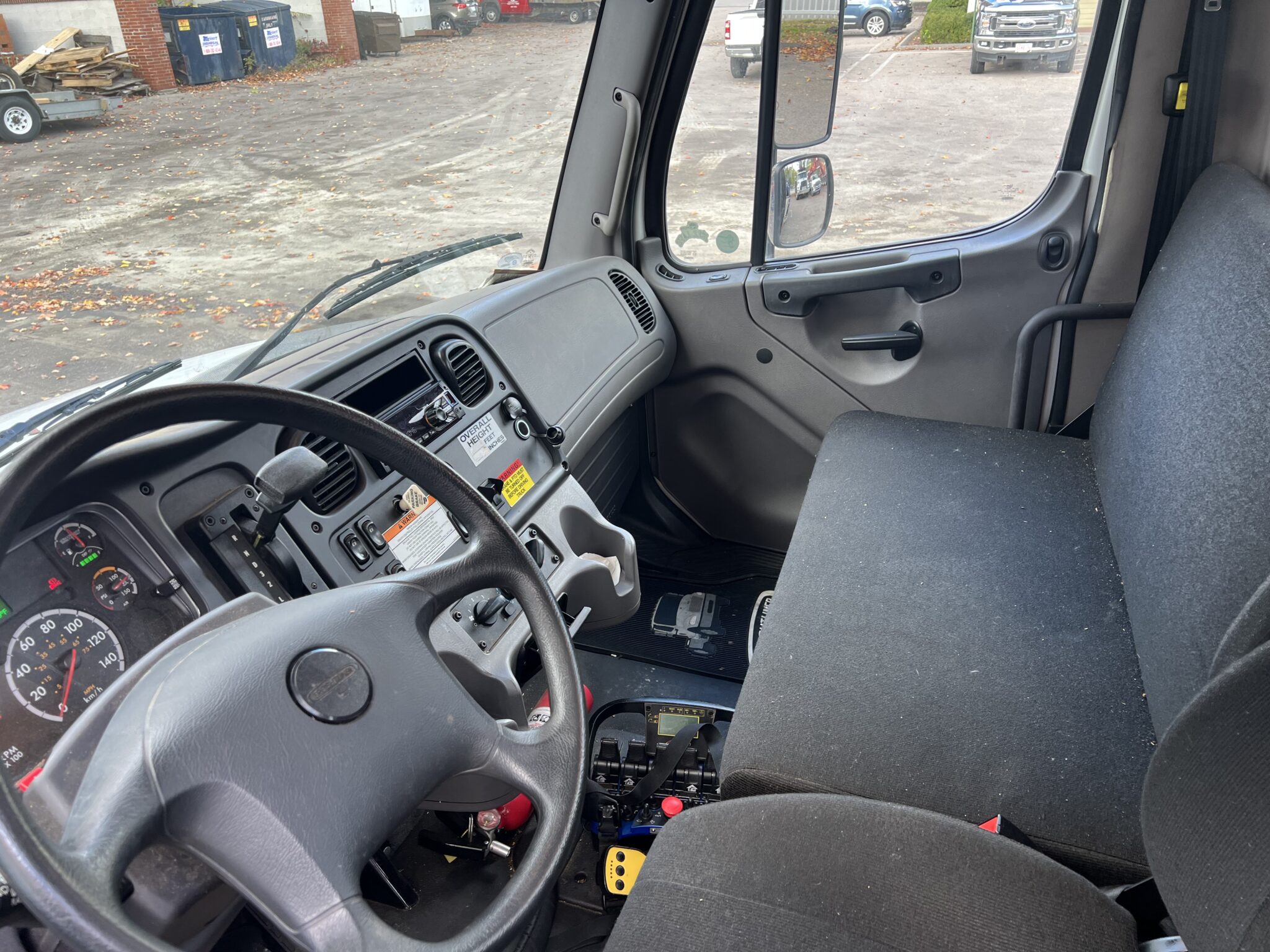

- Loaded with Options Including: A/C, Tilt/Telescopic steering, AM/FM radio with Bluetooth, power windows & locks, air high back driver’s seat, cruise, heated mirrors, inter-axle and diff lock-ups, Cab White, Air ride cab, full differential locks, exterior sun visor, etc…
Options Included:
- (5) pcs – 2” PVC stab pads w/holders, – (1) pc 24” storage box installed near front
- Custom reinforced manual extension for grapple
- New Mecanil SG-220 Grapple saw with spare parts
- Back of Cab mounted Mat Rack
- Drawplate with reese type pintle hook receiver with electric trailer brake actuator installed
- 2 to 3 day on site boom feature/function familiarization by a BIK
Additional option
- TC-112 Version – Additional Hydraulic Boom Extension to 112’
